NCP13L-AHMRKK (2003)
Toyota Echo
Production
Jun 2003
-
Aug 2005
Engine
1NZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0306- )

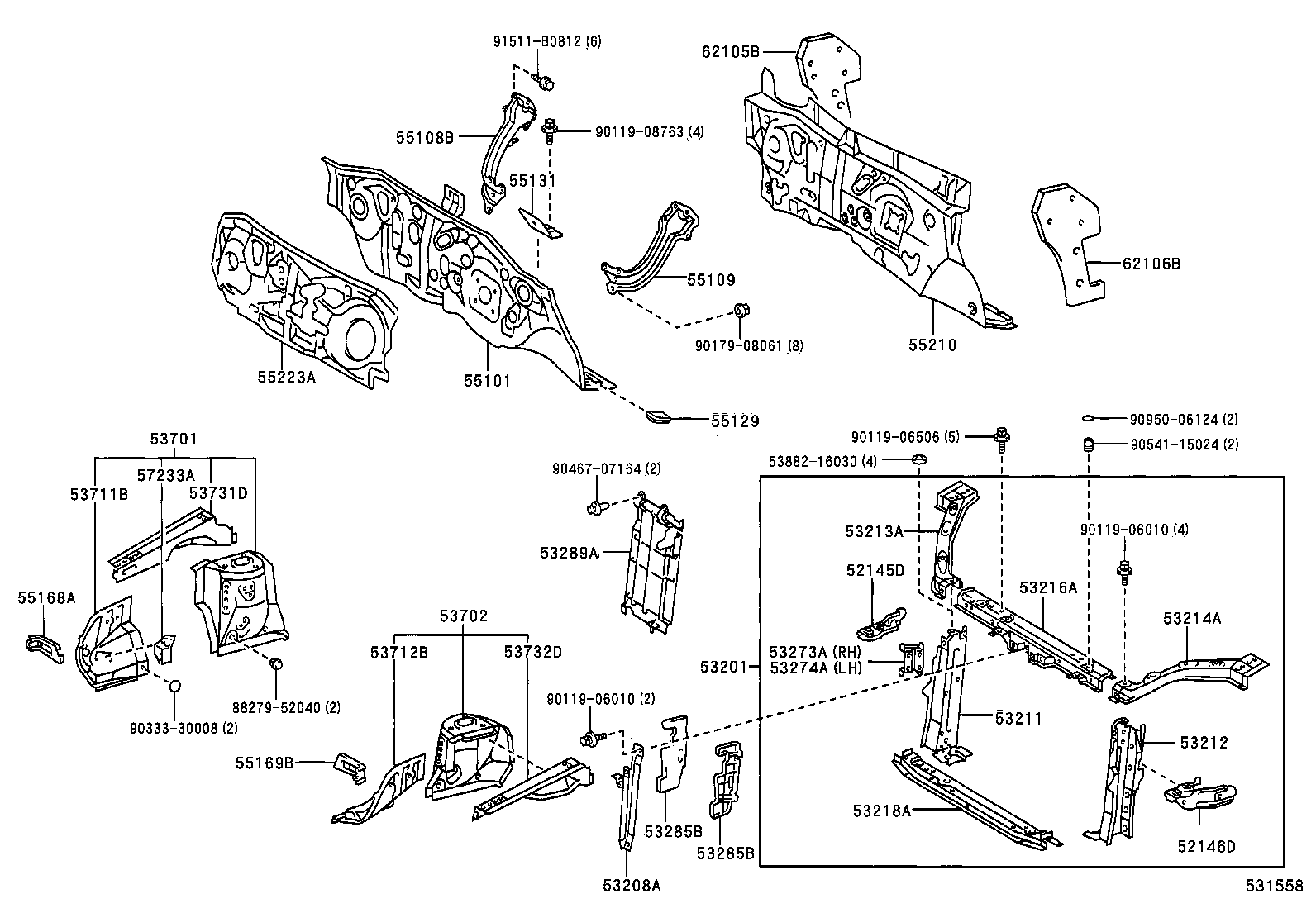

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-52010 |
NCP13 |
1 | ||
| 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-52010 |
NCP13 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-52010 |
NCP13 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-52011 |
NCP13 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-52010 |
NCP13 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-52010 |
NCP13 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-52010 |
NCP13 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-52010 |
NCP13 |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-52010 |
NCP13 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-52010 |
NCP13 |
1 | ||
| 53273A - REINFORCEMENT, RADIATOR SUPPORT, RH | ||||
| 53273-52010 |
NCP13 |
1 | ||
| 53274A - REINFORCEMENT, RADIATOR SUPPORT, LH | ||||
| 53273-52010 |
NCP13 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-52150 |
NCP13 |
2 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-52150 |
NCP13 |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-52010 |
NCP13 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52907 |
NCP13 |
1 | ||
| 53701-52900 |
NCP13 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52900 |
NCP13 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-52010 |
NCP13 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-52010 |
NCP13 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-52010 |
NCP13 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-52010 |
NCP13 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52091 |
NCP13..MTM |
1 | ||
| 55108B - BRACE SUB-ASSY, DASH TO FRAME, RH | ||||
| 55108-52070 |
NCP13 |
1 | ||
| 55109 - BRACE SUB-ASSY, DASH TO FRAME, LH | ||||
| 55109-52020 |
NCP13 |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-52010 |
NCP13 RH |
1 | ||
| 55129-52020 |
NCP13 LH |
1 | ||
| 55131 - REINFORCEMENT, DASH PANEL | ||||
| 55132-52020 |
NCP13 |
2 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52010 |
NCP13 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52010 |
NCP13 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52022 |
NCP13 |
1 | ||
| 55210-52023 |
NCP13 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52020 |
NCP13 |
1 | ||
| 57233A - RETAINER, ENGINE FRONT SUPPORT, RH | ||||
| 57233-52011 |
NCP13 |
1 | ||
| 62105B - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-52010 |
NCP13 |
1 | ||
| 62105-52011 |
NCP13 |
1 | ||
| 62106B - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-52011 |
NCP13 |
1 | ||
| 62106-52010 |
NCP13 |
1 | ||
| Common parts | ||||
| 53882-16030 | ||||
| 88279-52040 | ||||
| 90119-06010 | ||||
| 90119-06506 | ||||
| 90119-08763 | ||||
| 90179-08061 | ||||
| 90333-30008 | ||||
| 90467-07164 | ||||
| 90541-15024 | ||||
| 90950-06124 | ||||
| 91511-B0812 | ||||
