NCP13L-AHMRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

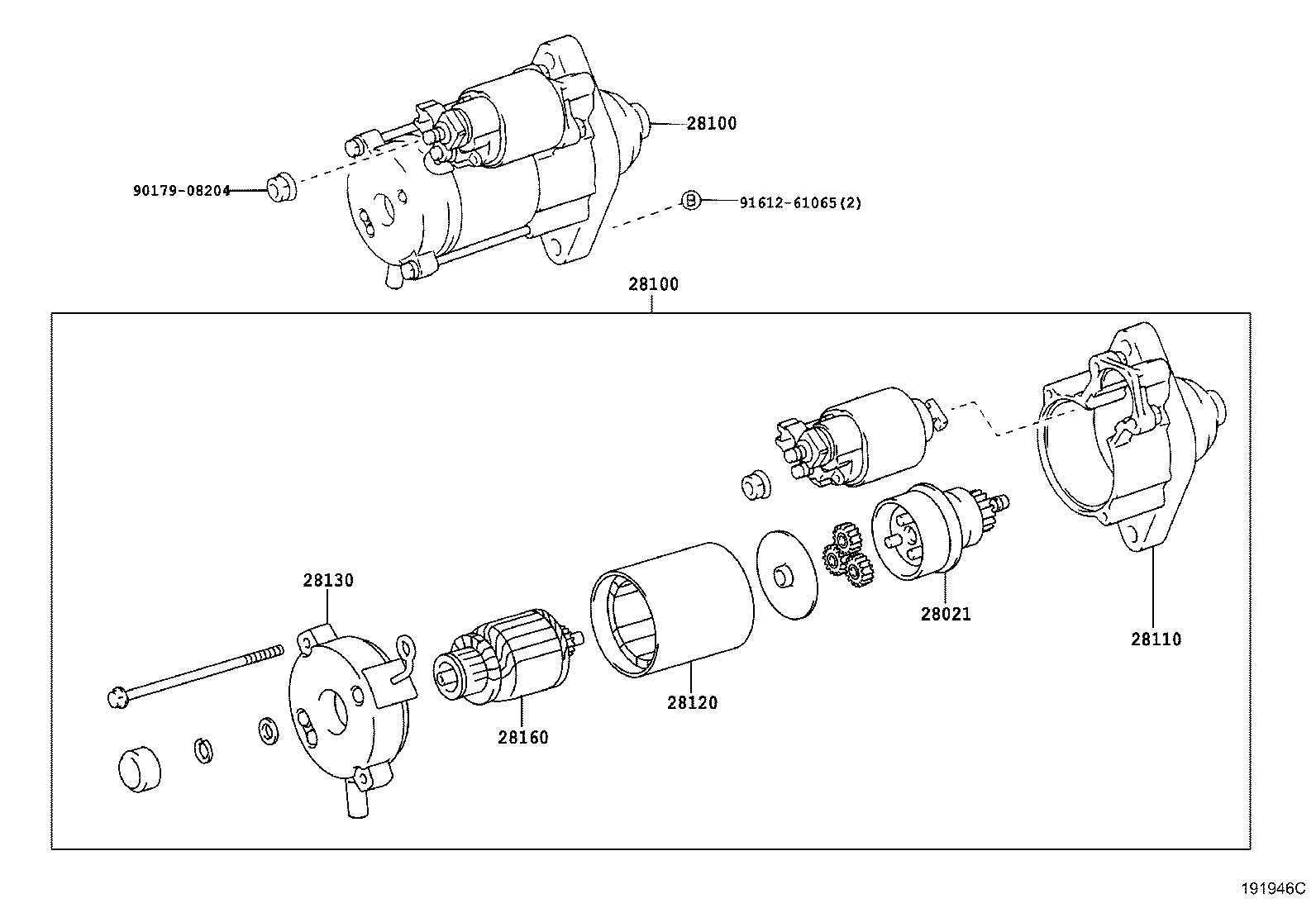

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28100 28110 28120 28130 28160 9017908204 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060

1NZFE..NCP13

 1
28100 - STARTER ASSY
28100-21062

1NZFE..NCP13

12V 1.6KW

 1
28100 - STARTER ASSY
28100-21062

1NZFE..NCP13

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-21061

1NZFE..NCP13

 1
28120 - YOKE ASSY, STARTER
28120-28040

1NZFE..NCP13

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21061

1NZFE..NCP13

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

1NZFE..NCP13

 1
Common parts
90179-08204
91612-61065
