NCP13L-AHMRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

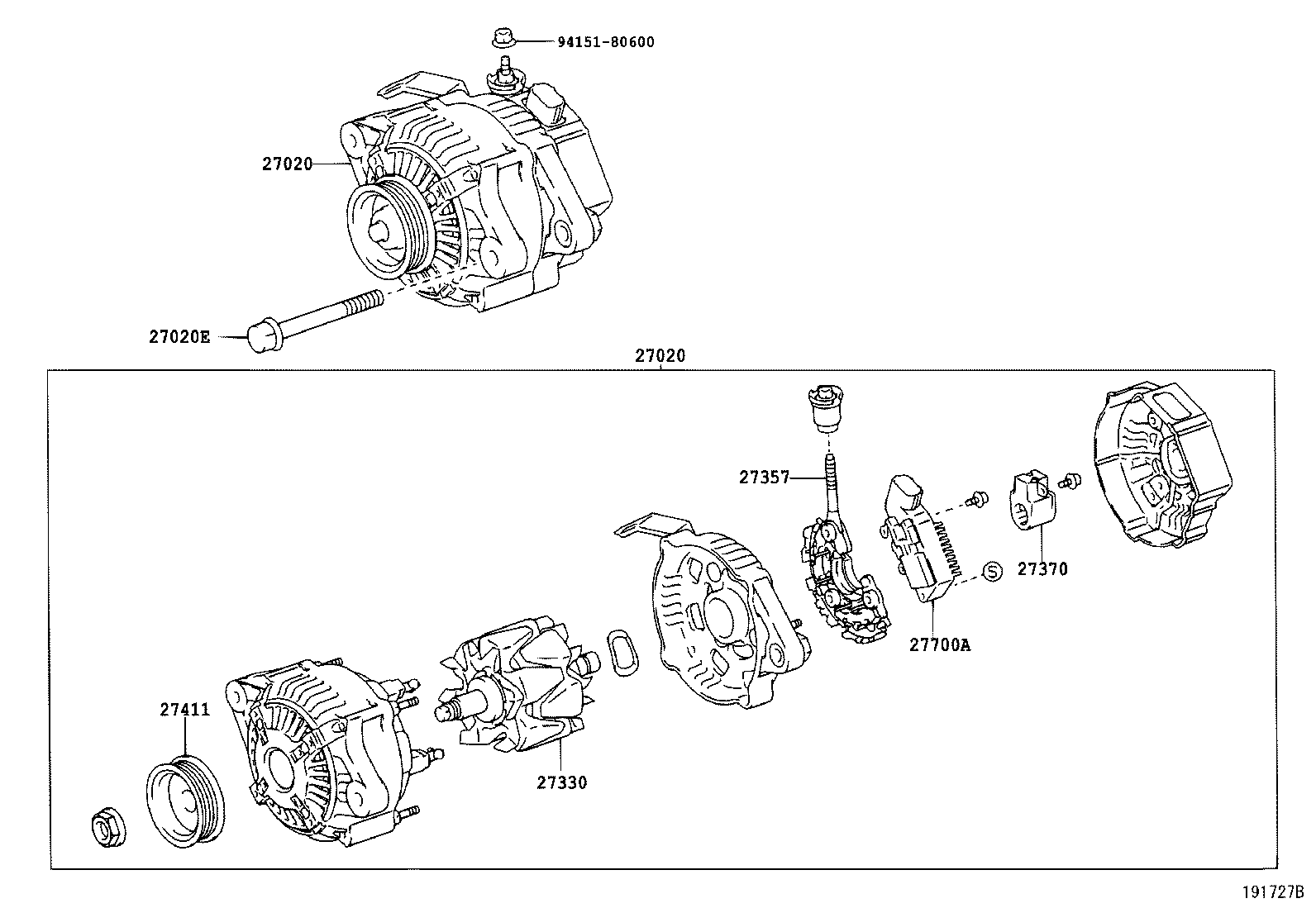

Click highlighted areas on diagram

12V 90A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-21031

1NZFE..NCP13

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-21031

1NZFE..NCP13

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1NZFE..NCP13

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16390

1NZFE..NCP13

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22050

1NZFE..NCP13

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1NZFE..NCP13

 1
27411 - PULLEY, ALTERNATOR
27411-21030

1NZFE..NCP13

 1
27700A - REGULATOR ASSY, GENERATOR
27700-21010

1NZFE..NCP13

 1
Common parts
94151-80600
