NCP13L-AGPRKK (2003)
Toyota Echo
Production
Jun 2003
-
Aug 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0306- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

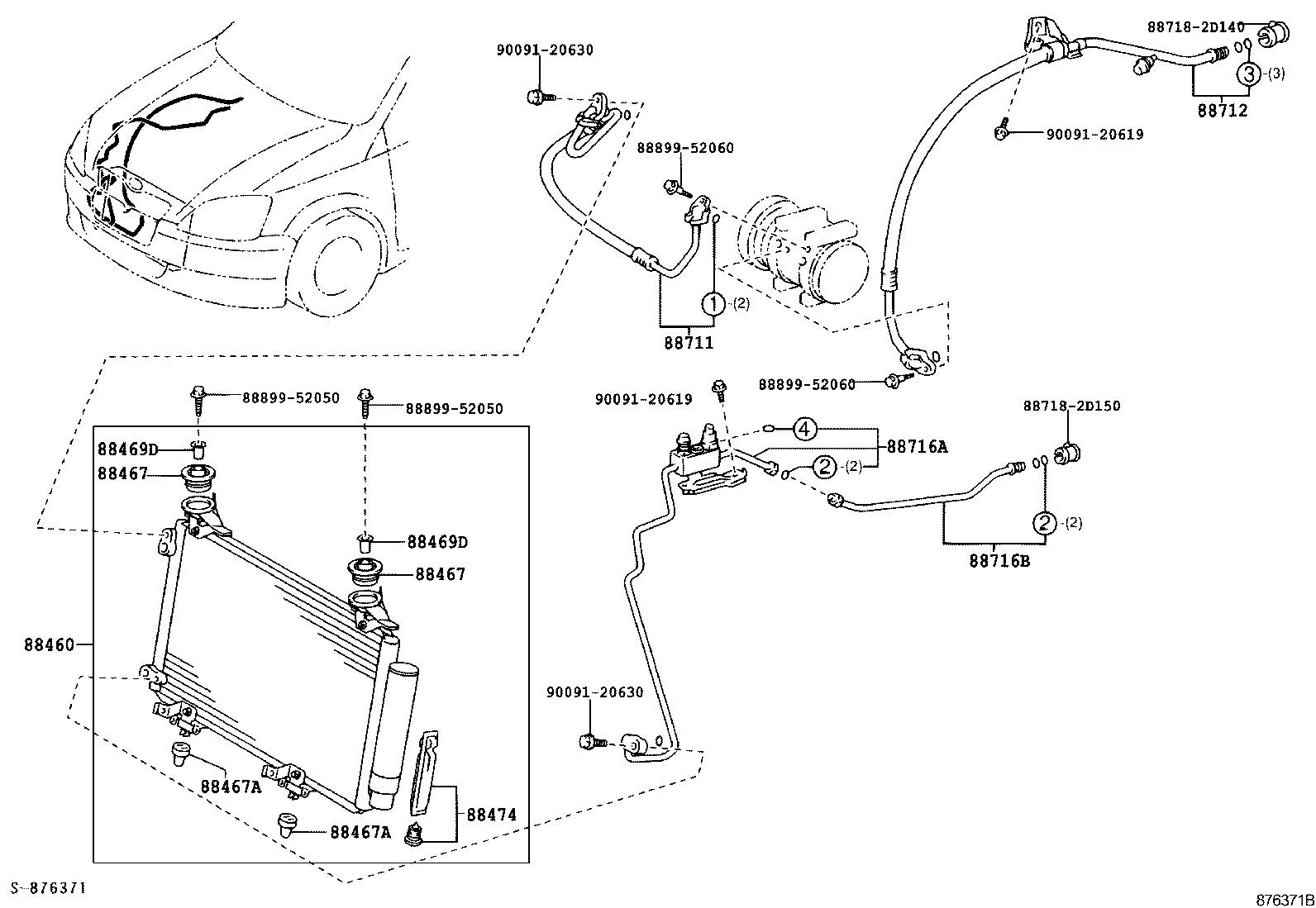

ILLUST NO. 1 OF 2(0306- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-52141 |
NCP13 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP13 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP13 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP13 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP13 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP13 |
2 | ||
| 88469-52010 |
NCP13 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP13 |
2 | ||
| 88469-52010 |
NCP13 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP13 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP13 |
1 | ||
| 88711-52021 |
NCP13 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88704-52060 |
NCP13 |
1 | ||
| 88704-52060 |
NCP13 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-52310 |
NCP13 |
1 | ||
| 88706-52310 |
NCP13 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52380 |
NCP13 |
1 | ||
| 88716-52380 |
NCP13 |
1 | ||
| Common parts | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
