NCP13L-AGPRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

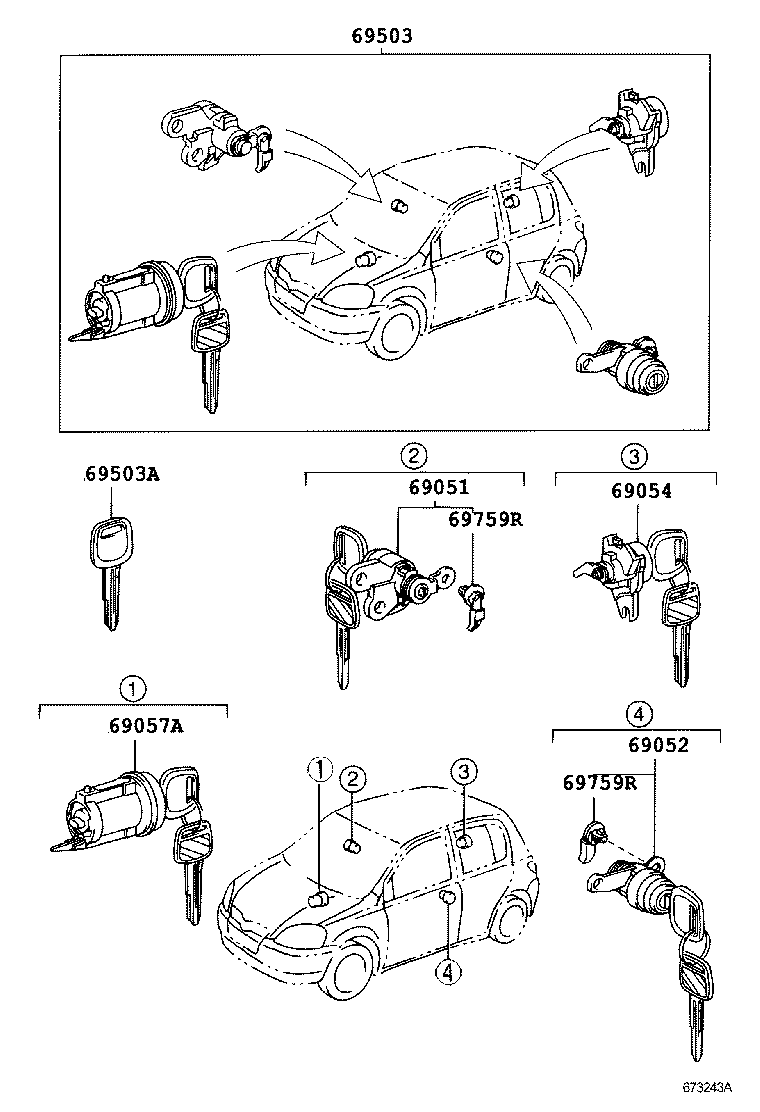

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69503 69503A 69759R 69759R
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52230

NCP13

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-52260

NCP13

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-52350

NCP13

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52260

NCP13

 1
69503 - CYLINDER SET, LOCK
69005-52A30

NCP13

 1
69503A - KEY, BLANK
90999-00199

NCP13

MASTER KEY,W(*68)

 3
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP13

RH

 1
69759-32100

NCP13

LH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP13

RH

 1
69759-32100

NCP13

LH

 1
