NCP13L-AGPRKK (2003)
Toyota Echo
Production
Jun 2003
-
Aug 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

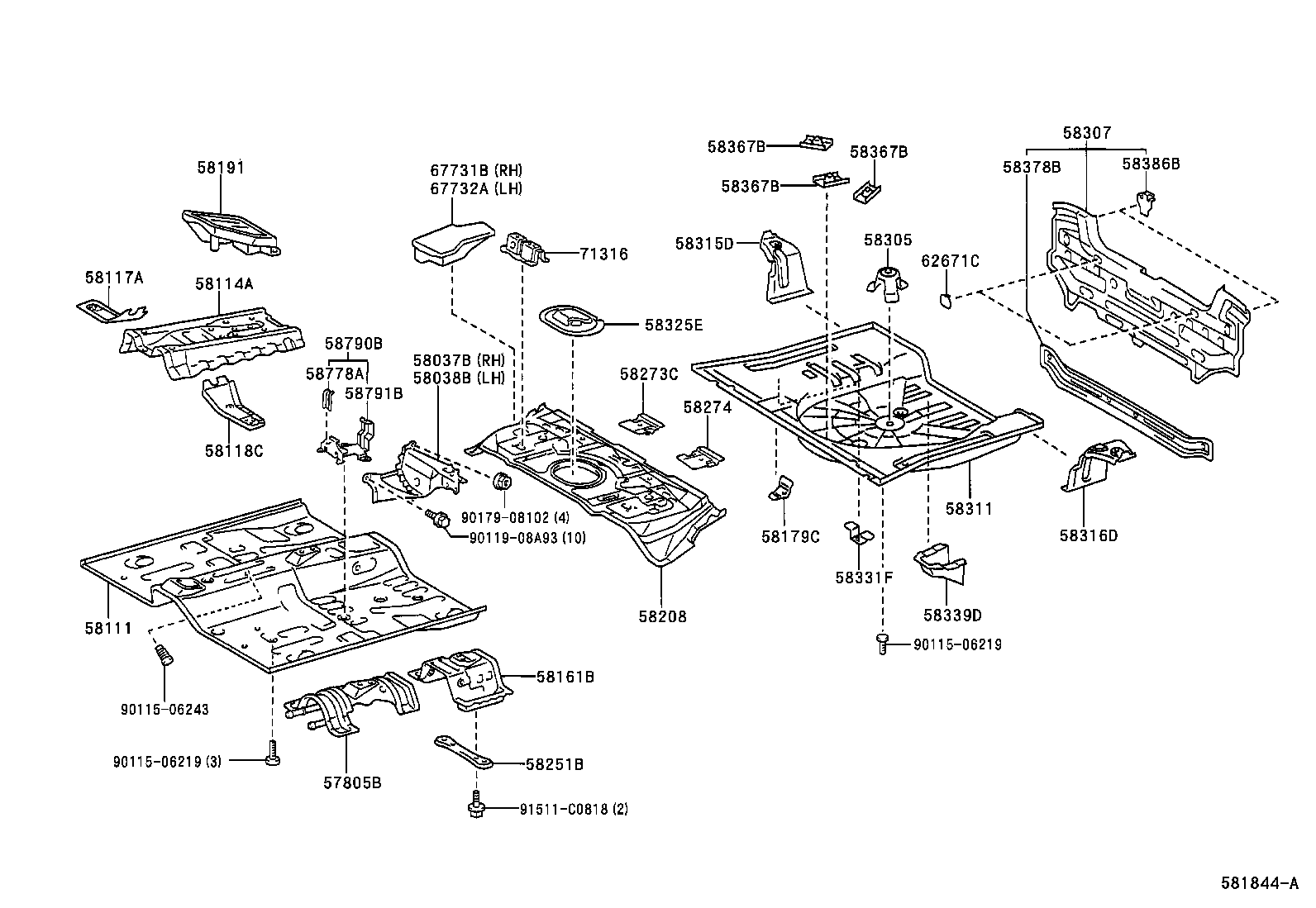

ILLUST NO. 1 OF 2(0306- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52120 |
NCP13 |
1 | ||
| 58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-52080 |
NCP13..3D |
1 | ||
| 58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-52080 |
NCP13..3D |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-52906 |
NCP13 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58103-52011 |
NCP13 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-52040 |
NCP13 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-52030 |
NCP13 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52010 |
NCP13 |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-52020 |
NCP13 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-52061 |
NCP13 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52130 |
NCP13 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-52010 |
NCP13 |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-52090 |
NCP13 |
1 | ||
| 58274 - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1 | ||||
| 58274-52050 |
NCP13 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-52100 |
NCP13 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52370 |
NCP13 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52902 |
NCP13 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-52150 |
NCP13 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-52170 |
NCP13 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52010 |
NCP13 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
NCP13 |
2 | ||
| 58339D - BRACKET, JACK UP | ||||
| 58339-52060 |
NCP13 |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-52010 |
NCP13 |
3 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-52010 |
NCP13 |
3 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-52010 |
NCP13 |
3 | ||
| 58378B - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58378-52080 |
NCP13 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-52010 |
NCP13 |
2 | ||
| 58778A - BRACKET, JACK HOLDER, NO.1 | ||||
| 58778-52010 |
NCP13 |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-52050 |
NCP13 |
1 | ||
| 58790-52051 |
NCP13 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52021 |
NCP13 |
1 | ||
| 58791-52020 |
NCP13 |
1 | ||
| 62671C - COVER, LOWER BACK PANEL | ||||
| 62671-52010B0 |
NCP13 DK.GRAY,TRIM9# |
2 | ||
| 67731B - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-52010 |
NCP13..3D |
1 | ||
| 67732A - SPACER, SIDE TRIM, NO.2 | ||||
| 67732-52010 |
NCP13..3D |
1 | ||
| 71316 - BRACKET, REAR SEAT SUPPORT | ||||
| 71316-52070 |
NCP13 |
2 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08A93 | ||||
| 90179-08102 | ||||
| 91511-C0818 | ||||

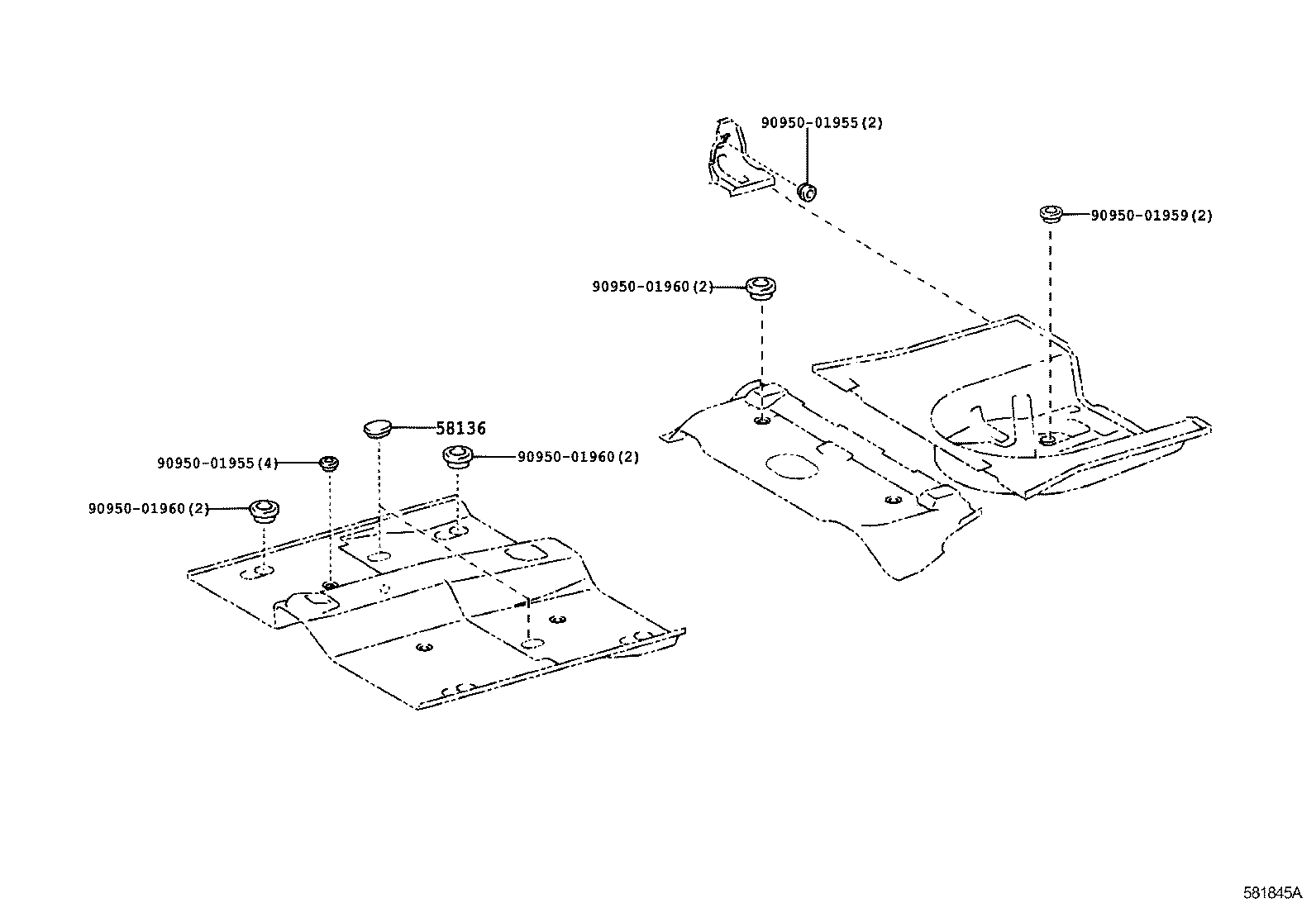

ILLUST NO. 2 OF 2(0306- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
NCP13 |
2 | ||
| Common parts | ||||
| 90950-01955 | ||||
| 90950-01959 | ||||
| 90950-01960 | ||||
