NCP13L-AGPRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

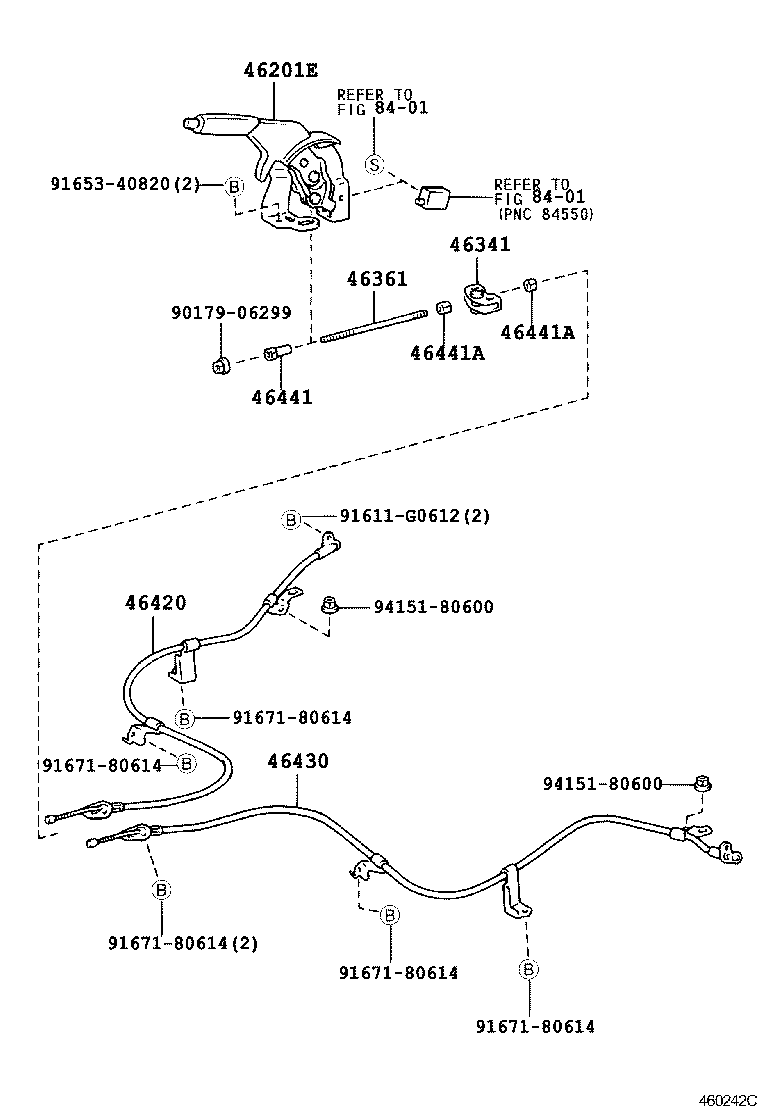

Click highlighted areas on diagram

diagram 46201E 46341 46361 46420 46430 46441 46441A 46441A 8401 8401 9017906299 91611G0612 9165340820 9167180614 9167180614 9167180614 9167180614 9167180614 9415180600 9415180600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52010B3

NCP13

DK.GRAY,TRIM9#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-52010

NCP13

 1
46361 - ROD, PARKING BRAKE PULL
46361-52010

NCP13

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52020

NCP13

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52020

NCP13

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCP13

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP13

 2
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP13

 2
Common parts
90179-06299
91611-G0612
91653-40820
91671-80614
94151-80600
Linked diagrams
8401
