NCP13L-AGPRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

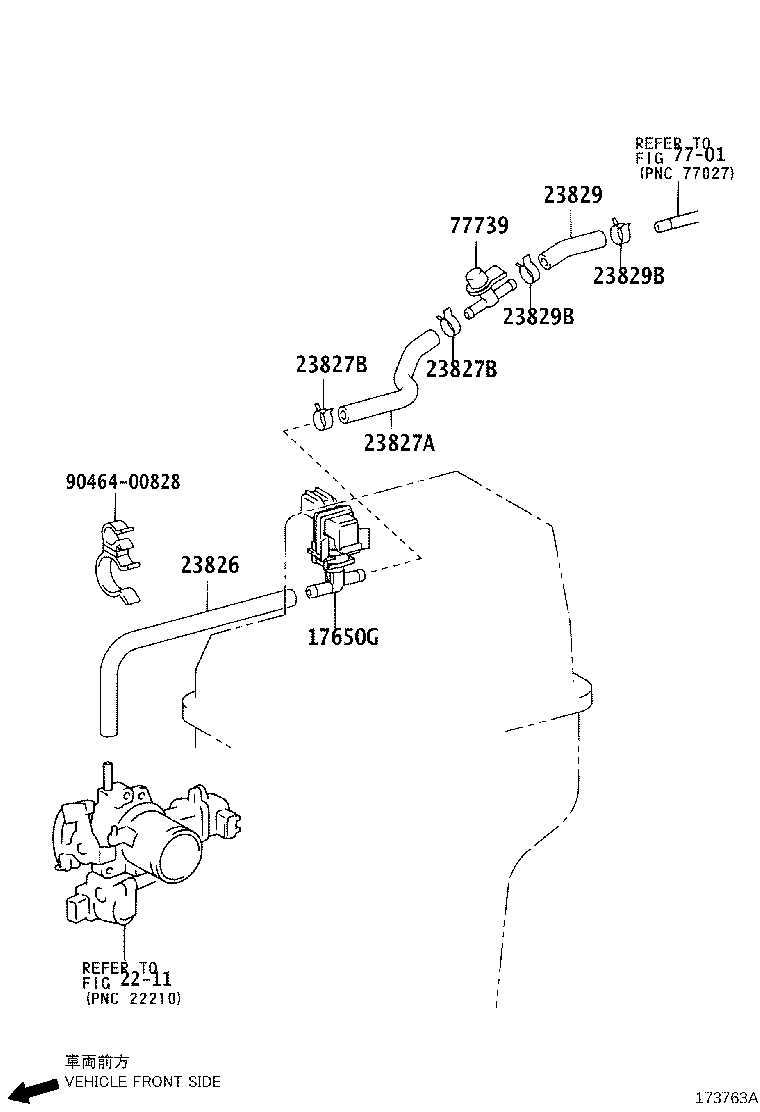

Click highlighted areas on diagram

diagram 17650G 2211 23826 23827A 23827B 23827B 23829 23829B 23829B 7701 77739 9046400828
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12263

1NZFE..NCP13

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
95328-07036

1NZFE..NCP13

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21020

1NZFE..NCP13

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1NZFE..NCP13

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1NZFE..NCP13

 2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-21020

1NZFE..NCP13

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1NZFE..NCP13

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1NZFE..NCP13

 2
77739 - VALVE, EVAP SERVICE PORT
77739-33010

NCP13

 1
Common parts
90464-00828
Linked diagrams
2211
7701
