NCP12L-BEPRKK (1999)
Toyota Echo

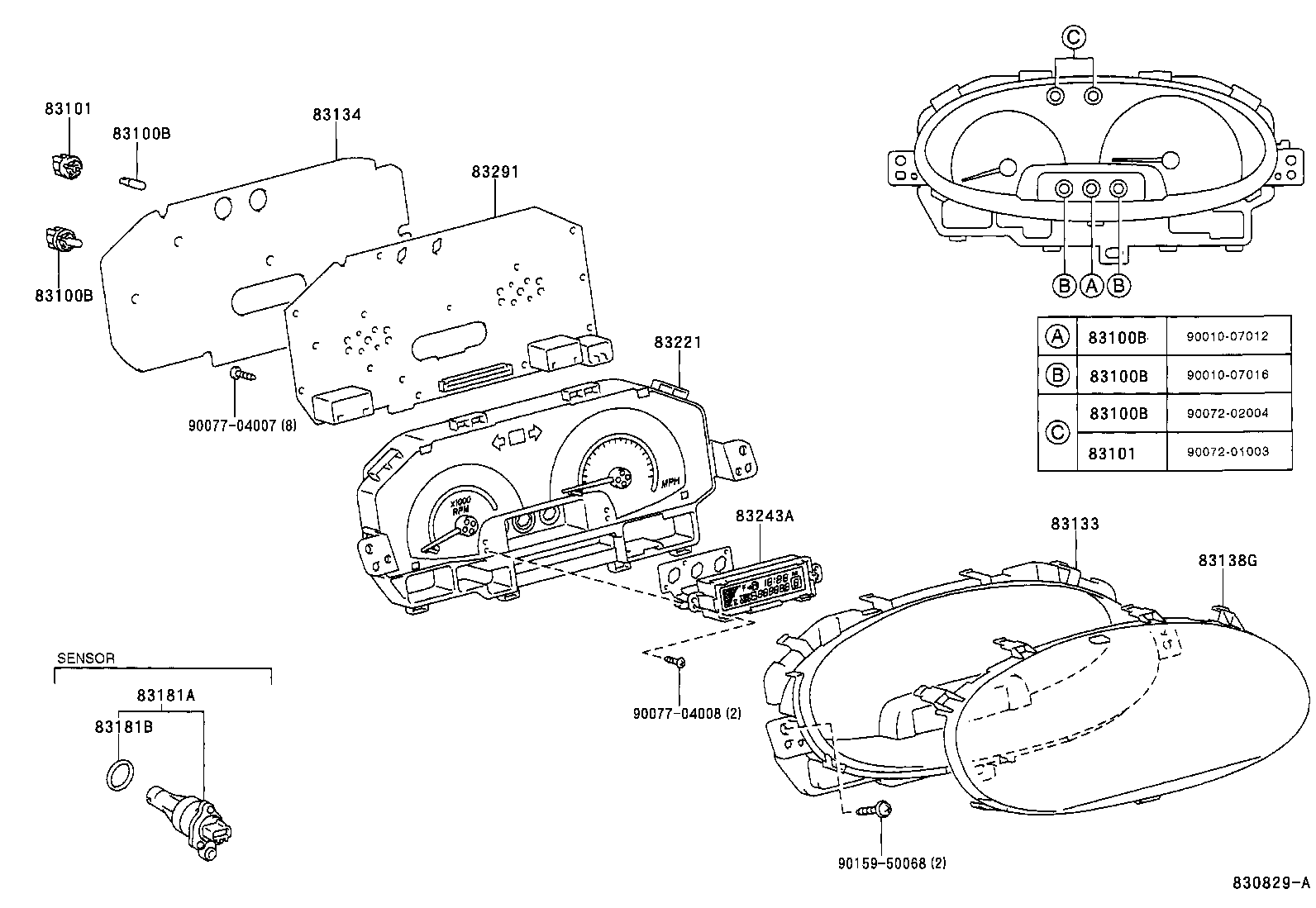

ILLUST NO. 1 OF 2(9908- )
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-5C100 |
NCP12..CND |
1 | ||
| 83800-52370 |
NCP12..CND |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
NCP12 |
1 | ||
| 83852-52040 |
NCP12 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
NCP12..ATM |
1 | ||
| 83181-12040 |
NCP12..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
NCP12..ATM |
1 | ||
| 96711-24018 |
NCP12..ATM |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||

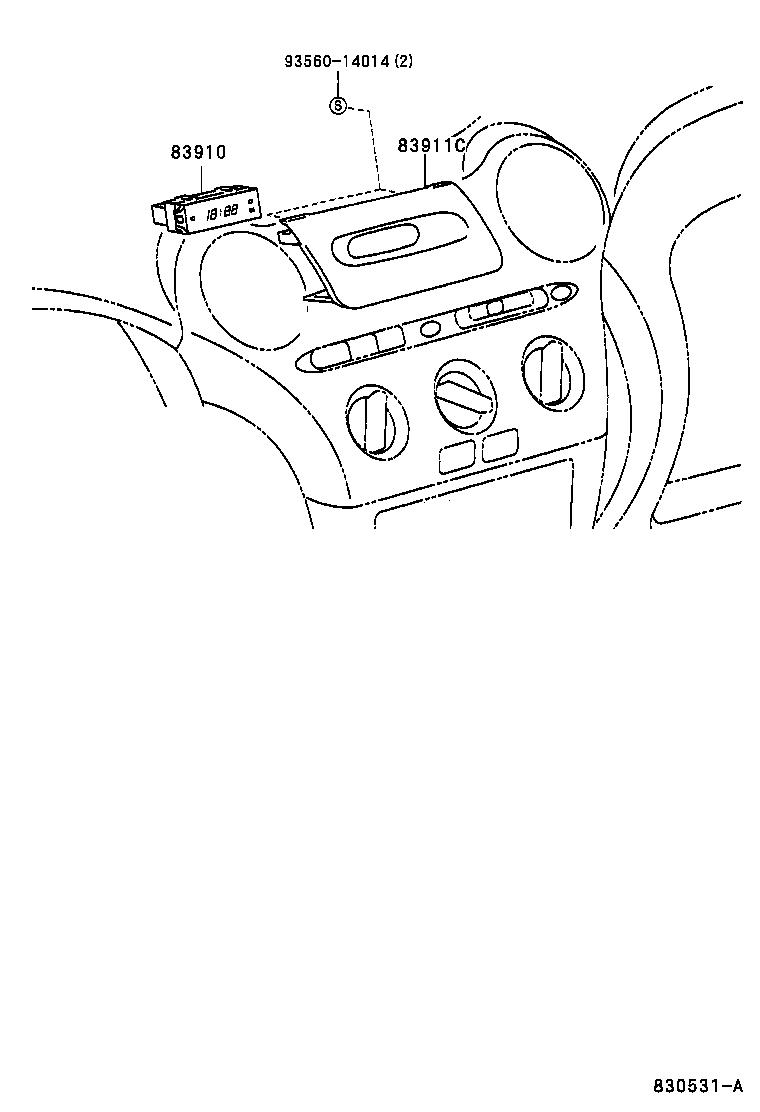

ILLUST NO. 2 OF 2(9908- )
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
NCP12 |
1 | ||
| 83910-20720 |
NCP12 |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-52010B0 |
NCP12 SHADOW GRAY,TRIM1# |
1 | ||
| 83911-52010B0 |
NCP12 SHADOW GRAY,TRIM1# |
1 | ||
| 83911-52010B1 |
NCP12 AMETHYST,TRIM9# |
1 | ||
| 83911-52010B2 |
NCP12 DK.GRAY,TRIM1# |
1 | ||
| 83911-52010E0 |
NCP12 SANDAL WOOD,TRIM4# |
1 | ||
| Common parts | ||||
| 93560-14014 | ||||

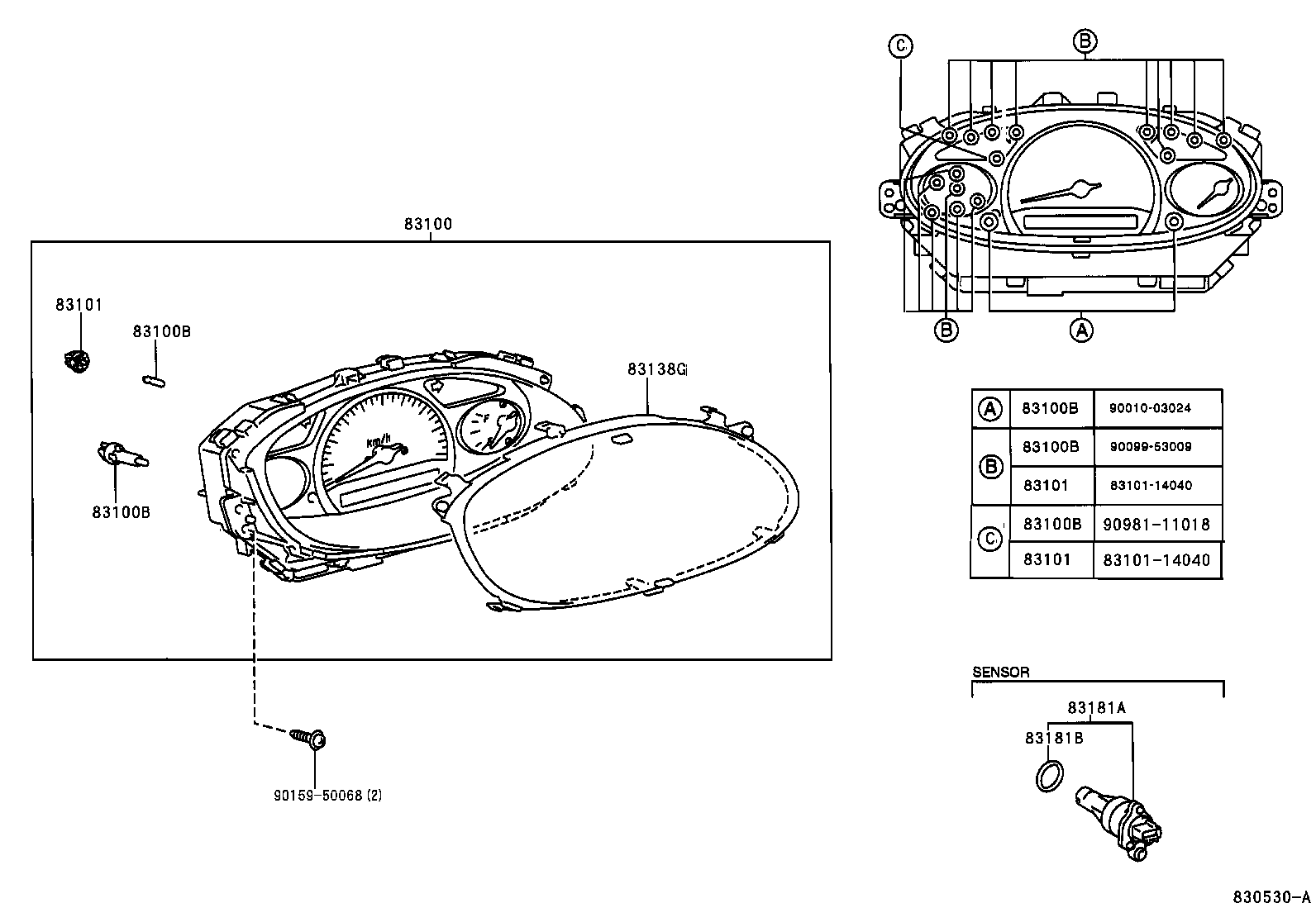

ILLUST NO. 1 OF 2(0208- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP12 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP12 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP12 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP12 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
NCP12 |
1 | ||
| 83852-52040 |
NCP12 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
NCP12..ATM |
1 | ||
| 83181-12040 |
NCP12..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
NCP12..ATM |
1 | ||
| 96711-24018 |
NCP12..ATM |
1 | ||
| Common parts | ||||
| 90077-04007 | ||||
| 90077-04008 | ||||
| 90159-50068 | ||||
