NCP12L-BEPRKA (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

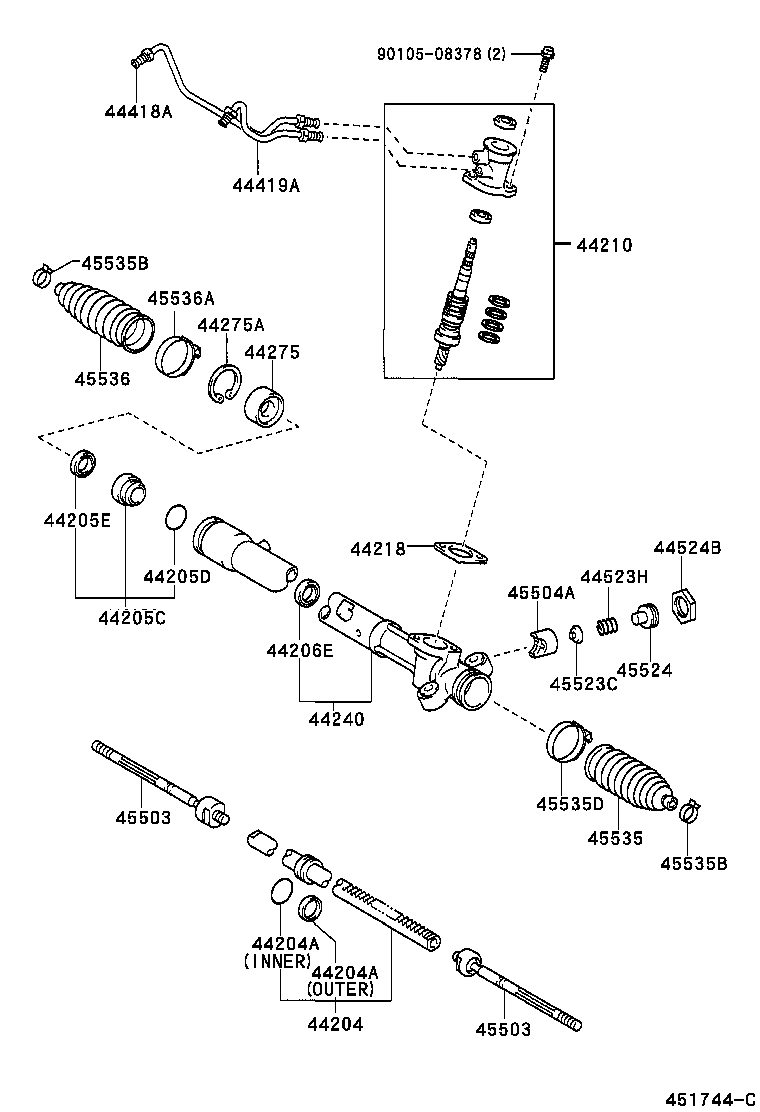

ILLUST NO. 3 OF 3(9908-0208)

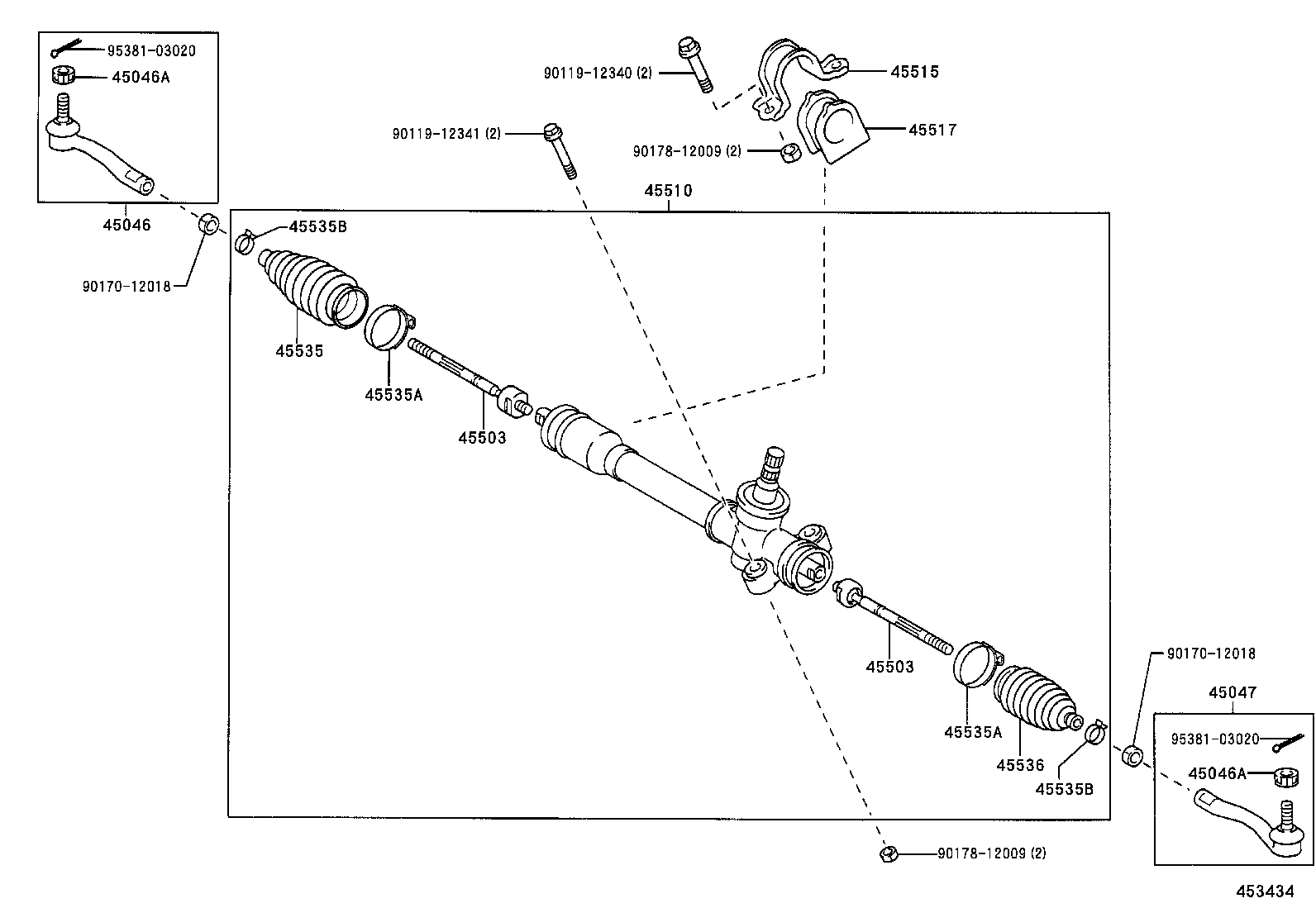

Click highlighted areas on diagram

W(POWER STEERING)

diagram 44204 44204A 44204A 44205C 44205D 44205E 44206E 44210 44218 44240 44275 44275A 44418A 44419A 44523H 44524B 45503 45503 45504A 45523C 45524 45535 45535B 45535B 45535D 45536 45536A 9010508378
Part # Description Qty Price
44204 - RACK SUB-ASSY, POWER STEERING
44204-52010

NCP12

 1
44204A - RING(FOR RACK STEERING PISTON)
90301-29005

NCP12

INNER

 1
90562-34002

NCP12

OUTER

 1
44204A - RING(FOR RACK STEERING PISTON)
90301-29005

NCP12

INNER

 1
90562-34002

NCP12

OUTER

 1
44205C - BUSH SUB-ASSY, POWER STEERING RACK
44205-52010

NCP12

 1
44205D - RING, O(FOR POWER STEERING RACK BUSH)
90301-33004

NCP12

 1
44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH)
90311-22019

NCP12

 1
44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
90311-22020

NCP12

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-52070

NCP12

 1
44218 - GASKET, VALVE HOUSING
44218-52010

NCP12

 1
44240 - HOUSING ASSY, POWER STEERING RACK
44240-52010

NCP12

 1
44275 - STOPPER, CYLINDER END
44275-52010

NCP12

 1
44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER)
90521-52005

NCP12

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-52010

NCP12

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-52010

NCP12

 1
44523H - SPRING(FOR POWER STEERING RACK GUIDE)
90501-29047

NCP12

 1
44524B - NUT(FOR POWER STEERING RACK GUIDE CAP)
90179-30002

NCP12

 1
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45504A - GUIDE SUB-ASSY, RACK
45504-16060

NCP12

W(POWER STEERING)

 1
45504-52010

NCP12

W(MANUAL STEERING)

 1
45523C - SPACER(FOR RACK GUIDE)
45542-52010

NCP12

W(MANUAL STEERING)

 1
45542-12010

NCP12

W(POWER STEERING)

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-52010

NCP12

W(MANUAL STEERING)

 1
45524-16050

NCP12

W(POWER STEERING)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008

NCP12

 1
90460-58008

NCP12

 1
45536 - BOOT, STEERING RACK, NO.2
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008

NCP12

 1
90460-58008

NCP12

 1
Common parts
90105-08378

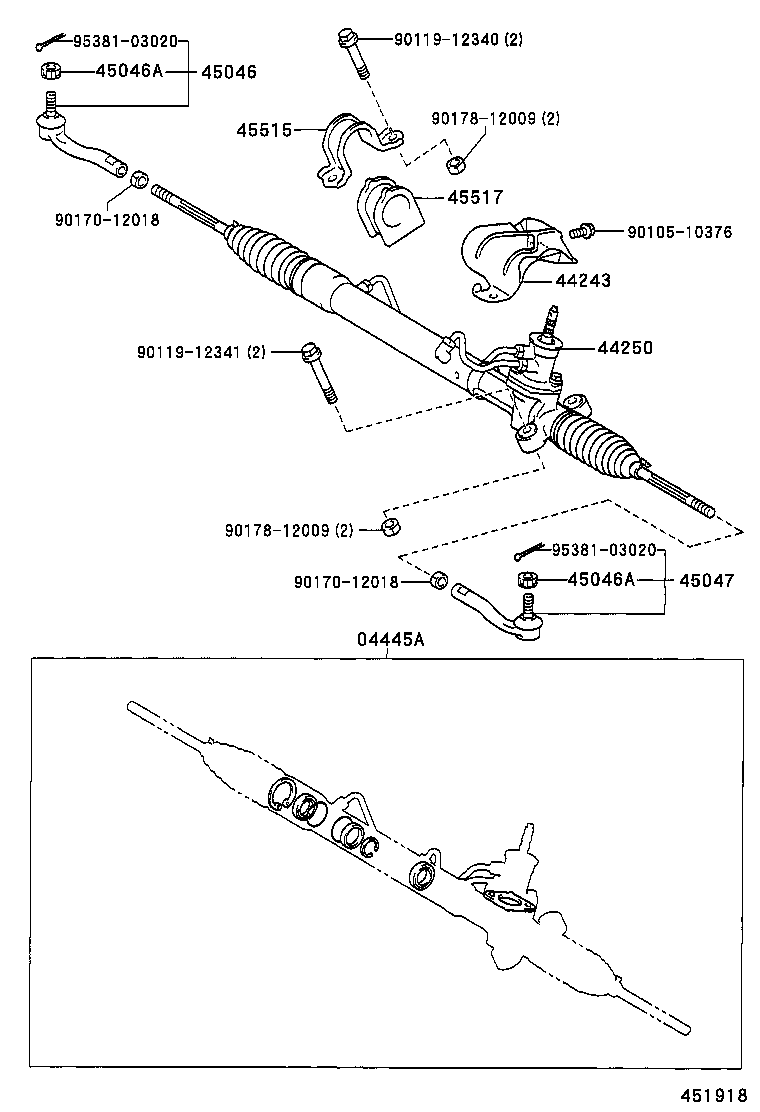

ILLUST NO. 2 OF 3(9908-0208)

Click highlighted areas on diagram

W(POWER STEERING)

diagram 04445A 44243 44250 45046 45046A 45046A 45047 45515 45517 9010510376 9011912340 9011912341 9017012018 9017012018 9017812009 9017812009 9538103020 9538103020
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-52010

NCP12

 1
04445-52010

NCP12

 1
44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT
44243-52010

NCP12

 1
44243-52010

NCP12

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-52200

NCP12

 1
44250-52110

NCP12

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45046-59025

NCP12

 1
45046-59026

NCP12

W(MANUAL STEERING)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59025

NCP12

 1
45047-59026

NCP12

W(MANUAL STEERING)

 1
45047-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010

NCP12

 1
45515-52010

NCP12

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010

NCP12

W(POWER STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52010

NCP12

W(POWER STEERING)

 1
Common parts
90105-10376
90119-12340
90119-12341
90170-12018
90178-12009
95381-03020

(0208- )

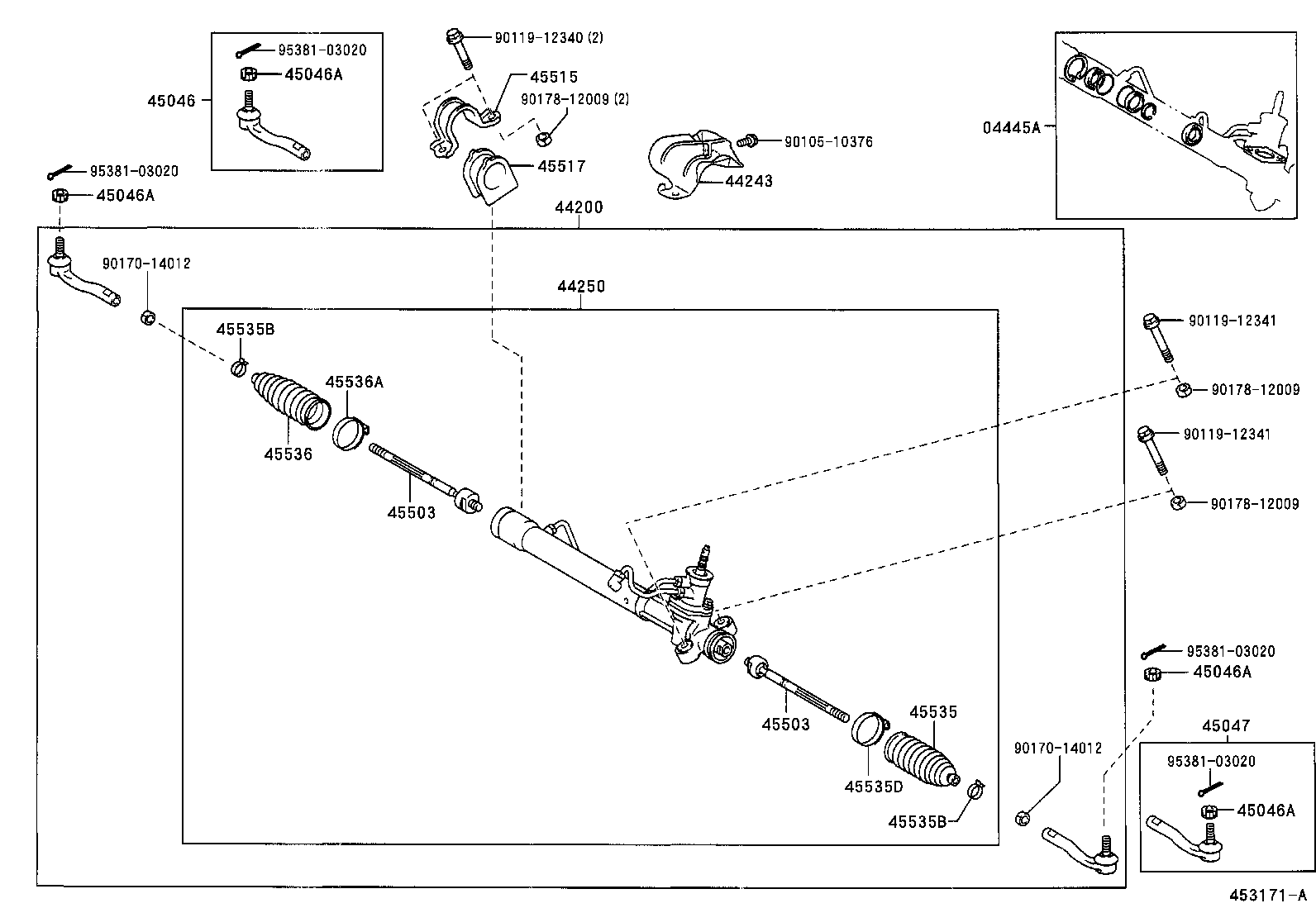

Click highlighted areas on diagram

W(POWER STEERING)

diagram 04445A 44200 44243 44250 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45515 45517 45535 45535B 45535B 45535D 45536 45536A 9010510376 9011912340 9011912341 9011912341 9017014012 9017014012 9017812009 9017812009 9017812009 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-52010

NCP12

 1
04445-52010

NCP12

 1
44200 - LINK ASSY, POWER STEERING
44200-52340

NCP12

 1
44200-52140

NCP12

 1
44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT
44243-52010

NCP12

 1
44243-52010

NCP12

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-52200

NCP12

 1
44250-52110

NCP12

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45046-59025

NCP12

 1
45046-59026

NCP12

W(MANUAL STEERING)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59025

NCP12

 1
45047-59026

NCP12

W(MANUAL STEERING)

 1
45047-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010

NCP12

 1
45515-52010

NCP12

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010

NCP12

W(POWER STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52010

NCP12

W(POWER STEERING)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008

NCP12

 1
90460-58008

NCP12

 1
45536 - BOOT, STEERING RACK, NO.2
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008

NCP12

 1
90460-58008

NCP12

 1
Common parts
90105-10376
90119-12340
90119-12341
90170-14012
90178-12009
95381-03020

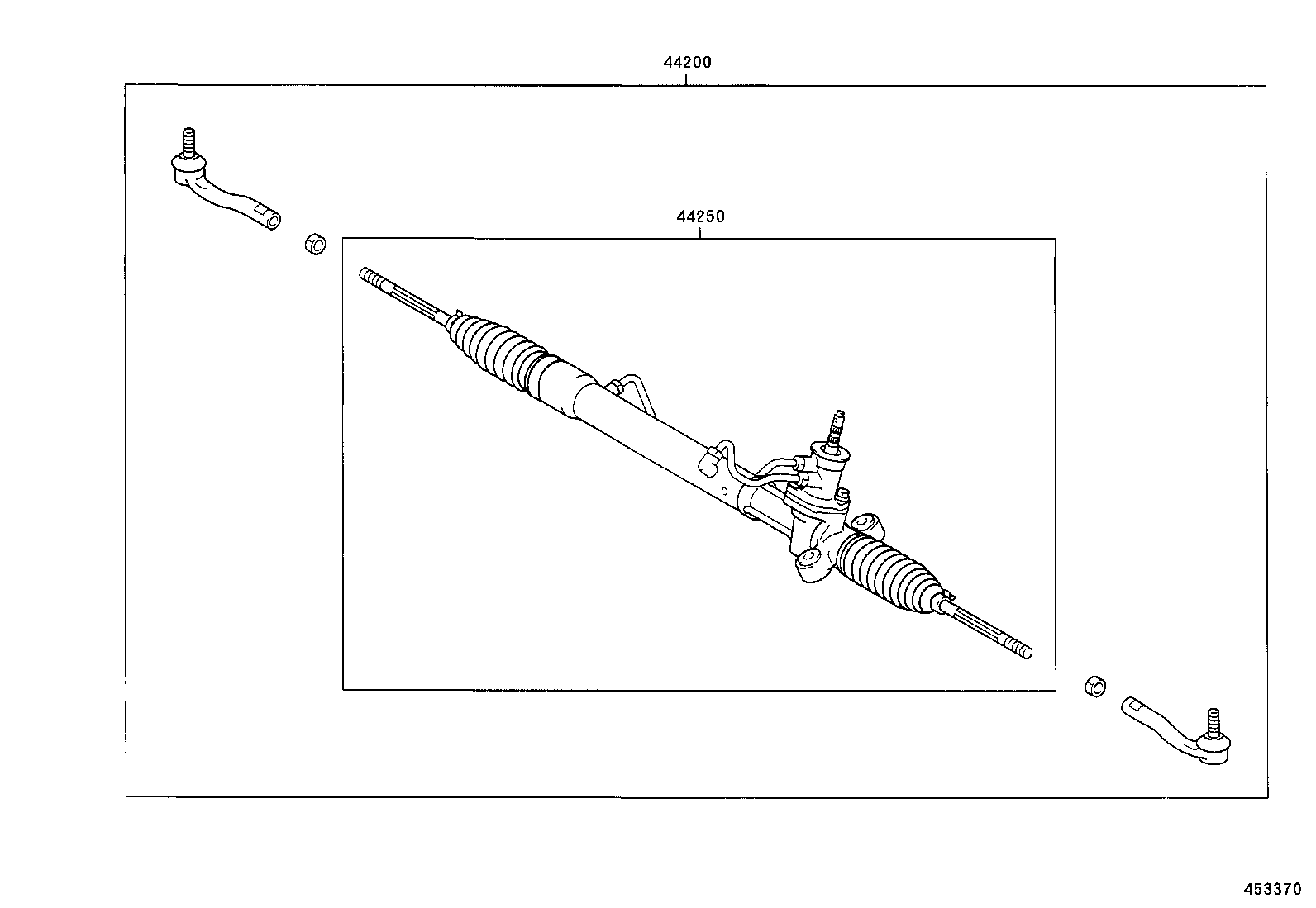

ILLUST NO. 1 OF 3(9908-0208)

Click highlighted areas on diagram

W(POWER STEERING)

diagram 44200 44250
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-52340

NCP12

 1
44200-52140

NCP12

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-52200

NCP12

 1
44250-52110

NCP12

 1

(9908-0208)

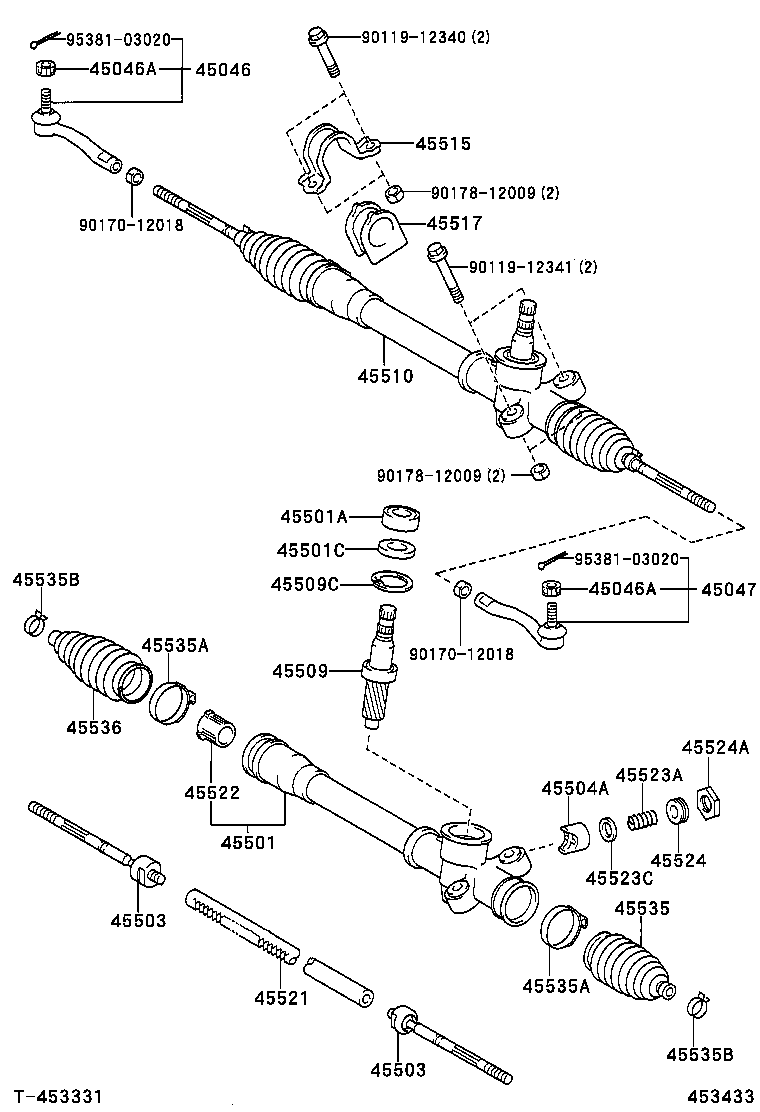

Click highlighted areas on diagram

W(MANUAL STEERING)

diagram 45046 45046A 45046A 45047 45501 45501A 45501C 45503 45503 45504A 45509 45509C 45510 45515 45517 45521 45522 45523A 45523C 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 9011912340 9011912341 9017012018 9017012018 9017812009 9017812009 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45046-59025

NCP12

 1
45046-59026

NCP12

W(MANUAL STEERING)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59025

NCP12

 1
45047-59026

NCP12

W(MANUAL STEERING)

 1
45047-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-52020

NCP12

 1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-17009

NCP12

 1
45501C - SPACER(FOR STEERING RACK HOUSING)
90561-20003

NCP12

 1
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45504A - GUIDE SUB-ASSY, RACK
45504-16060

NCP12

W(POWER STEERING)

 1
45504-52010

NCP12

W(MANUAL STEERING)

 1
45509 - PINION SUB-ASSY, STEERING
45509-52020

NCP12

 1
45509C - RING, HOLE SNAP(FOR STEERING PINION)
90521-35002

NCP12

 1
45510 - GEAR ASSY, STEERING
45510-52020

NCP12

 1
45510-52020

NCP12

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010

NCP12

 1
45515-52010

NCP12

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010

NCP12

W(POWER STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52010

NCP12

W(POWER STEERING)

 1
45521 - RACK, STEERING
45521-52020

NCP12

 1
45522 - BUSH, STEERING RACK
45522-52010

NCP12

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-29050

NCP12

 1
45523C - SPACER(FOR RACK GUIDE)
45542-52010

NCP12

W(MANUAL STEERING)

 1
45542-12010

NCP12

W(POWER STEERING)

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-52010

NCP12

W(MANUAL STEERING)

 1
45524-16050

NCP12

W(POWER STEERING)

 1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90177-30002

NCP12

 1
45535 - BOOT, STEERING RACK, NO.1
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90904-67039

NCP12

 2
90904-67039

NCP12

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90904-67039

NCP12

 2
90904-67039

NCP12

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45536 - BOOT, STEERING RACK, NO.2
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
Common parts
90119-12340
90119-12341
90170-12018
90178-12009
95381-03020

(0208- )

Click highlighted areas on diagram

W(MANUAL STEERING)

diagram 45046 45046A 45046A 45047 45503 45503 45510 45515 45517 45535 45535A 45535A 45535B 45535B 45536 9011912340 9011912341 9017012018 9017012018 9017812009 9017812009 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45046-59025

NCP12

 1
45046-59026

NCP12

W(MANUAL STEERING)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP12

 2
90171-12028

NCP12

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59025

NCP12

 1
45047-59026

NCP12

W(MANUAL STEERING)

 1
45047-59026

NCP12

 1
45046-19175

NCP12

W(POWER STEERING)

 1
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45503 - END SUB-ASSY, STEERING RACK
45503-59045

NCP12

L=256

 2
45503-59045

NCP12

L=256

 2
45503-59055

NCP12

L=356

 2
45510 - GEAR ASSY, STEERING
45510-52020

NCP12

 1
45510-52020

NCP12

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010

NCP12

 1
45515-52010

NCP12

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010

NCP12

W(POWER STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52020

NCP12

W(MANUAL STEERING)

 1
45517-52010

NCP12

W(POWER STEERING)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90904-67039

NCP12

 2
90904-67039

NCP12

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90904-67039

NCP12

 2
90904-67039

NCP12

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-17021

NCP12

W(POWER STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90466-17001

NCP12

W(MANUAL STEERING)

 2
90467-19021

NCP12

W(POWER STEERING)

 2
45536 - BOOT, STEERING RACK, NO.2
45535-52060

NCP12

W(POWER STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52030

NCP12

W(MANUAL STEERING)

 1
45535-52010

NCP12

W(POWER STEERING)

 1
Common parts
90119-12340
90119-12341
90170-12018
90178-12009
95381-03020
