NCP12L-BEMRKK (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

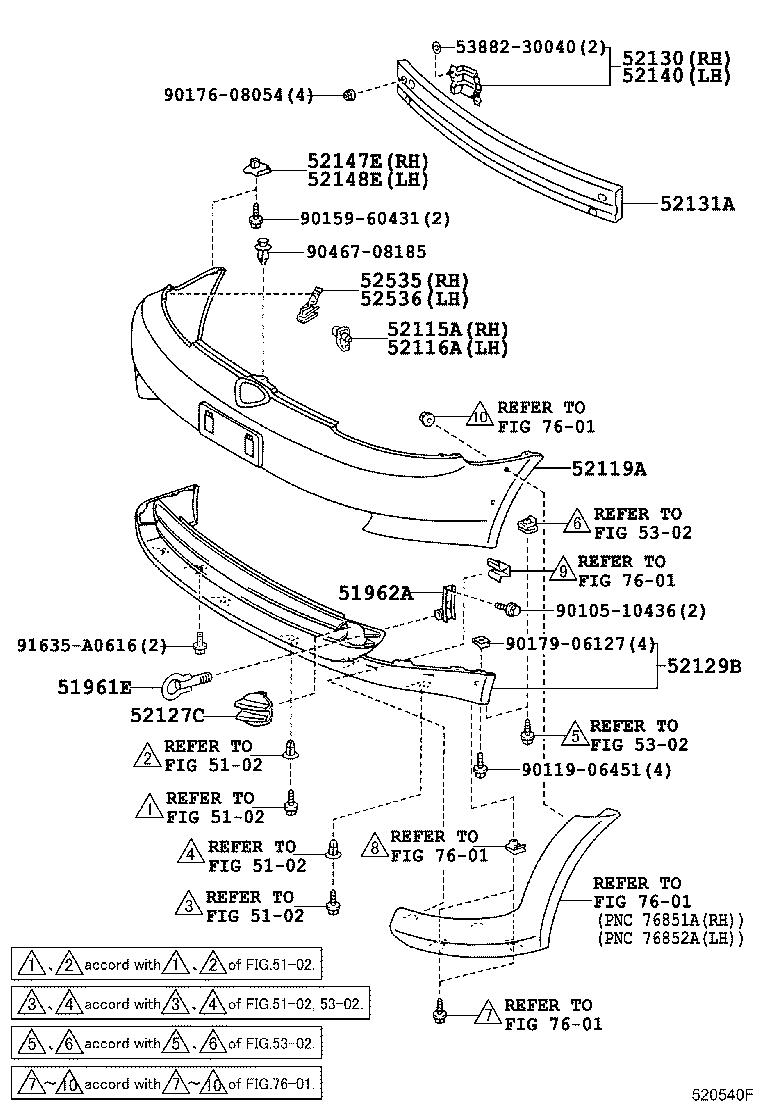

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 51961E 51962A 52115A 52116A 52119A 52127C 52129B 52130 52131A 52140 52147E 52148E 52535 52536 5302 5302 5388230040 7601 7601 7601 7601 7601 9010510436 9011906451 9015960431 9017608054 9017906127 9046708185 91635A0616
Part # Description Qty Price
51961E - HOOK, FRONT
51960-52080

NCP12

 1
51960-52020

NCP12

 1
51962A - HOOK, FRONT LH
51962-52010

NCP12

 1
51962-52030

NCP12

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-52040

NCP12

 1
52115-52010

NCP12

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-52040

NCP12

 1
52116-52010

NCP12

 1
52119A - COVER, FRONT BUMPER
52119-52903

NCP12

W(FRONT SPOILER)

 1
52119-52090

NCP12

 1
52119-52220

NCP12

 1
52119-52240

NCP12..CND

W(FRONT SPOILER)

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52170D1

NCP12

RED M.M.,3P1

 1
52127-52050

NCP12

 1
52127-52170C0

NCP12

BLACK MC.,209

 1
52127-52170G0

NCP12

DARK GREEN MC.,6R4

 1
52127-52170B0

NCP12

GRAY M.M.,1E3

 1
52127-52180

NCP12

 1
52127-52170E0

NCP12

BEIGE ME.,4R0

 1
52127-52170J0

NCP12

DK.BLUE M.M.,8P4

 1
52127-52170A0

NCP12

WHITE,068

 1
52127-52170B1

NCP12

SILVER M.M.,1E7

 1
52127-52170H0

NCP12

LT.AQUA ME.OP.,761

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-52040

NCP12

 1
52129-52050

NCP12

W(FRONT SPOILER)

 1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-52020

NCP12

 1
52130-52011

NCP12

 1
52130-52010

NCP12

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52020

NCP12..CND

 1
52131-52130

NCP12

 1
52131-52260

NCP12..CND

 1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52140-52010

NCP12

 1
52140-52011

NCP12

 1
52140-52020

NCP12

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080

NCP12

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080

NCP12

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52030

NCP12

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52030

NCP12

 1
Common parts
53882-30040
90105-10436
90119-06451
90159-60431
90176-08054
90179-06127
90467-08185
91635-A0616
Linked diagrams
5102
5302
7601

(0208- )

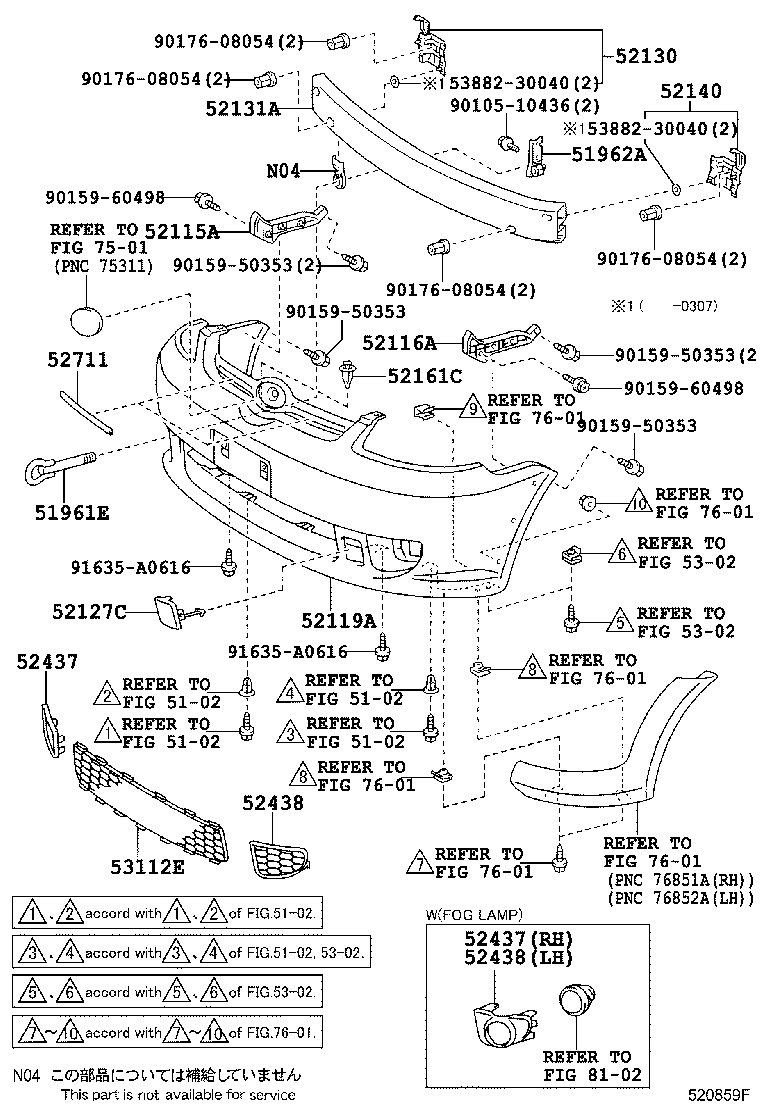

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 51961E 51962A 52115A 52116A 52119A 52127C 52130 52131A 52140 52161C 52437 52437 52438 52438 52711 5302 5302 53112E 5388230040 5388230040 7501 7601 7601 7601 7601 7601 7601 8102 9010510436 9015950353 9015950353 9015950353 9015950353 9015960498 9015960498 9017608054 9017608054 9017608054 9017608054 91635A0616 91635A0616
Part # Description Qty Price
51961E - HOOK, FRONT
51960-52080

NCP12

 1
51960-52020

NCP12

 1
51962A - HOOK, FRONT LH
51962-52010

NCP12

 1
51962-52030

NCP12

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-52040

NCP12

 1
52115-52010

NCP12

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-52040

NCP12

 1
52116-52010

NCP12

 1
52119A - COVER, FRONT BUMPER
52119-52903

NCP12

W(FRONT SPOILER)

 1
52119-52090

NCP12

 1
52119-52220

NCP12

 1
52119-52240

NCP12..CND

W(FRONT SPOILER)

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52170D1

NCP12

RED M.M.,3P1

 1
52127-52050

NCP12

 1
52127-52170C0

NCP12

BLACK MC.,209

 1
52127-52170G0

NCP12

DARK GREEN MC.,6R4

 1
52127-52170B0

NCP12

GRAY M.M.,1E3

 1
52127-52180

NCP12

 1
52127-52170E0

NCP12

BEIGE ME.,4R0

 1
52127-52170J0

NCP12

DK.BLUE M.M.,8P4

 1
52127-52170A0

NCP12

WHITE,068

 1
52127-52170B1

NCP12

SILVER M.M.,1E7

 1
52127-52170H0

NCP12

LT.AQUA ME.OP.,761

 1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-52020

NCP12

 1
52130-52011

NCP12

 1
52130-52010

NCP12

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52020

NCP12..CND

 1
52131-52130

NCP12

 1
52131-52260

NCP12..CND

 1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52140-52010

NCP12

 1
52140-52011

NCP12

 1
52140-52020

NCP12

 1
52161C - PIECE, FRONT BUMPER
52161-20010

NCP12

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-52020

NCP12

 1
52437-52030

NCP12

W(FOG LAMP)

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-52020

NCP12

 1
52437-52030

NCP12

W(FOG LAMP)

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-52020

NCP12

 1
52438-52030

NCP12

W(FOG LAMP)

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-52020

NCP12

 1
52438-52030

NCP12

W(FOG LAMP)

 1
52711 - MOULDING, FRONT BUMPER
52711-52020

NCP12

W(PLATING MOULDING)

 2
52711-52030

NCP12

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52080

NCP12

 1
Common parts
53882-30040
90105-10436
90159-50353
90159-60498
90176-08054
91635-A0616
Linked diagrams
5102
5302
7501
7601
8102
