NCP12L-BEMRKA (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

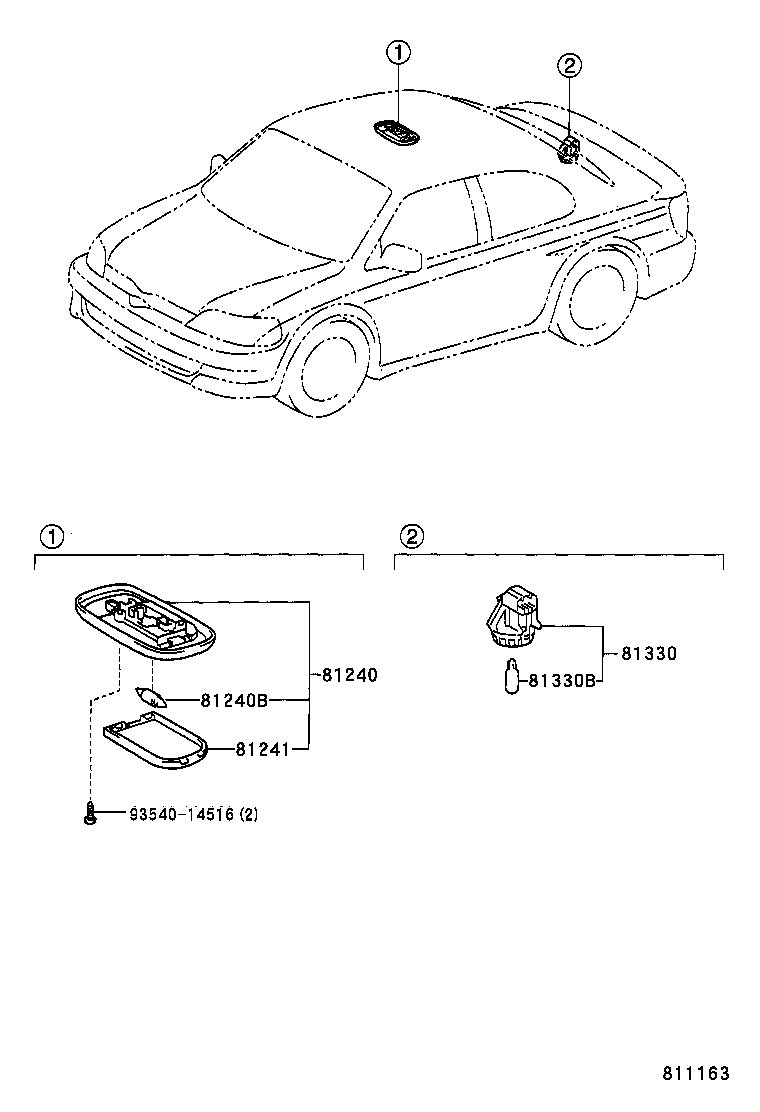

diagram 81240 81240B 81241 81330 81330B 9354014516
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060A2

NCP12

IVORY,TRIM4#

 1
81240-12060P0

NCP12

LT.GRAY,TRIM1#,9#

 1
81240-12060P0

NCP12

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NCP12

12V 8W

 1
90981-14011

NCP12

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

NCP12

 1
81241-12020

NCP12

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

NCP12

 1
81330-12020

NCP12

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

NCP12

12V 3.8W

 1
90981-11020

NCP12

12V 3.8W

 1
Common parts
93540-14516
