NCP12L-BEMRKA (1999)
Toyota Echo
(9908-0208)

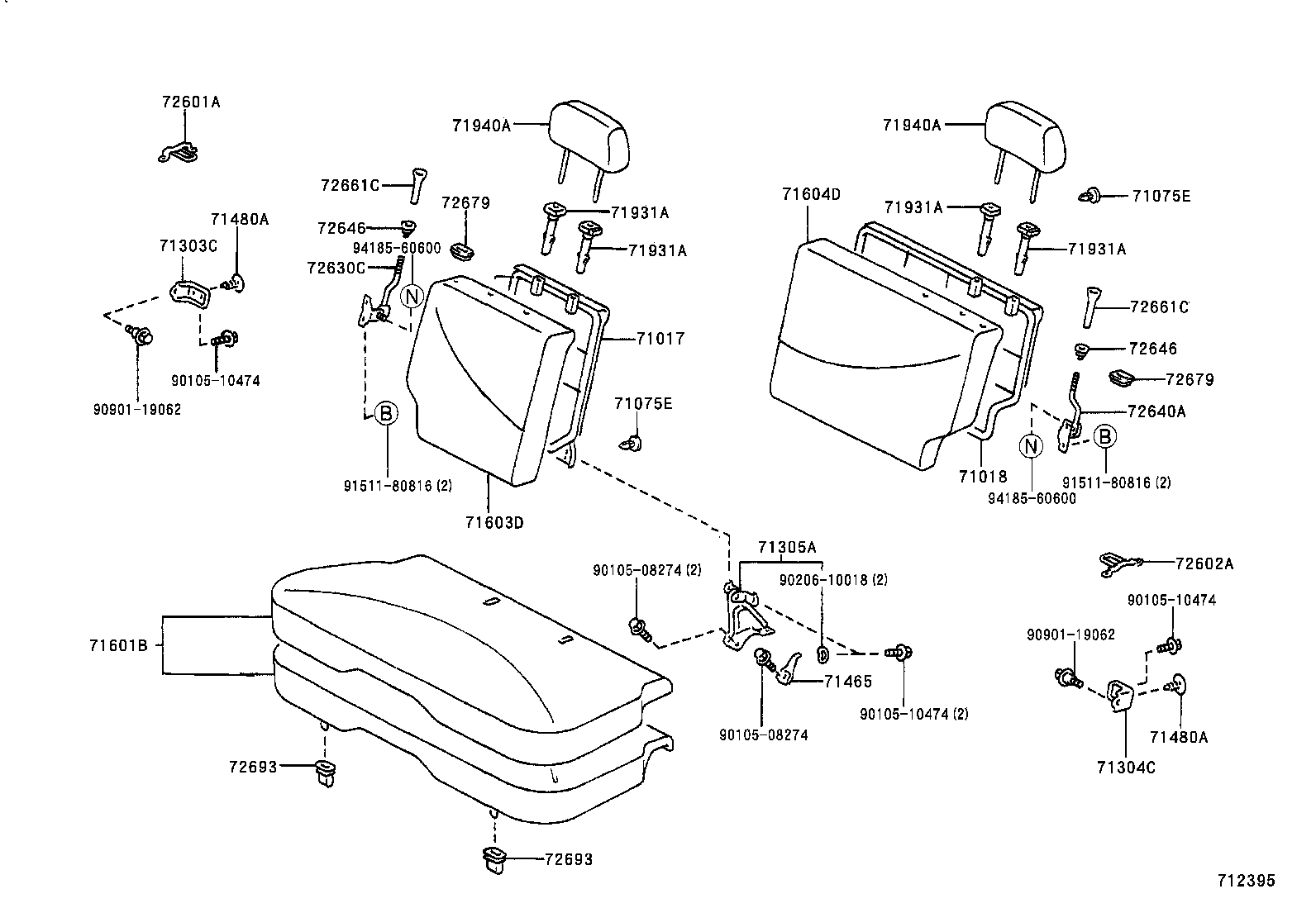

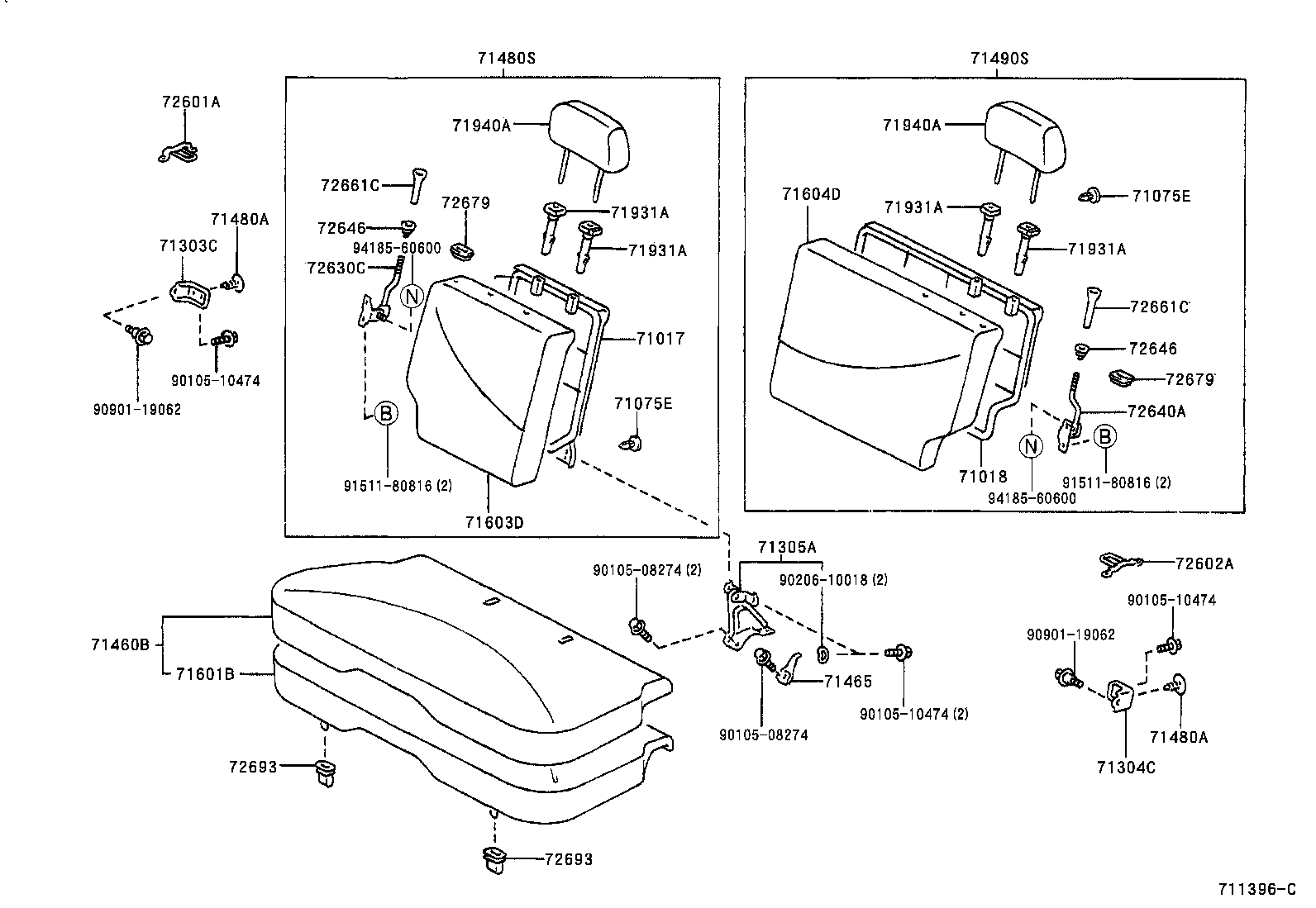

6:4 SPRIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52210 |
NCP12 |
1 | ||
| 71017-52100 |
NCP12 |
1 | ||
| 71017-52210 |
NCP12 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52051 |
NCP12 |
1 | ||
| 71018-52050 |
NCP12 |
1 | ||
| 71018-52051 |
NCP12 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12 |
10 | ||
| 90467-09118 |
NCP12 |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12 |
10 | ||
| 90467-09118 |
NCP12 |
10 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP12 |
1 | ||
| 71345-52010 |
NCP12 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP12 |
1 | ||
| 71345-52010 |
NCP12 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52011 |
NCP12 |
1 | ||
| 71305-52011 |
NCP12 |
1 | ||
| 71305-52010 |
NCP12 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-52420B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71460-52420B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52190B1 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71460-52190B0 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71465 - SPRING, REAR SEAT CUSHION, NO.5 | ||||
| 71465-52010 |
NCP12 |
1 | ||
| 71465-52010 |
NCP12 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12 SHADOW GRAY,TRIM1#,9# |
2 | ||
| 90467-06070B6 |
NCP12 DK.GRAY,TRIM1#,4# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12 SHADOW GRAY,TRIM1#,9# |
2 | ||
| 90467-06070B6 |
NCP12 DK.GRAY,TRIM1#,4# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52330B3 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71480-52330B2 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71480-52330B1 |
NCP12 LT. AMETHYST,TRIM9# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52150B1 |
NCP12 LT. AMETHYST,TRIM9# |
1 | ||
| 71490-52150B2 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71490-52150B3 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52490B1 |
NCP12..4D GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52430B0 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52490B0 |
NCP12..4D LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52430B1 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52680B2 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52690B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM17,19 |
1 | ||
| 71601-52680B3 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52690B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71601-5C850E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C440B0 |
NCP12..4D MD.GRAY,TRIM17,ARACO |
1 | ||
| 71601-5C440E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM40,ARACO |
1 | ||
| 71601-5C440 |
NCP12..4D TACHIESU |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52580B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52620B0 |
NCP12 LT. AMETHYST,TRIM9# |
1 | ||
| 71603-5C750 |
NCP12 TACHIESU |
1 | ||
| 71603-5C750E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-5C750B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71603-52580B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52C50E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71603-52620B1 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71603-5C750B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71603-52C50B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-5C010E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71604-52270B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52320B0 |
NCP12 LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52270B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52320B1 |
NCP12 GRAY,TRIM1#,TACHIESU |
1 | ||
| 71604-5C010B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71604-5C010 |
NCP12 TACHIESU |
1 | ||
| 71604-52B70B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71604-52B70E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71604-5C010B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52050 |
NCP12 |
1 | ||
| 72601-52050 |
NCP12 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52050 |
NCP12 |
1 | ||
| 72601-52050 |
NCP12 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52041 |
NCP12 |
1 | ||
| 72630-52041 |
NCP12 |
1 | ||
| 72630-52040 |
NCP12 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52030 |
NCP12 |
1 | ||
| 72640-52031 |
NCP12 |
1 | ||
| 72640-52031 |
NCP12 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010B2 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010E1 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010B2 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010E1 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B0 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72661-32030B1 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM17,19 |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B0 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72661-32030B1 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM17,19 |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP12 DK.GRAY,TRIM17,19,4# |
2 | ||
| 72679-20030C0 |
NCP12 BLACK,TRIM1#,9# |
2 | ||
| 72679-20030B1 |
NCP12..4D DK.GRAY,TRIM1#,4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP12 DK.GRAY,TRIM17,19,4# |
2 | ||
| 72679-20030C0 |
NCP12 BLACK,TRIM1#,9# |
2 | ||
| 72679-20030B1 |
NCP12..4D DK.GRAY,TRIM1#,4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-10474 | ||||
| 90206-10018 | ||||
| 90901-19062 | ||||
| 91511-80816 | ||||
| 94185-60600 | ||||
(9908-0208)

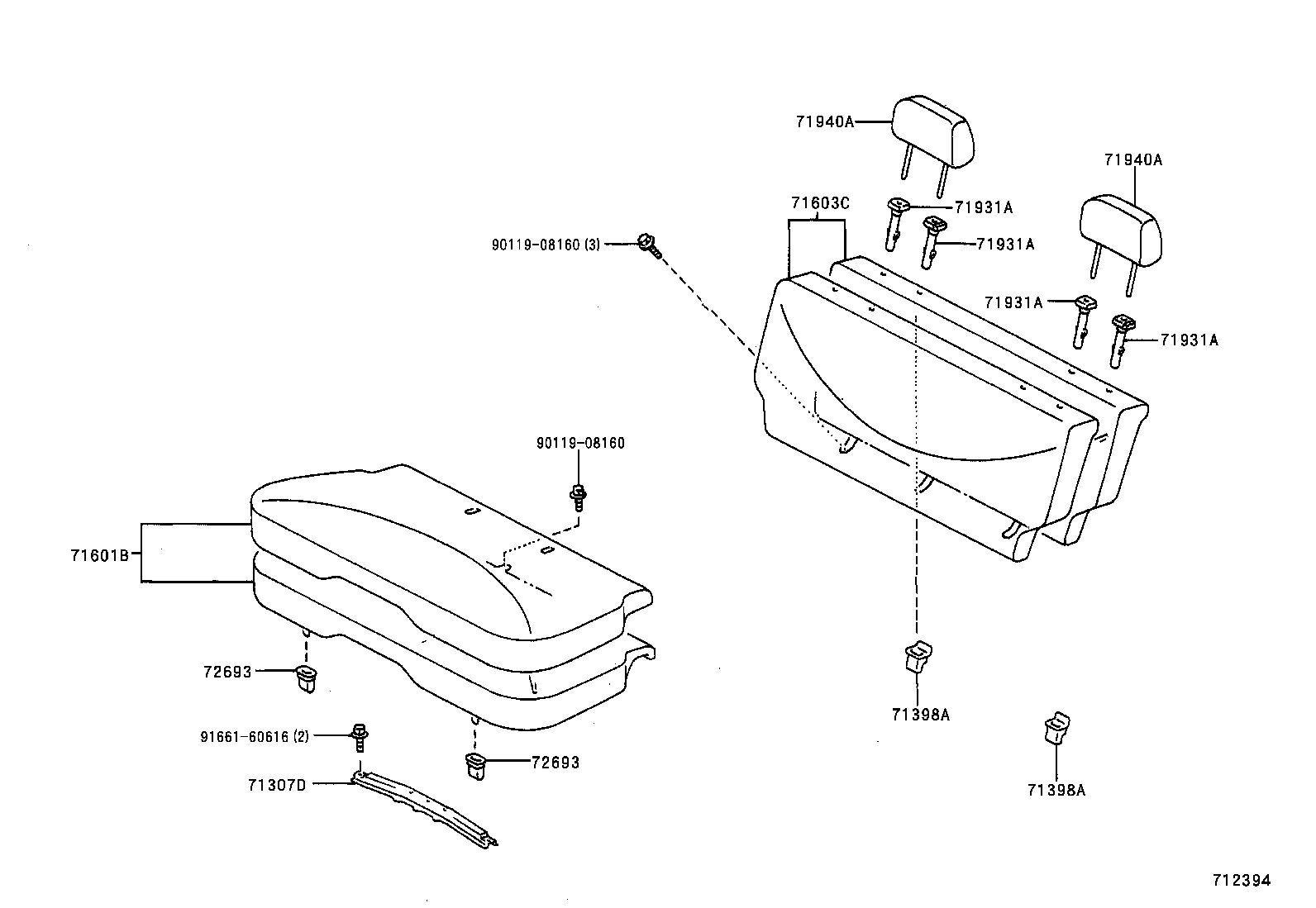

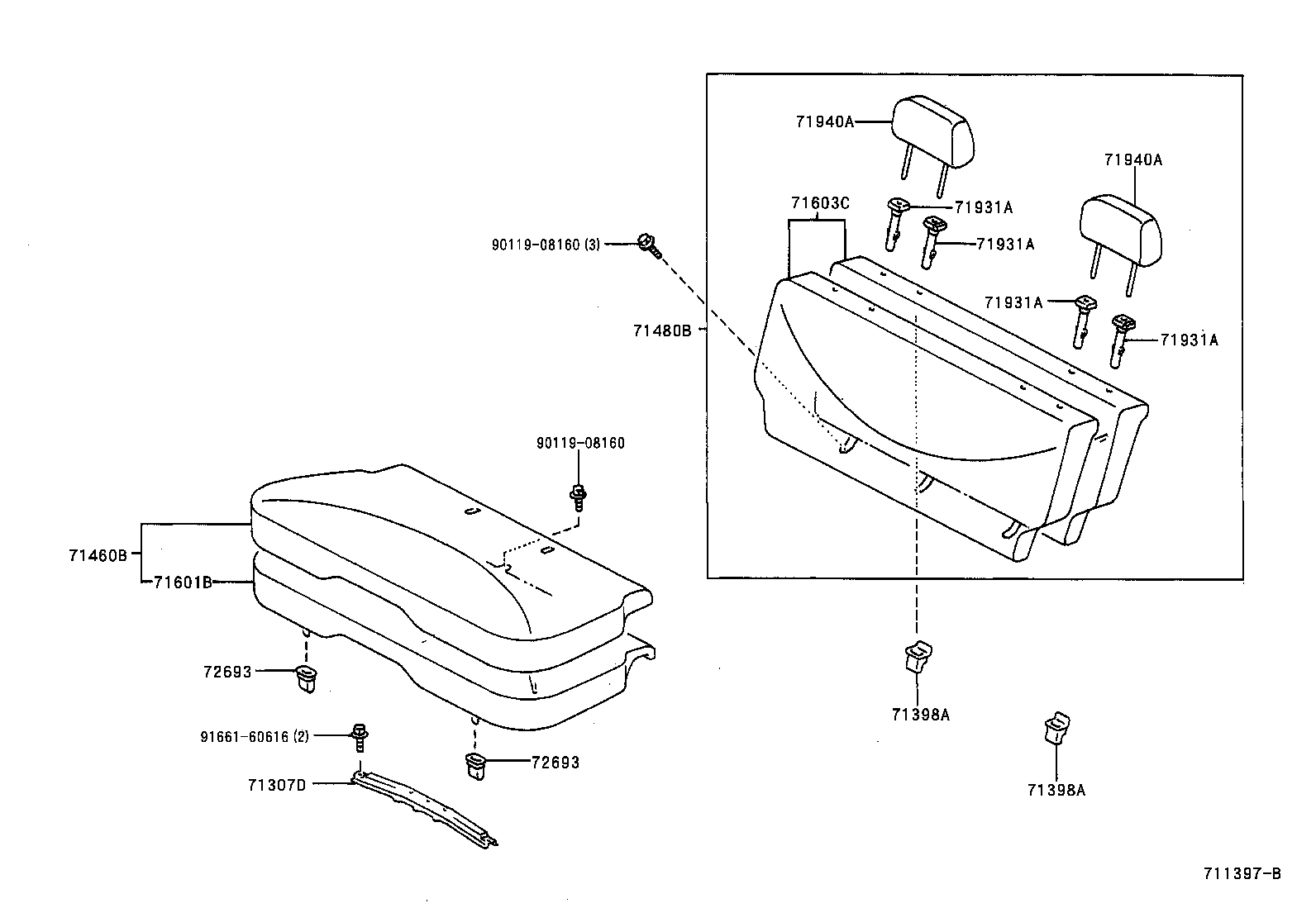

FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71307-52010 |
NCP12 |
1 | ||
| 71307-52011 |
NCP12 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP12 |
2 | ||
| 71398-33010 |
NCP12 |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP12 |
2 | ||
| 71398-33010 |
NCP12 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-52420B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71460-52420B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52190B1 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71460-52190B0 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-52240B1 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71480-52240B0 |
NCP12 LT. AMETHYST,TRIM9# |
1 | ||
| 71480-52240B2 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52490B1 |
NCP12..4D GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52430B0 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52490B0 |
NCP12..4D LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52430B1 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52680B2 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52690B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM17,19 |
1 | ||
| 71601-52680B3 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52690B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71601-5C850E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C440B0 |
NCP12..4D MD.GRAY,TRIM17,ARACO |
1 | ||
| 71601-5C440E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM40,ARACO |
1 | ||
| 71601-5C440 |
NCP12..4D TACHIESU |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52430B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52510B0 |
NCP12 LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603-52430B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-5C660B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71603-52C30B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71603-5C660E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-52510B1 |
NCP12 GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-52C30E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71603-5C660B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| Common parts | ||||
| 90119-08160 | ||||
| 91661-60616 | ||||
(0208- )
FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71307-52010 |
NCP12 |
1 | ||
| 71307-52011 |
NCP12 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP12 |
2 | ||
| 71398-33010 |
NCP12 |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP12 |
2 | ||
| 71398-33010 |
NCP12 |
2 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52490B1 |
NCP12..4D GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52430B0 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52490B0 |
NCP12..4D LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52430B1 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52680B2 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52690B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM17,19 |
1 | ||
| 71601-52680B3 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52690B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71601-5C850E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C440B0 |
NCP12..4D MD.GRAY,TRIM17,ARACO |
1 | ||
| 71601-5C440E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM40,ARACO |
1 | ||
| 71601-5C440 |
NCP12..4D TACHIESU |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52430B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52510B0 |
NCP12 LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603-52430B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-5C660B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71603-52C30B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71603-5C660E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-52510B1 |
NCP12 GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-52C30E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71603-5C660B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| Common parts | ||||
| 90119-08160 | ||||
| 91661-60616 | ||||
(0208- )
6:4 SPRIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52210 |
NCP12 |
1 | ||
| 71017-52100 |
NCP12 |
1 | ||
| 71017-52210 |
NCP12 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52051 |
NCP12 |
1 | ||
| 71018-52050 |
NCP12 |
1 | ||
| 71018-52051 |
NCP12 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12 |
10 | ||
| 90467-09118 |
NCP12 |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12 |
10 | ||
| 90467-09118 |
NCP12 |
10 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP12 |
1 | ||
| 71345-52010 |
NCP12 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP12 |
1 | ||
| 71345-52010 |
NCP12 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52011 |
NCP12 |
1 | ||
| 71305-52011 |
NCP12 |
1 | ||
| 71305-52010 |
NCP12 |
1 | ||
| 71465 - SPRING, REAR SEAT CUSHION, NO.5 | ||||
| 71465-52010 |
NCP12 |
1 | ||
| 71465-52010 |
NCP12 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12 SHADOW GRAY,TRIM1#,9# |
2 | ||
| 90467-06070B6 |
NCP12 DK.GRAY,TRIM1#,4# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12 SHADOW GRAY,TRIM1#,9# |
2 | ||
| 90467-06070B6 |
NCP12 DK.GRAY,TRIM1#,4# |
2 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52490B1 |
NCP12..4D GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52430B0 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52490B0 |
NCP12..4D LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52430B1 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52680B2 |
NCP12..4D LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52690B2 |
NCP12..4D LT. AMETHYST,TRIM9# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM17,19 |
1 | ||
| 71601-52680B3 |
NCP12..4D GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52690B3 |
NCP12..4D GRAY,TRIM1# |
1 | ||
| 71601-5C850B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71601-5C850E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C440B0 |
NCP12..4D MD.GRAY,TRIM17,ARACO |
1 | ||
| 71601-5C440E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM40,ARACO |
1 | ||
| 71601-5C440 |
NCP12..4D TACHIESU |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52580B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52620B0 |
NCP12 LT. AMETHYST,TRIM9# |
1 | ||
| 71603-5C750 |
NCP12 TACHIESU |
1 | ||
| 71603-5C750E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-5C750B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71603-52580B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52C50E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71603-52620B1 |
NCP12 GRAY,TRIM1# |
1 | ||
| 71603-5C750B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71603-52C50B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-5C010E0 |
NCP12 MD.NEUTRAL BONE,TRIM40 |
1 | ||
| 71604-52270B1 |
NCP12 GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52320B0 |
NCP12 LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52270B0 |
NCP12 LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52320B1 |
NCP12 GRAY,TRIM1#,TACHIESU |
1 | ||
| 71604-5C010B0 |
NCP12 MD.GRAY,TRIM17,19 |
1 | ||
| 71604-5C010 |
NCP12 TACHIESU |
1 | ||
| 71604-52B70B0 |
NCP12..4D MD.GRAY,TRIM1# |
1 | ||
| 71604-52B70E0 |
NCP12..4D MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71604-5C010B0 |
NCP12 MD.GRAY,TRIM17 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B0 |
NCP12 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-52010A0 |
NCP12 W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B0 |
NCP12 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010A0 |
NCP12 W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-52010B4 |
NCP12 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B2 |
NCP12 W/O(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12 W(LOCK),AMETHYST,TRIM9# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-52010B4 |
NCP12 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52040B0 |
NCP12 LT. AMETHYST,TRIM9# |
2 | ||
| 71940-52040B1 |
NCP12 GRAY,TRIM1# |
2 | ||
| 71940-52040E1 |
NCP12 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52040B3 |
NCP12 MD.GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52050 |
NCP12 |
1 | ||
| 72601-52050 |
NCP12 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52050 |
NCP12 |
1 | ||
| 72601-52050 |
NCP12 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52041 |
NCP12 |
1 | ||
| 72630-52041 |
NCP12 |
1 | ||
| 72630-52040 |
NCP12 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52030 |
NCP12 |
1 | ||
| 72640-52031 |
NCP12 |
1 | ||
| 72640-52031 |
NCP12 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010B2 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010E1 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010B2 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72646-33010B4 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72646-33010E1 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B0 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72661-32030B1 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM17,19 |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B0 |
NCP12 SHADOW GRAY,TRIM1# |
2 | ||
| 72661-32030B1 |
NCP12 AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM17,19 |
2 | ||
| 72661-32030B3 |
NCP12 DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E0 |
NCP12 FAWN,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP12 DK.GRAY,TRIM17,19,4# |
2 | ||
| 72679-20030C0 |
NCP12 BLACK,TRIM1#,9# |
2 | ||
| 72679-20030B1 |
NCP12..4D DK.GRAY,TRIM1#,4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP12 DK.GRAY,TRIM17,19,4# |
2 | ||
| 72679-20030C0 |
NCP12 BLACK,TRIM1#,9# |
2 | ||
| 72679-20030B1 |
NCP12..4D DK.GRAY,TRIM1#,4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP12 |
2 | ||
| 72693-10040 |
NCP12 |
2 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-10474 | ||||
| 90206-10018 | ||||
| 90901-19062 | ||||
| 91511-80816 | ||||
| 94185-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
