NCP12L-BDPRKK (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

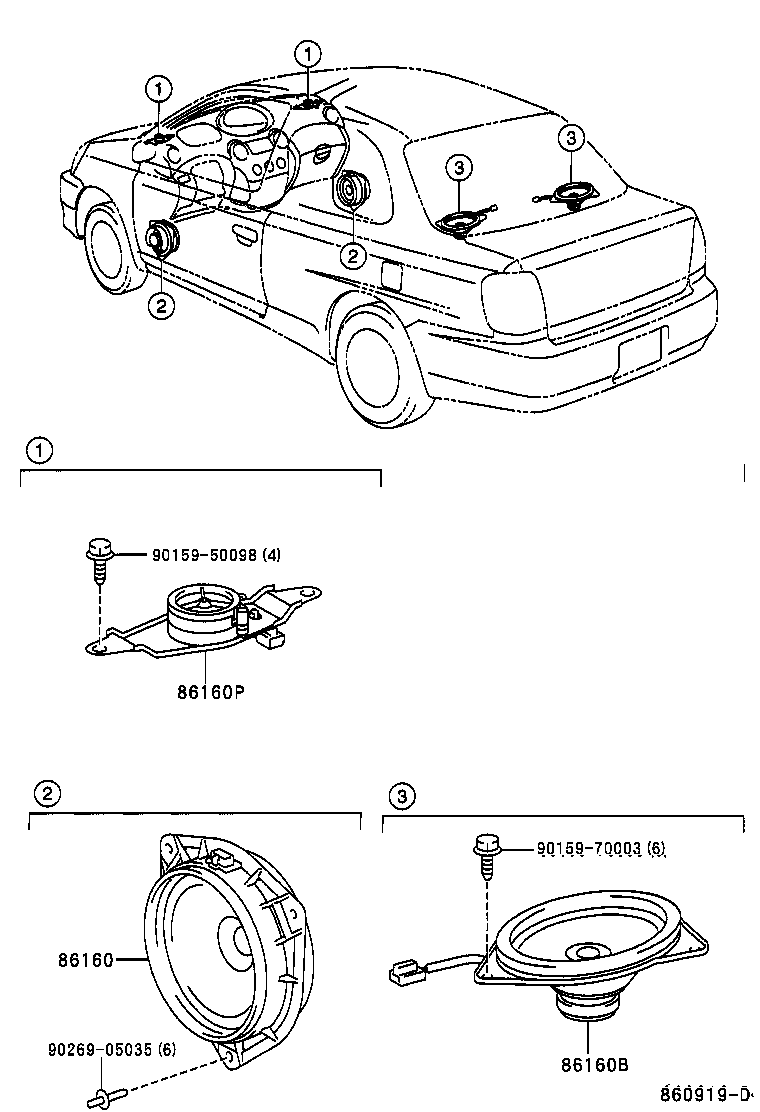

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-52070 |
NCP12 |
2 | ||
| 86160-52070 |
NCP12 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-52080 |
NCP12 |
2 | ||
| 86160-52150 |
NCP12 RH |
1 | ||
| 86160-52150 |
NCP12 RH |
1 | ||
| 86160-52160 |
NCP12 LH |
1 | ||
| 86160-52160 |
NCP12 LH |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-52090 |
NCP12 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 86160-52090 |
NCP12 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-70003 | ||||
| 90269-05035 | ||||
