NCP12L-BDPRKK (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

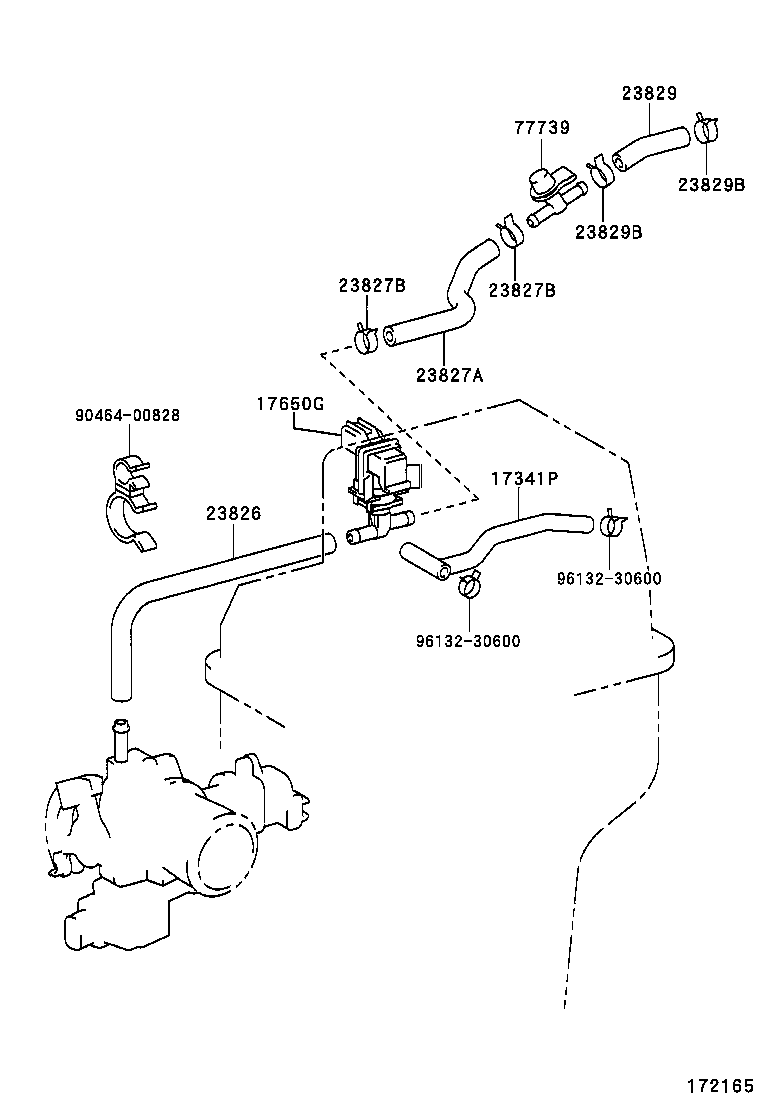

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-21010 |
1NZFE..NCP12 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12229 |
1NZFE..NCP12 |
1 | ||
| 90910-12263 |
1NZFE..NCP12 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 95328-07036 |
1NZFE..NCP12 |
1 | ||
| 95328-07036 |
1NZFE..NCP12 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-21020 |
1NZFE..NCP12 |
1 | ||
| 23827-21020 |
1NZFE..NCP12 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-21020 |
1NZFE..NCP12 |
1 | ||
| 23829-21020 |
1NZFE..NCP12 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 96132-41300 |
1NZFE..NCP12 |
2 | ||
| 77739 - VALVE, EVAP SERVICE PORT | ||||
| 77739-33010 |
NCP12 |
1 | ||
| 77739-33010 |
NCP12 |
1 | ||
| Common parts | ||||
| 90464-00828 | ||||
| 96132-30600 | ||||
