NCP12L-BDPRKK (1999)
Toyota Echo

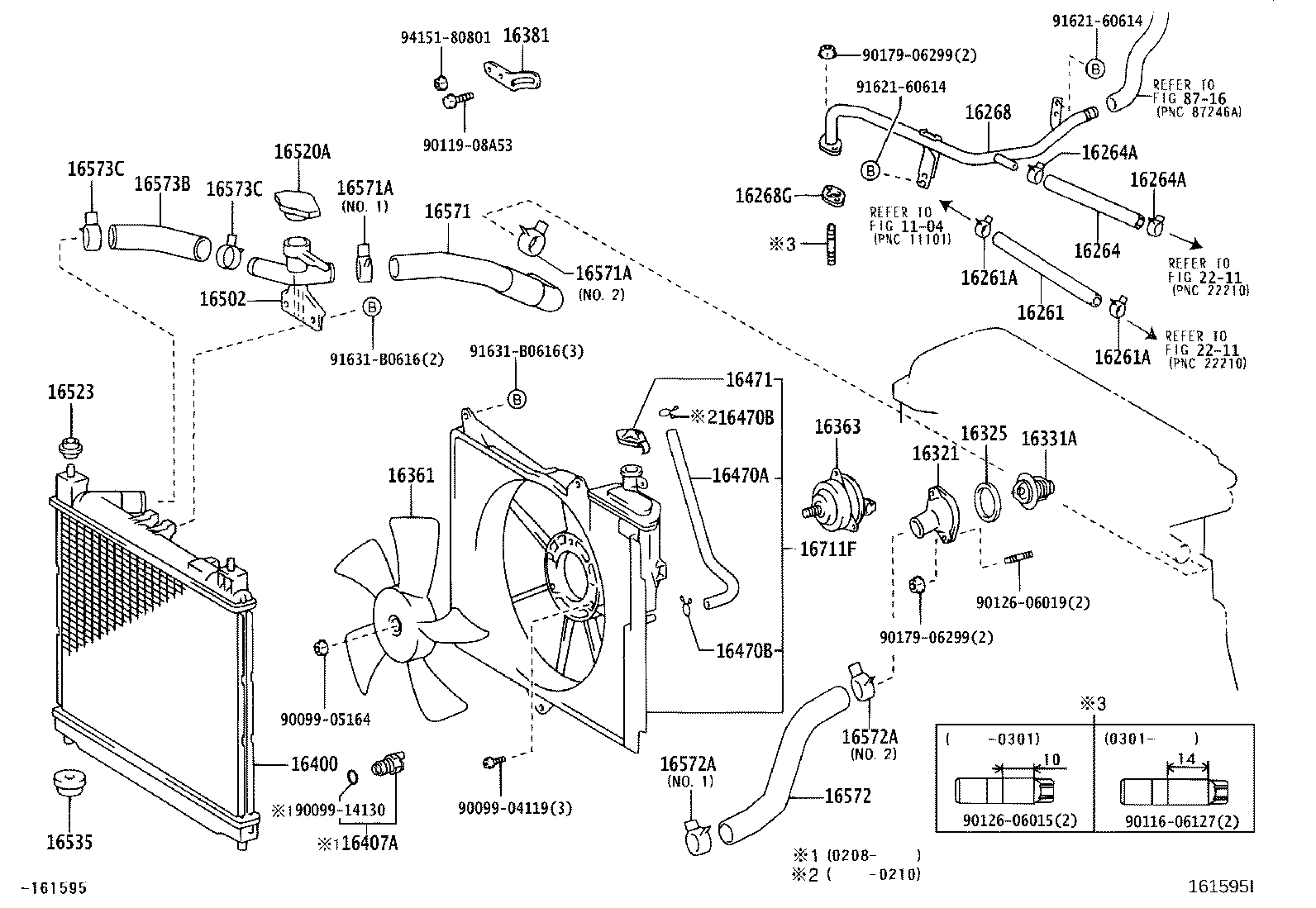

ILLUST NO. 1 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-10185 |
1NZFE..NCP12 L=185 |
1 | ||
| 99555-10185 |
1NZFE..NCP12 L=185 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-21040 |
1NZFE..NCP12 L=145 |
1 | ||
| 99555-10200 |
1NZFE..NCP12 *H,L=150 |
1 | ||
| 16261-21040 |
1NZFE..NCP12 L=145 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 90467-13054 |
1NZFE..NCP12 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21020 |
1NZFE..NCP12 |
1 | ||
| 16268-21020 |
1NZFE..NCP12 |
1 | ||
| 16268-21021 |
1NZFE..NCP12 |
1 | ||
| 16268-21022 |
1NZFE..NCP12 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
1NZFE..NCP12 |
1 | ||
| 16258-21010 |
1NZFE..NCP12 |
1 | ||
| 16258-21020 |
1NZFE..NCP12 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
1NZFE..NCP12 |
1 | ||
| 16321-21020 |
1NZFE..NCP12 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NZFE..NCP12 |
1 | ||
| 16325-62010 |
1NZFE..NCP12 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NZFE..NCP12 *WAX 82-95 |
1 | ||
| 90916-03093 |
1NZFE..NCP12 *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-23050 |
1NZFE..NCP12 |
1 | ||
| 16361-23050 |
1NZFE..NCP12 |
1 | ||
| 16361-21050 |
1NZFE..NCP12 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-21050 |
1NZFE..NCP12 |
1 | ||
| 16363-23030 |
1NZFE..NCP12 |
1 | ||
| 16363-23030 |
1NZFE..NCP12 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-21030 |
1NZFE..NCP12 |
1 | ||
| 16381-21030 |
1NZFE..NCP12 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21070 |
1NZFE..NCP12..ATM |
1 | ||
| 16400-21070 |
1NZFE..NCP12..ATM |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-7A130 |
1NZFE..NCP12 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1NZFE..NCP12 *H,L=430 |
1 | ||
| 90445-12078 |
1NZFE..NCP12 *H,L=430 |
1 | ||
| 16377-21020 |
1NZFE..NCP12 *H,L=545 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP12 |
1 | ||
| 90467-11085 |
1NZFE..NCP12 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP12 |
1 | ||
| 90467-11085 |
1NZFE..NCP12 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE..NCP12 |
1 | ||
| 16471-23010 |
1NZFE..NCP12 |
1 | ||
| 16471-23030 |
1NZFE..NCP12 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-21010 |
1NZFE..NCP12 |
1 | ||
| 16502-21010 |
1NZFE..NCP12 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-62100 |
1NZFE..NCP12 |
1 | ||
| 16401-62100 |
1NZFE..NCP12 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-23010 |
1NZFE..NCP12 |
2 | ||
| 16523-23010 |
1NZFE..NCP12 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1NZFE..NCP12 |
2 | ||
| 90480-40016 |
1NZFE..NCP12 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21020 |
1NZFE..NCP12 |
1 | ||
| 16571-21020 |
1NZFE..NCP12 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.1 OR NO.2 |
2 | ||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.1 OR NO.2 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.1 OR NO.2 |
2 | ||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.1 OR NO.2 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21020 |
1NZFE..NCP12 |
1 | ||
| 16572-21020 |
1NZFE..NCP12 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90467-34003 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21010 |
1NZFE..NCP12 |
1 | ||
| 16573-21010 |
1NZFE..NCP12 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP12 |
2 | ||
| 90467-33006 |
1NZFE..NCP12 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP12 |
2 | ||
| 90467-33006 |
1NZFE..NCP12 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-21030 |
1NZFE..NCP12 |
1 | ||
| 16711-21030 |
1NZFE..NCP12 |
1 | ||
| 16711-21120 |
1NZFE..NCP12 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90099-14130 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06015 | ||||
| 90126-06019 | ||||
| 90179-06299 | ||||
| 91621-60614 | ||||
| 91631-B0616 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 8716 | ||||

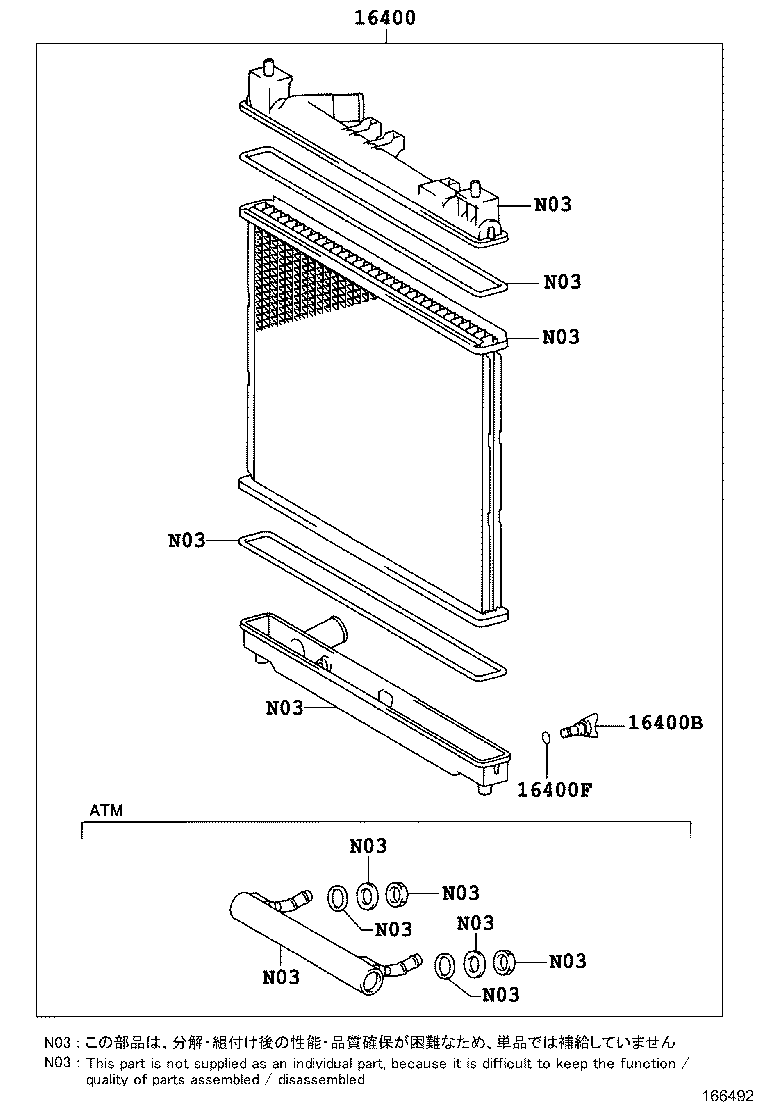

ILLUST NO. 2 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-21070 |
1NZFE..NCP12..ATM |
1 | ||
| 16400-21070 |
1NZFE..NCP12..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1NZFE..NCP12 |
1 | ||
| 23322-54010 |
1NZFE..NCP12 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NCP12 |
1 | ||
| 16492-21050 |
1NZFE..NCP12 |
1 | ||
