NCP12L-BDPRKK (1999)
Toyota Echo

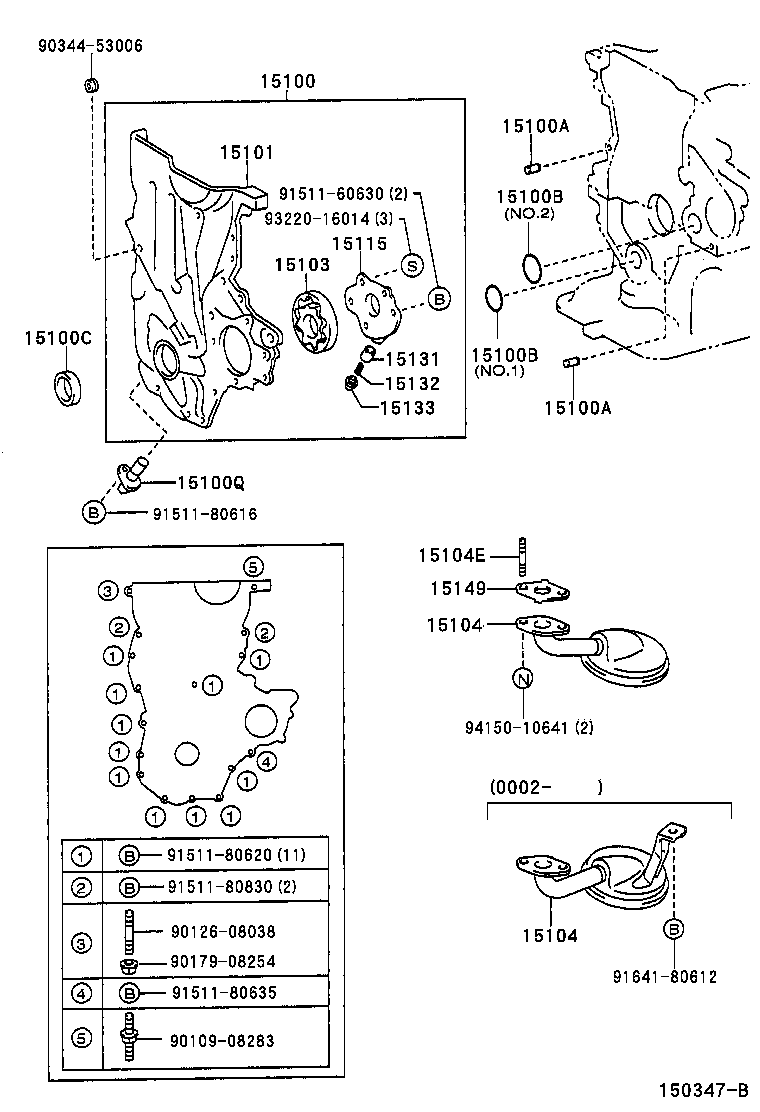

(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-21040 |
1NZFE..NCP12 |
1 | ||
| 15100-21040 |
1NZFE..NCP12 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-25021 |
1NZFE..NCP12 |
1 | ||
| 90311-25021 |
1NZFE..NCP12 |
1 | ||
| 15100Q - SENSOR, CRANK POSITION | ||||
| 90919-05045 |
1NZFE..NCP12 |
1 | ||
| 90919-05045 |
1NZFE..NCP12 |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15111-21040 |
1NZFE..NCP12 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-21020 |
1NZFE..NCP12 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104-21020 |
1NZFE..NCP12 |
1 | ||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104-21020 |
1NZFE..NCP12 |
1 | ||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104E - BOLT, STUD(FOR OIL STRAINER) | ||||
| 90126-06021 |
1NZFE..NCP12 |
2 | ||
| 90126-06021 |
1NZFE..NCP12 |
2 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-21030 |
1NZFE..NCP12 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-21020 |
1NZFE..NCP12 |
1 | ||
| 15131-21020 |
1NZFE..NCP12 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-21020 |
1NZFE..NCP12 |
1 | ||
| 15132-21020 |
1NZFE..NCP12 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-21030 |
1NZFE..NCP12 |
1 | ||
| 15133-21020 |
1NZFE..NCP12 |
1 | ||
| 15133-21020 |
1NZFE..NCP12 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 16258-21030 |
1NZFE..NCP12 |
1 | ||
| 16258-21010 |
1NZFE..NCP12 |
1 | ||
| 16258-21010 |
1NZFE..NCP12 |
1 | ||
| Common parts | ||||
| 90109-08283 | ||||
| 90126-08038 | ||||
| 90179-08254 | ||||
| 90344-53006 | ||||
| 91511-60630 | ||||
| 91511-80616 | ||||
| 91511-80620 | ||||
| 91511-80635 | ||||
| 91511-80830 | ||||
| 91641-80612 | ||||
| 93220-16014 | ||||
| 94150-10641 | ||||

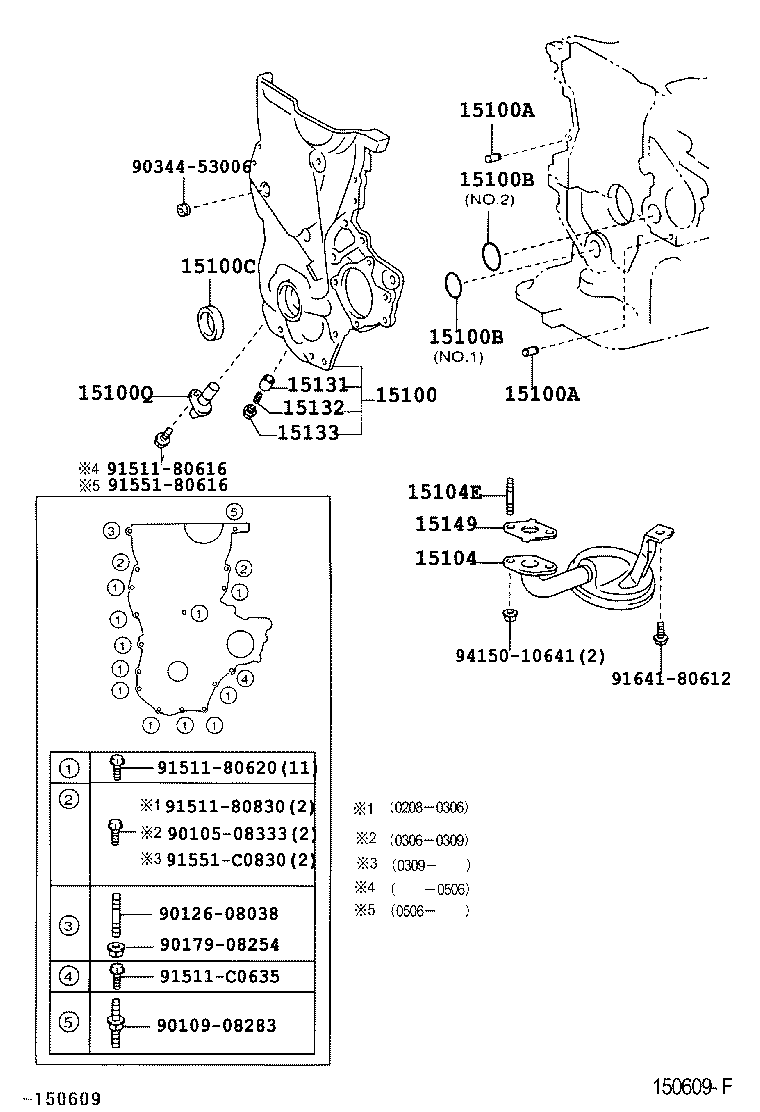

(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-21040 |
1NZFE..NCP12 |
1 | ||
| 15100-21040 |
1NZFE..NCP12 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 90253-08003 |
1NZFE..NCP12 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-42006 |
1NZFE..NCP12 NO.2 |
1 | ||
| 90301-31012 |
1NZFE..NCP12 NO.1 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-25021 |
1NZFE..NCP12 |
1 | ||
| 90311-25021 |
1NZFE..NCP12 |
1 | ||
| 15100Q - SENSOR, CRANK POSITION | ||||
| 90919-05045 |
1NZFE..NCP12 |
1 | ||
| 90919-05045 |
1NZFE..NCP12 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104-21020 |
1NZFE..NCP12 |
1 | ||
| 15104-21021 |
1NZFE..NCP12 |
1 | ||
| 15104E - BOLT, STUD(FOR OIL STRAINER) | ||||
| 90126-06021 |
1NZFE..NCP12 |
2 | ||
| 90126-06021 |
1NZFE..NCP12 |
2 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-21020 |
1NZFE..NCP12 |
1 | ||
| 15131-21020 |
1NZFE..NCP12 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-21020 |
1NZFE..NCP12 |
1 | ||
| 15132-21020 |
1NZFE..NCP12 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-21030 |
1NZFE..NCP12 |
1 | ||
| 15133-21020 |
1NZFE..NCP12 |
1 | ||
| 15133-21020 |
1NZFE..NCP12 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 16258-21030 |
1NZFE..NCP12 |
1 | ||
| 16258-21010 |
1NZFE..NCP12 |
1 | ||
| 16258-21010 |
1NZFE..NCP12 |
1 | ||
| Common parts | ||||
| 90105-08333 | ||||
| 90109-08283 | ||||
| 90126-08038 | ||||
| 90179-08254 | ||||
| 90344-53006 | ||||
| 91511-80616 | ||||
| 91511-80620 | ||||
| 91511-80830 | ||||
| 91511-C0635 | ||||
| 91551-80616 | ||||
| 91551-C0830 | ||||
| 91641-80612 | ||||
| 94150-10641 | ||||
