NCP12L-BDPRKA (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

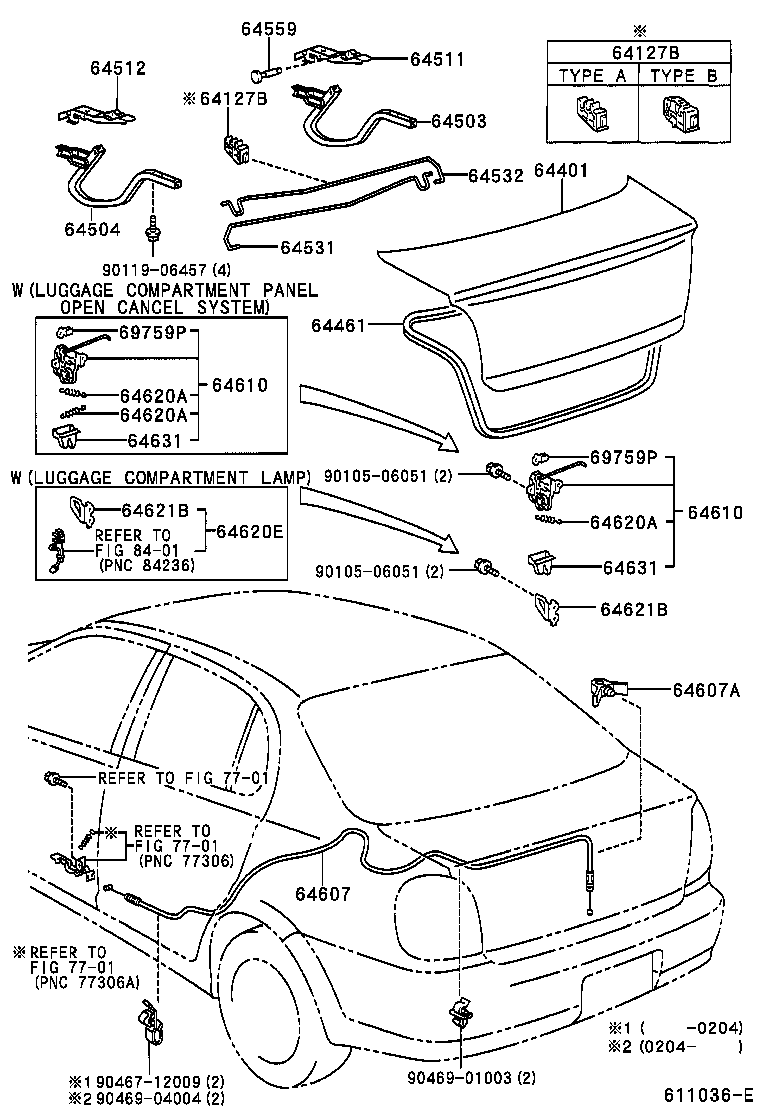

Click highlighted areas on diagram

diagram 64127B 64127B 64401 64461 64503 64504 64511 64512 64531 64532 64559 64607 64607A 64610 64610 64620A 64620A 64620A 64620E 64621B 64621B 64631 64631 69759P 69759P 7701 7701 7701 8401 9010506051 9010506051 9011906457 9046712009 9046901003 9046904004
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-52020

NCP12

W(REAR SPOILER)

 1
64401-52010

NCP12

 1
64401-52091

NCP12

W(REAR SPOILER)

 1
64401-52081

NCP12

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-52010

NCP12

 1
64461-52010

NCP12

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-16040

NCP12

 1
64503-16040

NCP12

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-16040

NCP12

 1
64503-16040

NCP12

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-52010

NCP12

 1
64511-52010

NCP12

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-52010

NCP12

 1
64511-52010

NCP12

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-52010

NCP12

 1
64531-52020

NCP12

W(REAR SPOILER)

 1
64531-52040

NCP12

W(REAR SPOILER)

 1
64531-52030

NCP12

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-52020

NCP12

W(REAR SPOILER)

 1
64532-52040

NCP12

W(REAR SPOILER)

 1
64532-52030

NCP12

 1
64532-52010

NCP12

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-52010

NCP12

 2
64559-52010

NCP12

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-52020

NCP12

 1
64607-52020

NCP12

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01369

NCP12

 3
90959-01369

NCP12

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-52070

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610-52040

NCP12

 1
64610-52020

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-52070

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610-52040

NCP12

 1
64610-52020

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-47010

NCP12

 1
64620-47010

NCP12

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-16020

NCP12

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-16020

NCP12

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-16020

NCP12

 1
64631-12050

NCP12

 1
64631-12050

NCP12

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-16020

NCP12

 1
64631-12050

NCP12

 1
64631-12050

NCP12

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040

NCP12

YELLOW

 1
69759-20050

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
69759-20050

NCP12

BROWN

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040

NCP12

YELLOW

 1
69759-20050

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
69759-20050

NCP12

BROWN

 1
Common parts
90105-06051
90119-06457
90467-12009
90469-01003
90469-04004
Linked diagrams
7701
8401

(0208- )

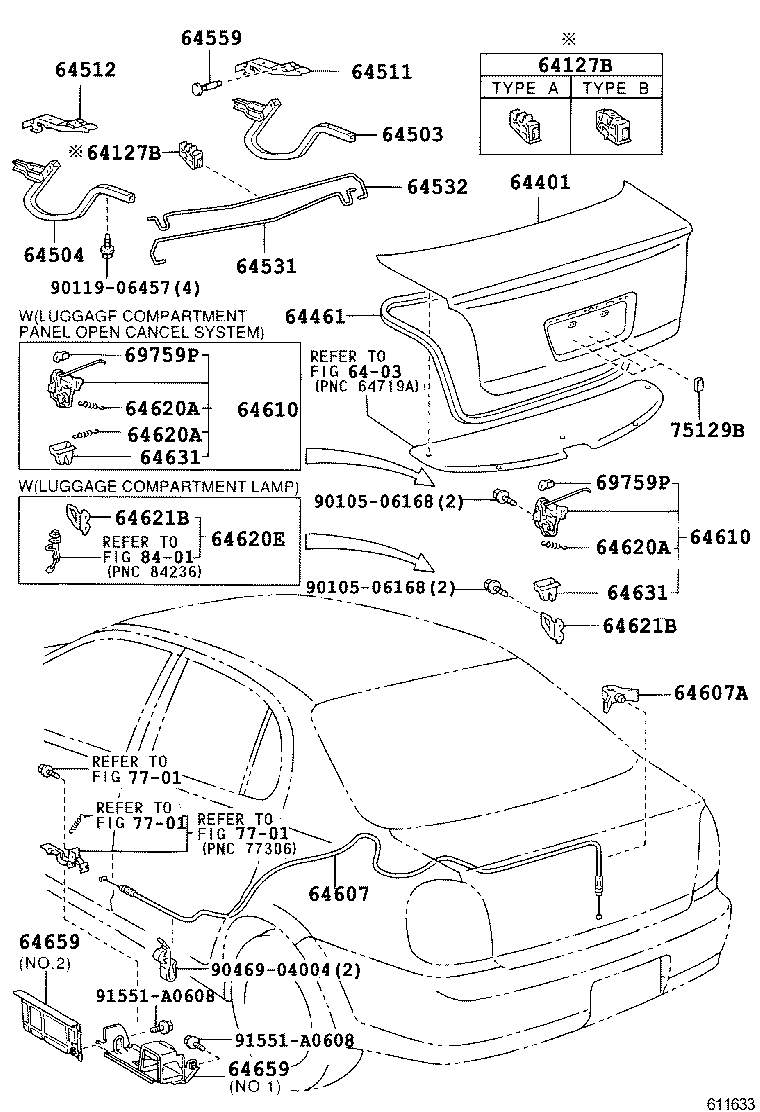

Click highlighted areas on diagram

diagram 6403 64127B 64127B 64401 64461 64503 64504 64511 64512 64531 64532 64559 64607 64607A 64610 64610 64620A 64620A 64620A 64620E 64621B 64621B 64631 64631 64659 64659 69759P 69759P 75129B 7701 7701 7701 8401 9010506168 9010506168 9011906457 9046904004 91551A0608 91551A0608
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64127-16070

NCP12

TYPE B:REFER TO ILLUSTRATION

 1
64127-20120

NCP12

TYPE A:REFER TO ILLUSTRATION

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-52020

NCP12

W(REAR SPOILER)

 1
64401-52010

NCP12

 1
64401-52091

NCP12

W(REAR SPOILER)

 1
64401-52081

NCP12

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-52010

NCP12

 1
64461-52010

NCP12

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-16040

NCP12

 1
64503-16040

NCP12

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-16040

NCP12

 1
64503-16040

NCP12

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-52010

NCP12

 1
64511-52010

NCP12

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-52010

NCP12

 1
64511-52010

NCP12

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-52010

NCP12

 1
64531-52020

NCP12

W(REAR SPOILER)

 1
64531-52040

NCP12

W(REAR SPOILER)

 1
64531-52030

NCP12

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-52020

NCP12

W(REAR SPOILER)

 1
64532-52040

NCP12

W(REAR SPOILER)

 1
64532-52030

NCP12

 1
64532-52010

NCP12

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-52010

NCP12

 2
64559-52010

NCP12

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-52020

NCP12

 1
64607-52020

NCP12

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01369

NCP12

 3
90959-01369

NCP12

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-52070

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610-52040

NCP12

 1
64610-52020

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-52070

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64610-52040

NCP12

 1
64610-52020

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90905-06021

NCP12

L=23.6

 1
90506-05002

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90506-06008

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3

 1
90905-06021

NCP12

L=23.6

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-47010

NCP12

 1
64620-47010

NCP12

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-16020

NCP12

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-16020

NCP12

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-16020

NCP12

 1
64631-12050

NCP12

 1
64631-12050

NCP12

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-16020

NCP12

 1
64631-12050

NCP12

 1
64631-12050

NCP12

 1
64659 - BRACKET, LUGGAGE CONTROL CABLE, LH
64659-52010

NCP12

NO.1

 1
64659-52020

NCP12

NO.2

 1
64659 - BRACKET, LUGGAGE CONTROL CABLE, LH
64659-52010

NCP12

NO.1

 1
64659-52020

NCP12

NO.2

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040

NCP12

YELLOW

 1
69759-20050

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
69759-20050

NCP12

BROWN

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040

NCP12

YELLOW

 1
69759-20050

NCP12

W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)

 1
69759-20050

NCP12

BROWN

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-13020

NCP12

 2
Common parts
90105-06168
90119-06457
90469-04004
91551-A0608
Linked diagrams
6403
7701
8401
