NCP12L-BDPRKA (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

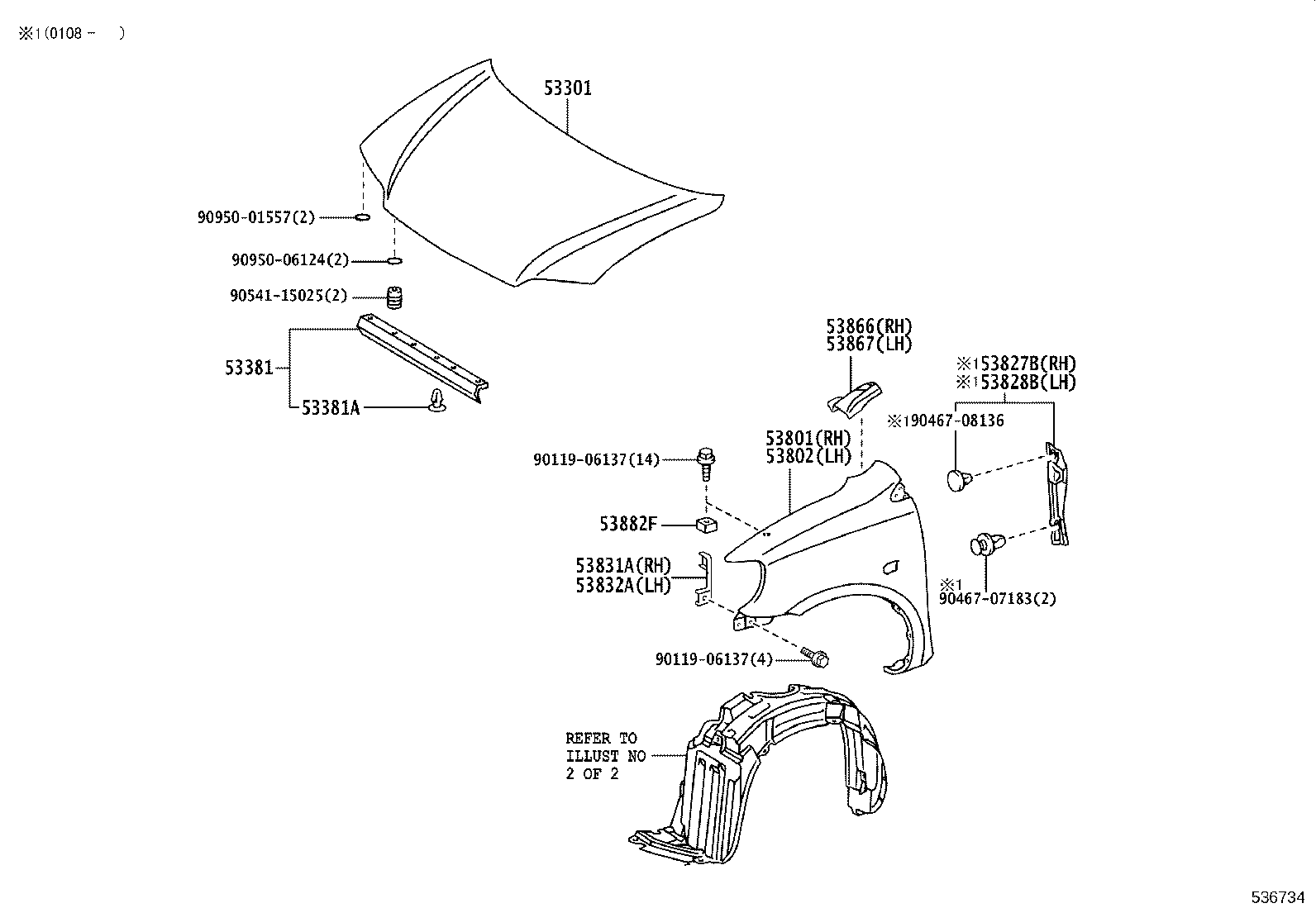

ILLUST NO. 1 OF 2(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-52060 |
NCP12 |
1 | ||
| 53301-52150 |
NCP12 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-52010 |
NCP12 |
1 | ||
| 53381-52010 |
NCP12 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
NCP12 |
6 | ||
| 90467-08011 |
NCP12 |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-52030 |
NCP12 |
1 | ||
| 53811-52050 |
NCP12 |
1 | ||
| 53811-52070 |
NCP12 W(SIDE MUDGUARD) |
1 | ||
| 53801-52040 |
NCP12 W(SIDE MUDGUARD) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-52040 |
NCP12 |
1 | ||
| 53802-52030 |
NCP12 |
1 | ||
| 53812-52070 |
NCP12 W(SIDE MUDGUARD) |
1 | ||
| 53802-52040 |
NCP12 W(SIDE MUDGUARD) |
1 | ||
| 53827B - PROTECTOR, FRONT FENDER SIDE PANEL | ||||
| 53827-52041 |
NCP12 |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-52041 |
NCP12 |
1 | ||
| 53831A - PANEL, FRONT FENDER SIDE, UPPER RH | ||||
| 53831-52010 |
NCP12 |
1 | ||
| 53831-52040 |
NCP12 |
1 | ||
| 53832A - PANEL, FRONT FENDER SIDE, UPPER LH | ||||
| 53832-52010 |
NCP12 |
1 | ||
| 53832-52040 |
NCP12 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-52010 |
NCP12 |
1 | ||
| 53866-52010 |
NCP12 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-52010 |
NCP12 |
1 | ||
| 53867-52010 |
NCP12 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NCP12 |
10 | ||
| 53882-16030 |
NCP12 |
10 | ||
| 53882-16030 |
NCP12 |
16 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-07183 | ||||
| 90467-08136 | ||||
| 90541-15025 | ||||
| 90950-01557 | ||||
| 90950-06124 | ||||

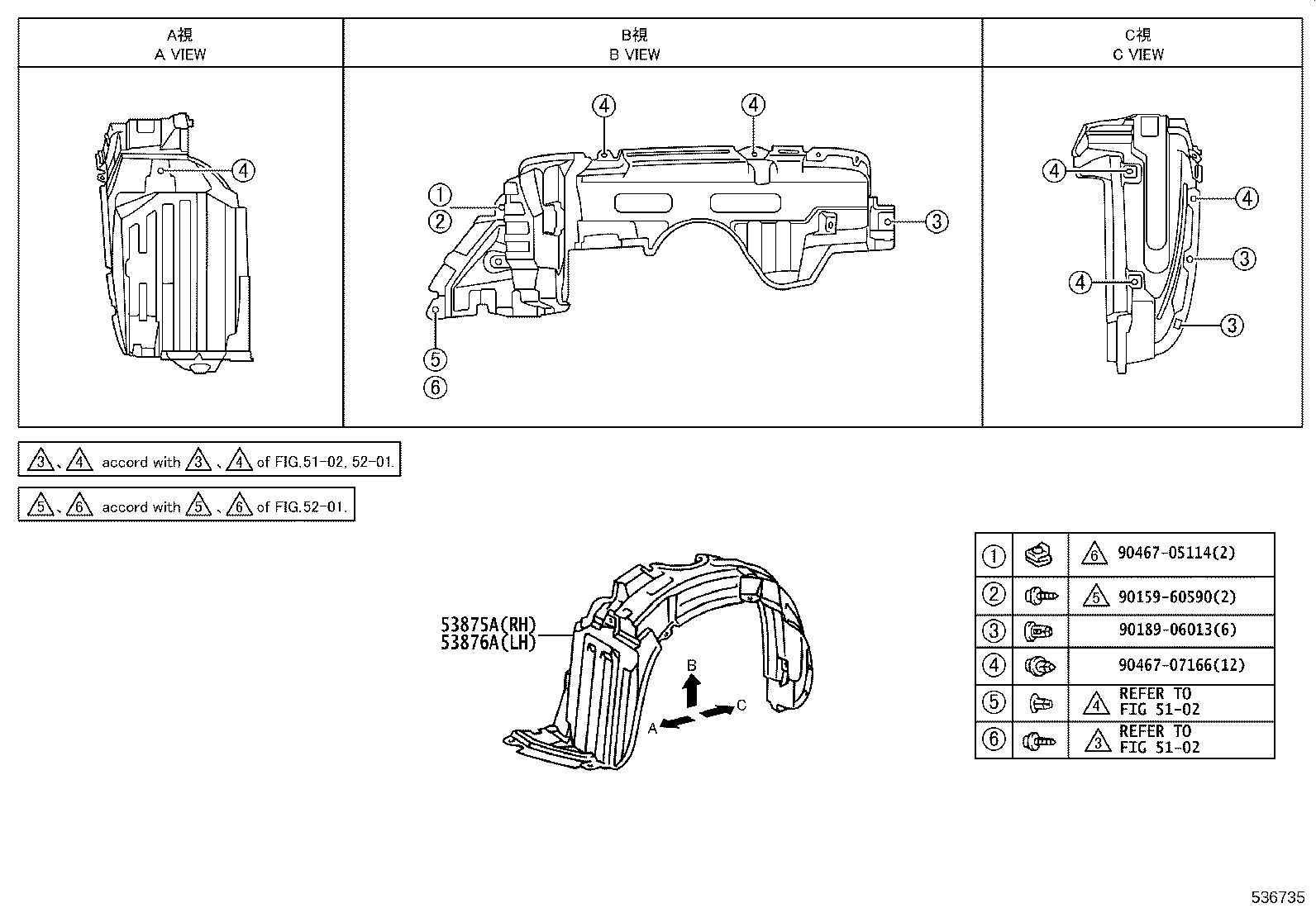

ILLUST NO. 2 OF 2(9908- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-52011 |
NCP12 |
1 | ||
| 53875-52012 |
NCP12 |
1 | ||
| 53875-52010 |
NCP12 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-52012 |
NCP12 |
1 | ||
| 53876-52010 |
NCP12 |
1 | ||
| 53876-52011 |
NCP12 |
1 | ||
| Common parts | ||||
| 90159-60590 | ||||
| 90189-06013 | ||||
| 90467-05114 | ||||
| 90467-07166 | ||||
| Linked diagrams | ||||
| 5102 | ||||
