NCP12L-BDPRKA (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

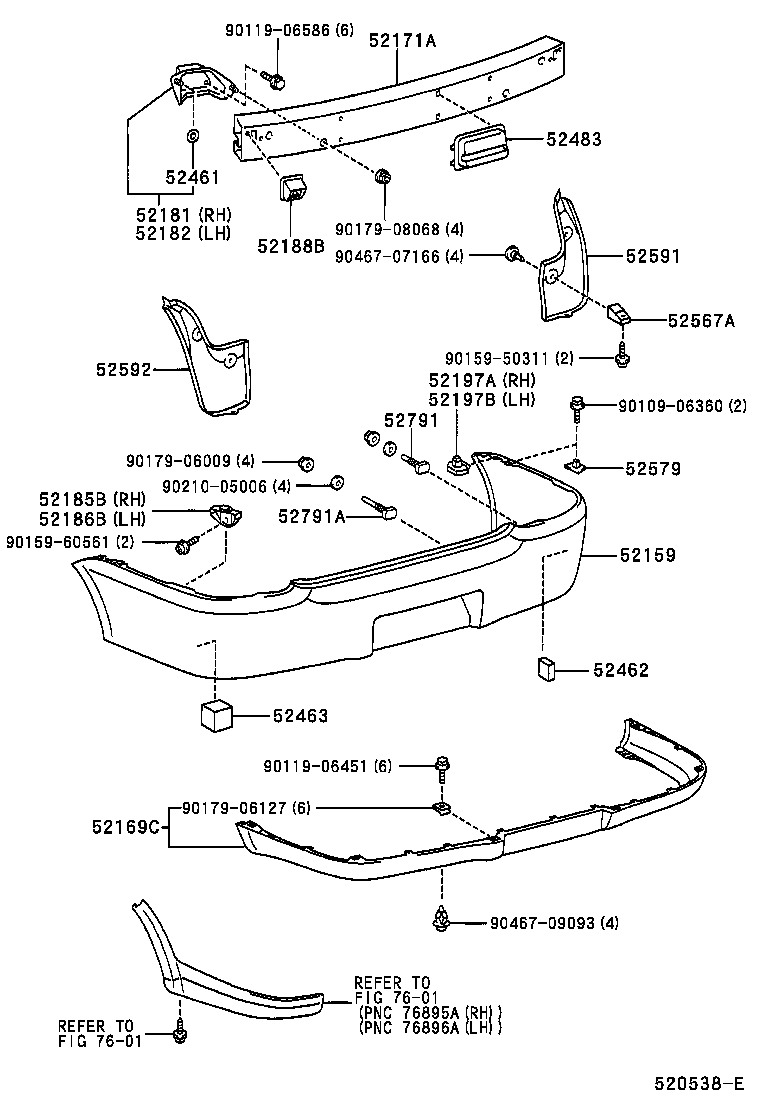

(9908-0208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52200 |
NCP12 W(BUMPER SPOILER) |
1 | ||
| 52159-52901 |
NCP12 W(BUMPER SPOILER) |
1 | ||
| 52159-52340 |
NCP12 |
1 | ||
| 52159-52380 |
NCP12..USA W(BUMPER SPOILER) |
1 | ||
| 52159-52090 |
NCP12 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-52030 |
NCP12 W(BUMPER SPOILER) |
1 | ||
| 52169-52010 |
NCP12 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-52020 |
NCP12 |
1 | ||
| 52171-52020 |
NCP12 |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-52010 |
NCP12 |
1 | ||
| 52181-52030 |
NCP12 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-52010 |
NCP12 |
1 | ||
| 52182-52030 |
NCP12 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-52020 |
NCP12 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-52020 |
NCP12 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-52010 |
NCP12 |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-52010 |
NCP12 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 53882-30040 |
NCP12 |
4 | ||
| 53882-30040 |
NCP12 |
4 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-52010 |
NCP12 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-52010 |
NCP12 |
1 | ||
| 52483 - BRACKET, REAR BUMPER SHIELD, CENTER | ||||
| 52483-52020 |
NCP12 |
1 | ||
| 52483-52010 |
NCP12 |
1 | ||
| 52483-52010 |
NCP12 |
1 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP12 |
2 | ||
| 52567-52020 |
NCP12 |
2 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
NCP12 |
2 | ||
| 52579-52010 |
NCP12 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52100 |
NCP12 |
1 | ||
| 52591-52040 |
NCP12 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52040 |
NCP12 |
1 | ||
| 52592-52090 |
NCP12 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
NCP12 |
2 | ||
| 90109-06354 |
NCP12 |
2 | ||
| 52791-12010 |
NCP12 |
2 | ||
| 52791A - BOLT, BUMPER MOULDING SET, NO.2 | ||||
| 52791-32010 |
NCP12 |
2 | ||
| 52791-12040 |
NCP12 |
2 | ||
| Common parts | ||||
| 90109-06360 | ||||
| 90119-06451 | ||||
| 90119-06586 | ||||
| 90159-50311 | ||||
| 90159-60561 | ||||
| 90179-06009 | ||||
| 90179-06127 | ||||
| 90179-08068 | ||||
| 90210-05006 | ||||
| 90467-07166 | ||||
| 90467-09093 | ||||
| Linked diagrams | ||||
| 7601 | ||||

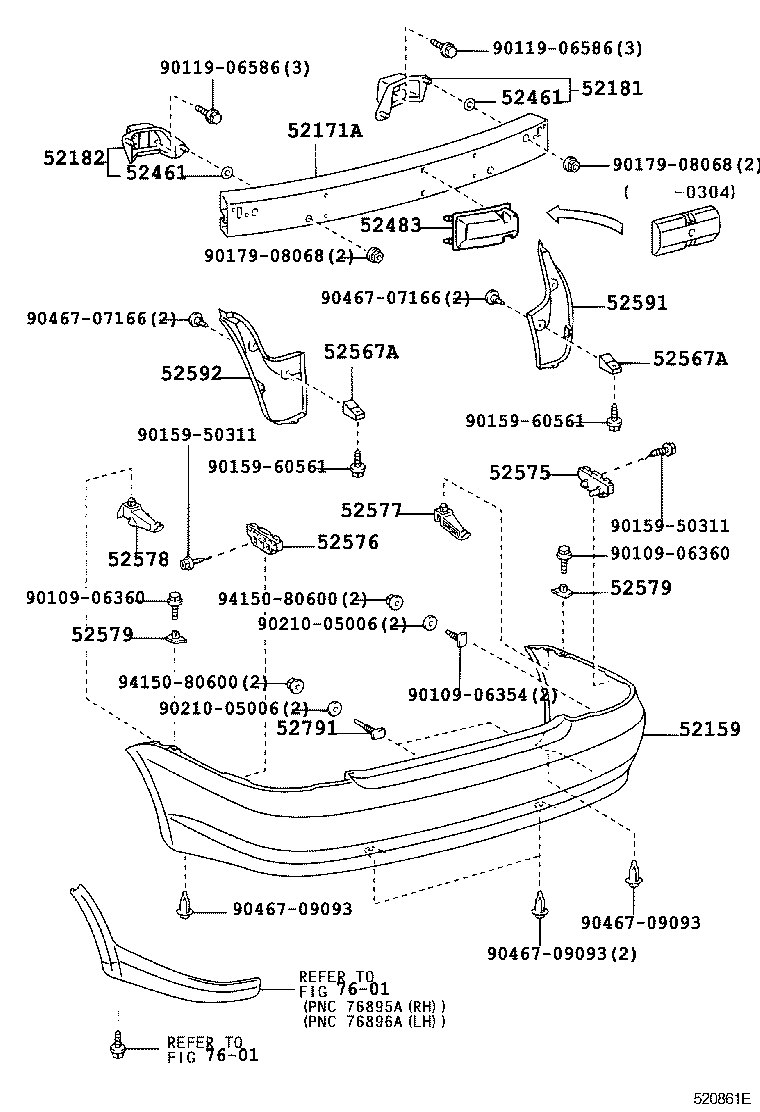

(0208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52200 |
NCP12 W(BUMPER SPOILER) |
1 | ||
| 52159-52901 |
NCP12 W(BUMPER SPOILER) |
1 | ||
| 52159-52340 |
NCP12 |
1 | ||
| 52159-52380 |
NCP12..USA W(BUMPER SPOILER) |
1 | ||
| 52159-52090 |
NCP12 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-52020 |
NCP12 |
1 | ||
| 52171-52020 |
NCP12 |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-52010 |
NCP12 |
1 | ||
| 52181-52030 |
NCP12 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-52010 |
NCP12 |
1 | ||
| 52182-52030 |
NCP12 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 53882-30040 |
NCP12 |
4 | ||
| 53882-30040 |
NCP12 |
4 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 53882-30040 |
NCP12 |
4 | ||
| 53882-30040 |
NCP12 |
4 | ||
| 52483 - BRACKET, REAR BUMPER SHIELD, CENTER | ||||
| 52483-52020 |
NCP12 |
1 | ||
| 52483-52010 |
NCP12 |
1 | ||
| 52483-52010 |
NCP12 |
1 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP12 |
2 | ||
| 52567-52020 |
NCP12 |
2 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP12 |
2 | ||
| 52567-52020 |
NCP12 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52070 |
NCP12 |
1 | ||
| 52575-52071 |
NCP12 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-52070 |
NCP12 |
1 | ||
| 52575-52071 |
NCP12 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-52010 |
NCP12 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-52010 |
NCP12 |
1 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
NCP12 |
2 | ||
| 52579-52010 |
NCP12 |
2 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
NCP12 |
2 | ||
| 52579-52010 |
NCP12 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52100 |
NCP12 |
1 | ||
| 52591-52040 |
NCP12 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52040 |
NCP12 |
1 | ||
| 52592-52090 |
NCP12 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
NCP12 |
2 | ||
| 90109-06354 |
NCP12 |
2 | ||
| 52791-12010 |
NCP12 |
2 | ||
| Common parts | ||||
| 90109-06354 | ||||
| 90109-06360 | ||||
| 90119-06586 | ||||
| 90159-50311 | ||||
| 90159-60561 | ||||
| 90179-08068 | ||||
| 90210-05006 | ||||
| 90467-07166 | ||||
| 90467-09093 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 7601 | ||||
