NCP12L-BDPRKA (1999)
Toyota Echo
(0306- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10464 | None epc.PartDetail.None | |||
| 90119-06559 | None epc.PartDetail.None | |||
| 91512-G1025 | None epc.PartDetail.None | |||

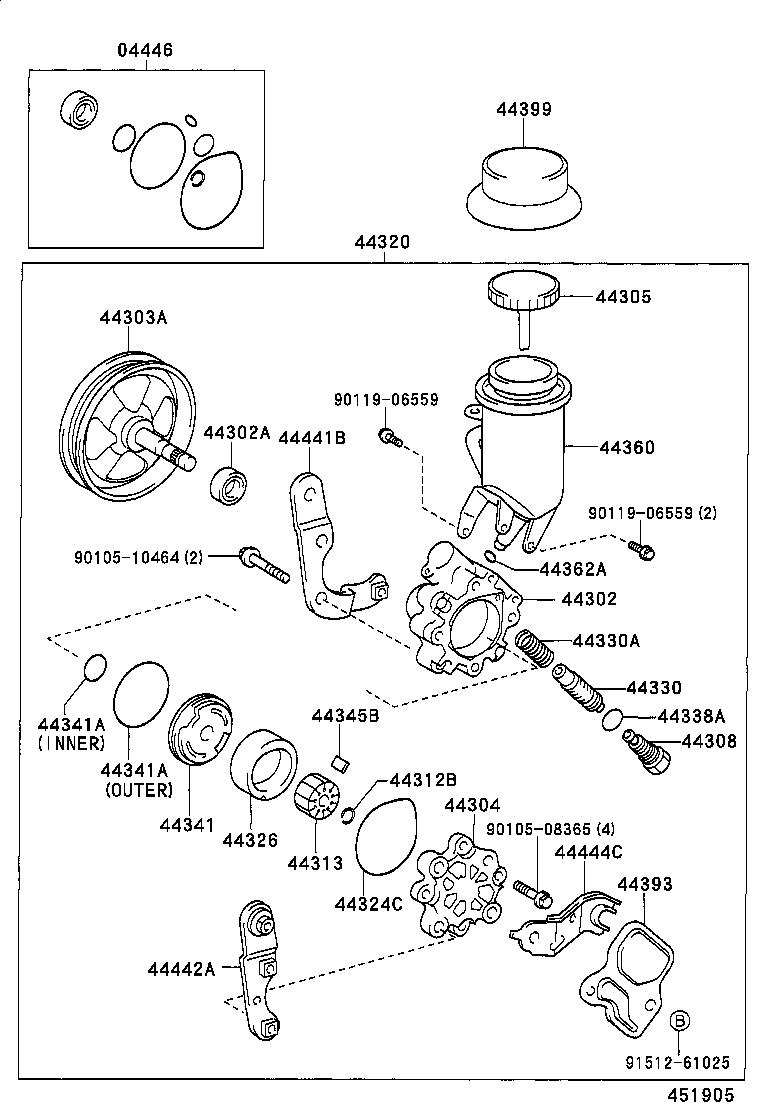

(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
NCP12 |
1 | ||
| 04446-32050 |
NCP12 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-52020 |
NCP12 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-15012 |
NCP12 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-52020 |
NCP12 |
1 | ||
| 44303-52020 |
NCP12 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-52021 |
NCP12 |
1 | ||
| 44304-52020 |
NCP12 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-50010 |
NCP12 |
1 | ||
| 44305-50010 |
NCP12 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-52020 |
NCP12 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
NCP12 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32060 |
NCP12 NO MARK |
1 | ||
| 44313-32070 |
NCP12 MARK 1 |
1 | ||
| 44313-32080 |
NCP12 MARK 2 |
1 | ||
| 44313-32100 |
NCP12 MARK 4 |
1 | ||
| 44313-32090 |
NCP12 MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-52020 |
NCP12 |
1 | ||
| 44310-52020 |
NCP12 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90903-01007 |
NCP12 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-52020 |
NCP12 MARK 1 |
1 | ||
| 44325-52050 |
NCP12 MARK 4 |
1 | ||
| 44325-52010 |
NCP12 NO MARK |
1 | ||
| 44325-52040 |
NCP12 MARK 3 |
1 | ||
| 44325-52030 |
NCP12 MARK 2 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-52010 |
NCP12 MARK A |
1 | ||
| 44330-52060 |
NCP12 MARK F |
1 | ||
| 44330-52020 |
NCP12 MARK B |
1 | ||
| 44330-52030 |
NCP12 MARK C |
1 | ||
| 44330-52040 |
NCP12 MARK D |
1 | ||
| 44330-52050 |
NCP12 MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
NCP12 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-18009 |
NCP12 OD=22,ID=18.6 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32030 |
NCP12 |
1 | ||
| 44341-32031 |
NCP12 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
NCP12 OUTER |
1 | ||
| 90301-16012 |
NCP12 INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
NCP12 OUTER |
1 | ||
| 90301-16012 |
NCP12 INNER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-32120 |
NCP12 ROTOR MARK 2 |
10 | ||
| 44345-32100 |
NCP12 ROTOR NO MARK |
10 | ||
| 44345-32110 |
NCP12 ROTOR MARK 1 |
10 | ||
| 44345-32130 |
NCP12 ROTOR MARK 3 |
10 | ||
| 44345-32140 |
NCP12 ROTOR MARK 4 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-52020 |
NCP12 |
1 | ||
| 44306-52020 |
NCP12 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11020 |
NCP12 |
1 | ||
| 90301-11020 |
NCP12 |
1 | ||
| 44393 - INSULATOR, POWER STEERING PUMP HEAT | ||||
| 44393-52010 |
NCP12 |
1 | ||
| 44393-52010 |
NCP12 |
1 | ||
| 44399 - COVER, VANE PUMP OIL RESERVOIR | ||||
| 44399-52010 |
NCP12 |
1 | ||
| 44399-52010 |
NCP12 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-52010 |
NCP12 |
1 | ||
| 44441-52010 |
NCP12 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-52020 |
NCP12 |
1 | ||
| 44442-52020 |
NCP12 |
1 | ||
| 44444C - STAY, VANE PUMP, REAR | ||||
| 44444-52010 |
NCP12 |
1 | ||
| 44444-52010 |
NCP12 |
1 | ||
| Common parts | ||||
| 90105-08365 | None epc.PartDetail.None | |||
| 90105-10464 | None epc.PartDetail.None | |||
| 90119-06559 | None epc.PartDetail.None | |||
| 91512-61025 | None epc.PartDetail.None | |||

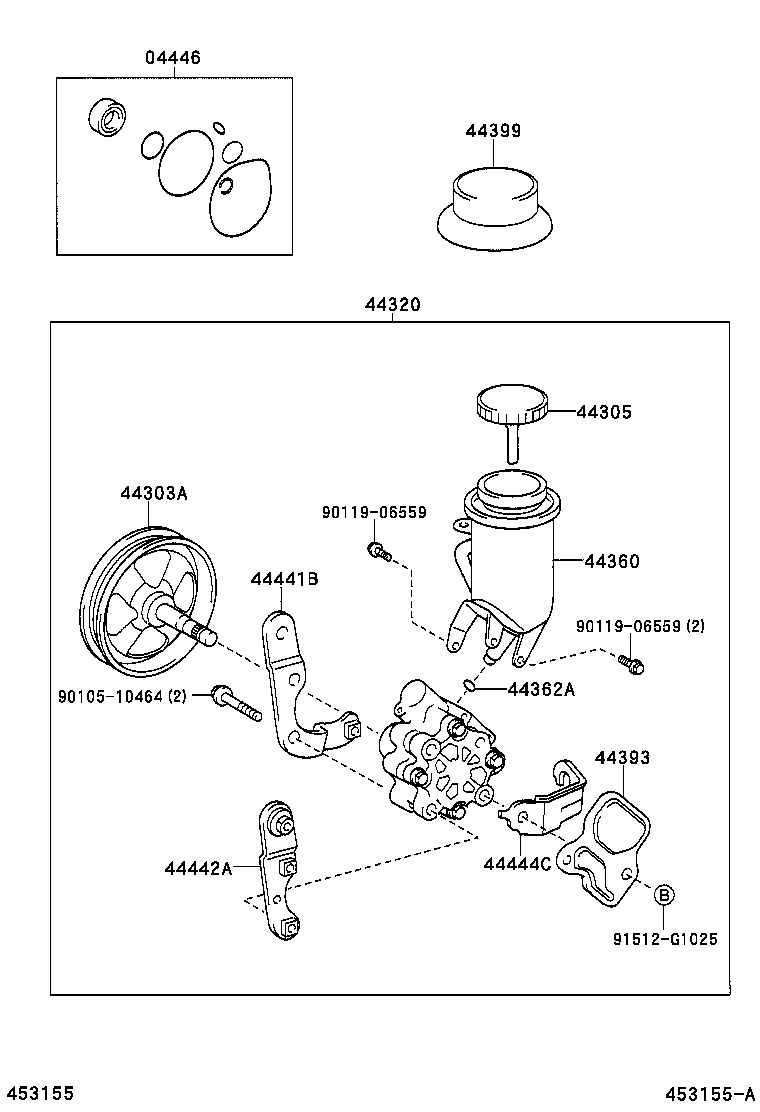

(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
NCP12 |
1 | ||
| 04446-32050 |
NCP12 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-52020 |
NCP12 |
1 | ||
| 44303-52020 |
NCP12 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-50010 |
NCP12 |
1 | ||
| 44305-50010 |
NCP12 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-52020 |
NCP12 |
1 | ||
| 44310-52020 |
NCP12 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-52020 |
NCP12 |
1 | ||
| 44306-52020 |
NCP12 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11020 |
NCP12 |
1 | ||
| 90301-11020 |
NCP12 |
1 | ||
| 44393 - INSULATOR, POWER STEERING PUMP HEAT | ||||
| 44393-52010 |
NCP12 |
1 | ||
| 44393-52010 |
NCP12 |
1 | ||
| 44399 - COVER, VANE PUMP OIL RESERVOIR | ||||
| 44399-52010 |
NCP12 |
1 | ||
| 44399-52010 |
NCP12 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-52010 |
NCP12 |
1 | ||
| 44441-52010 |
NCP12 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-52020 |
NCP12 |
1 | ||
| 44442-52020 |
NCP12 |
1 | ||
| 44444C - STAY, VANE PUMP, REAR | ||||
| 44444-52010 |
NCP12 |
1 | ||
| 44444-52010 |
NCP12 |
1 | ||
| Common parts | ||||
| 90105-10464 | None epc.PartDetail.None | |||
| 90119-06559 | None epc.PartDetail.None | |||
| 91512-G1025 | None epc.PartDetail.None | |||
