NCP12L-BDMRKK (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

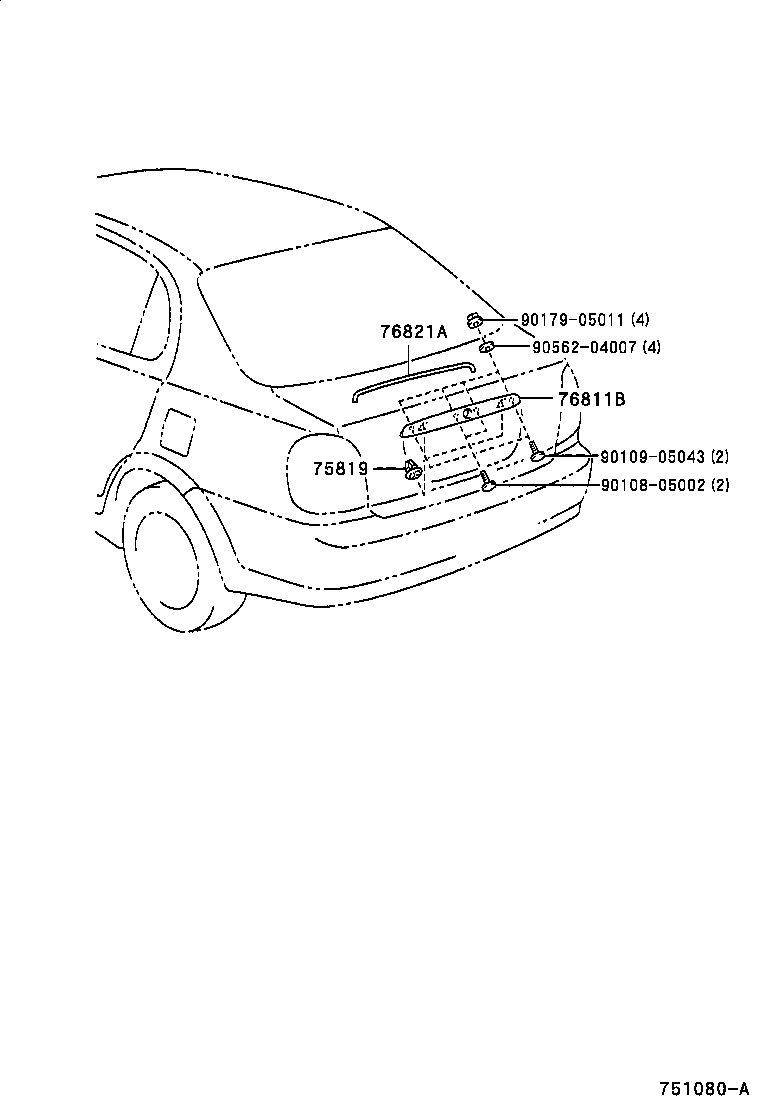

Click highlighted areas on diagram

diagram 75819 76811B 76821A 9010805002 9010905043 9017905011 9056204007
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
76817-12050

NCP12

 2
76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-52110

NCP12

 1
76811-52100

NCP12

CHROME PLATED

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-52030

NCP12

 1
Common parts
90108-05002
90109-05043
90179-05011
90562-04007
