NCP12L-BDMRKK (1999)

Toyota Echo

Production Aug 1999 - Feb 2006
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

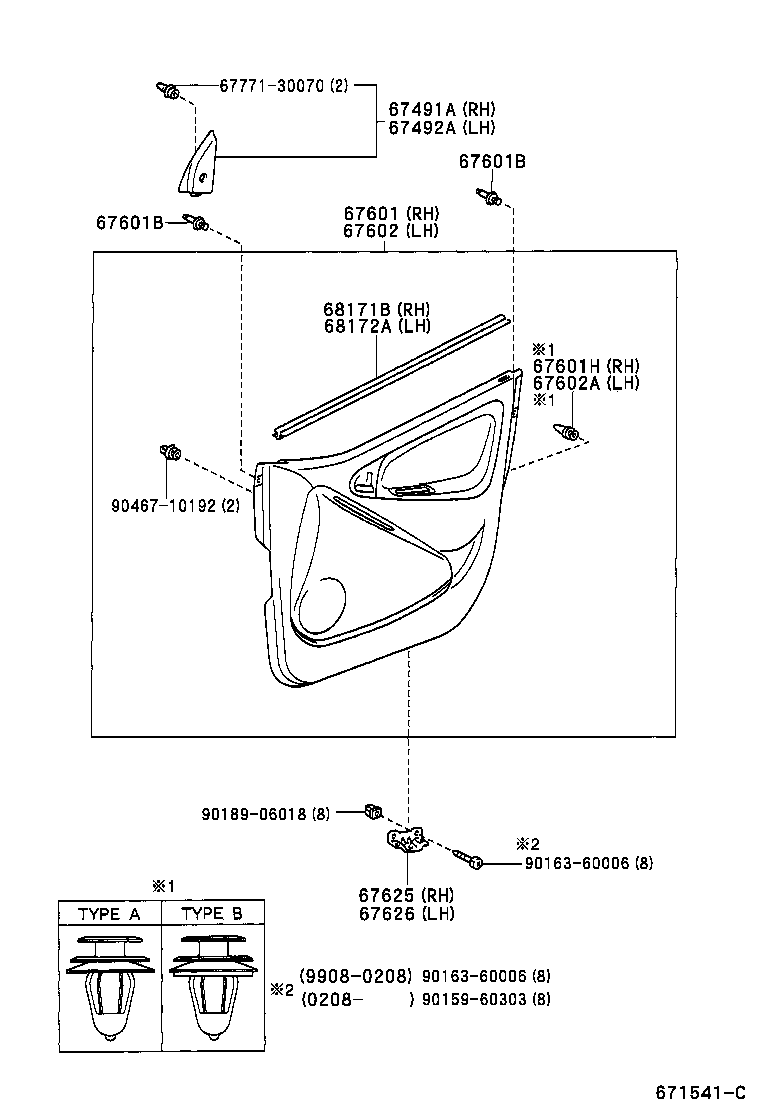

ILLUST NO. 1 OF 3(9908- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601B 67601H 67602 67602A 67625 67626 6777130070 68171B 68172A 9015960303 9016360006 9016360006 9018906018 9046710192
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-52010

NCP12

 1
67491-52010

NCP12

 1
67491-52020

NCP12

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

 1
67491-52020

NCP12

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-52020

NCP12

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

 1
67492-52010

NCP12

 1
67492-52010

NCP12

 1
67492-52020

NCP12

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-52571B1

NCP12..2D

W(POWER WINDOW),AMETHYST,TRIM9#

 1
67610-52581B0

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67610-52581B1

NCP12..2D

AMETHYST,TRIM9#

 1
67610-52570B0

NCP12..2D

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-52571B0

NCP12..2D

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-52580B1

NCP12..2D

AMETHYST,TRIM9#

 1
67610-52580B0

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67610-52581B2

NCP12..2D

DK.GRAY,TRIM1#

 1
67610-52581E0

NCP12..2D

SANDAL WOOD,TRIM4#

 1
67610-52570B1

NCP12..2D

W(POWER WINDOW),AMETHYST,TRIM9#

 1
67610-52581B3

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07190B1

NCP12..2D

AMETHYST,TRIM9#

 4
90467-07190B0

NCP12..2D

SHADOW GRAY,TRIM1#

 4
90467-07190B0

NCP12..2D

SHADOW GRAY,TRIM19

 4
90467-07190B2

NCP12..2D

DK.GRAY,TRIM19

 4
90467-07190E1

NCP12..2D

SANDAL WOOD,TRIM4#

 4
90467-07190B2

NCP12..2D

DK.GRAY,TRIM1#

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07190B1

NCP12..2D

AMETHYST,TRIM9#

 4
90467-07190B0

NCP12..2D

SHADOW GRAY,TRIM1#

 4
90467-07190B0

NCP12..2D

SHADOW GRAY,TRIM19

 4
90467-07190B2

NCP12..2D

DK.GRAY,TRIM19

 4
90467-07190E1

NCP12..2D

SANDAL WOOD,TRIM4#

 4
90467-07190B2

NCP12..2D

DK.GRAY,TRIM1#

 4
67601H - RETAINER, DOOR TRIM, RH
67771-28020

NCP12

TYPE B:REFER TO ILLUSTRATION

 3
67771-28020

NCP12

TYPE B

 3
67771-12050

NCP12..2D

TYPE A:REFER TO ILLUSTRATION

 5
67771-12050

NCP12..2D

TYPE A

 5
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-52530B0

NCP12..2D

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-52530B1

NCP12..2D

W(POWER WINDOW),AMETHYST,TRIM9#

 1
67620-52580B0

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67620-52580B1

NCP12..2D

AMETHYST,TRIM9#

 1
67620-52531B1

NCP12..2D

W(POWER WINDOW),AMETHYST,TRIM9#

 1
67620-52531B0

NCP12..2D

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-52581B0

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67620-52581E0

NCP12..2D

SANDAL WOOD,TRIM4#

 1
67620-52581B2

NCP12..2D

DK.GRAY,TRIM1#

 1
67620-52581B1

NCP12..2D

AMETHYST,TRIM9#

 1
67620-52581B3

NCP12..2D

SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12050

NCP12..2D

TYPE A:REFER TO ILLUSTRATION

 5
67771-12050

NCP12..2D

TYPE A

 5
67771-28020

NCP12

TYPE B

 3
67771-28020

NCP12

TYPE B:REFER TO ILLUSTRATION

 3
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-52010

NCP12

 1
67625-52010

NCP12

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-52010

NCP12

 1
67625-52010

NCP12

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52070

NCP12..2D

 1
68171-52071

NCP12..2D

 1
68171-52071

NCP12..2D

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-52071

NCP12..2D

 1
68172-52071

NCP12..2D

 1
68172-52070

NCP12..2D

 1
Common parts
67771-30070
90159-60303
90163-60006
90189-06018
90467-10192

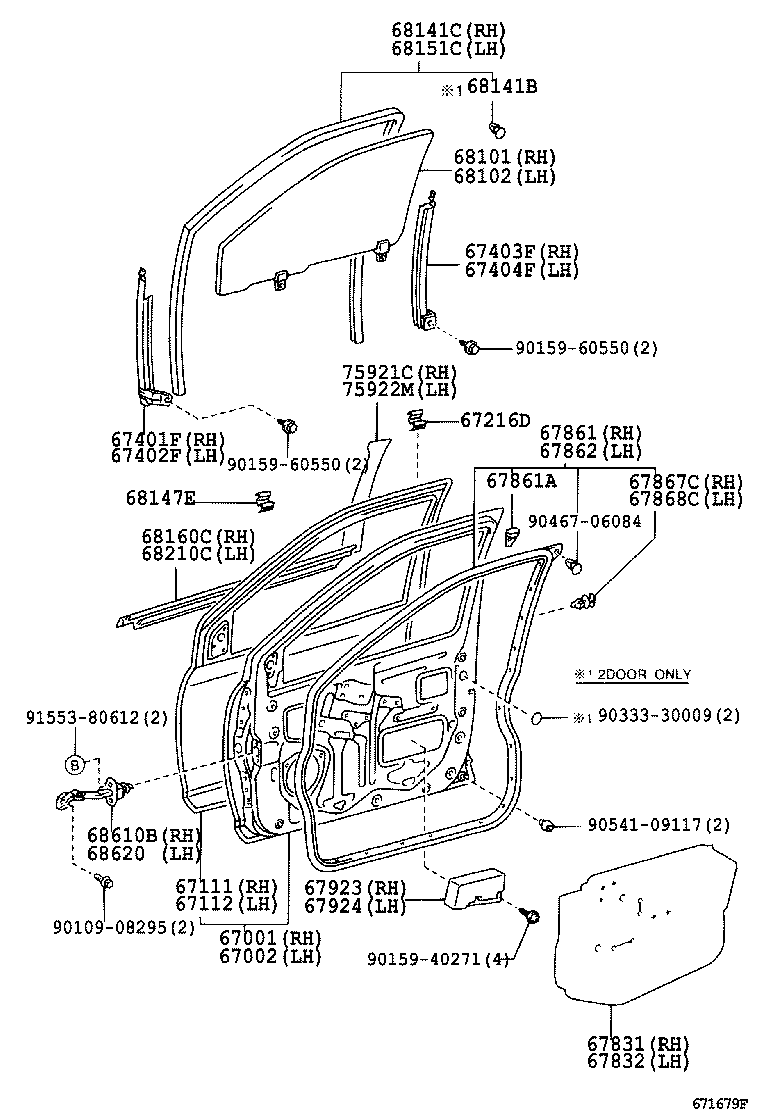

ILLUST NO. 2 OF 3(9908- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67216D 67401F 67402F 67403F 67404F 67831 67832 67861 67861A 67862 67867C 67868C 67923 67924 68101 68102 68141B 68141C 68147E 68151C 68160C 68210C 68610B 68620 75921C 75922M 9010908295 9015940271 9015960550 9015960550 9033330009 9046706084 9054109117 9155380612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-52070

NCP12..2D

W(SIDE MUDGUARD)

 1
67001-52051

NCP12..2D

 1
67001-52071

NCP12..2D

W(SIDE MUDGUARD)

 1
67001-52330

NCP12..2D..CND

W(SIDE MUDGUARD)

 1
67001-52320

NCP12..2D

 1
67001-52050

NCP12..2D

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-52070

NCP12..2D

W(SIDE MUDGUARD)

 1
67002-52050

NCP12..2D

 1
67002-52310

NCP12..2D

 1
67002-52051

NCP12..2D

 1
67002-52071

NCP12..2D

W(SIDE MUDGUARD)

 1
67002-52320

NCP12..2D..CND

W(SIDE MUDGUARD)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-52050

NCP12..2D

W(SIDE MUDGUARD)

 1
67111-52020

NCP12..2D

 1
67111-52020

NCP12..2D

 1
67111-52050

NCP12..2D..CND

W(SIDE MUDGUARD)

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-52020

NCP12..2D

 1
67112-52050

NCP12..2D..CND

W(SIDE MUDGUARD)

 1
67112-52050

NCP12..2D

W(SIDE MUDGUARD)

 1
67112-52020

NCP12..2D

 1
67216D - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-52010

NCP12

 2
67216-52010

NCP12

 2
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-52020

NCP12..2D

 1
67401-52020

NCP12..2D

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-52020

NCP12..2D

 1
67402-52020

NCP12..2D

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52010

NCP12

 1
67403-52010

NCP12

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52010

NCP12

 1
67404-52010

NCP12

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-52070

NCP12..2D

 1
67831-52160

NCP12..2D

W(SIDE AIR BAG)

 1
67831-52150

NCP12..2D

 1
67831-52160

NCP12..2D

W(SIDE AIR BAG)

 1
67831-52140

NCP12..2D

W(*80)

 1
67831-52150

NCP12..2D

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-52070

NCP12..2D

 1
67832-52080

NCP12..2D

W(SIDE AIR BAG)

 1
67832-52010

NCP12..2D

 1
67832-52070

NCP12..2D

 1
67832-52080

NCP12..2D

W(SIDE AIR BAG)

 1
67832-52060

NCP12..2D

W(*80)

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-52020

NCP12..2D

 1
67861-52020

NCP12..2D

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-52030

NCP12..2D

LH

 11
67867-52020

NCP12

RH

 11
67867-52030

NCP12

LH

 11
67867-52020

NCP12..2D

RH

 11
67867-52020

NCP12

RH

 11
67867-52030

NCP12

LH

 11
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-52020

NCP12..2D

 1
67862-52020

NCP12..2D

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

NCP12..2D

 25
67867-12150

NCP12..2D

 25
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

NCP12..2D

 25
67867-12150

NCP12..2D

 25
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-52010

NCP12..2D

 1
67923-52030

NCP12..2D

 1
67923-52030

NCP12..2D

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-52030

NCP12..2D

 1
67924-52030

NCP12..2D

 1
67924-52010

NCP12..2D

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-52080

NCP12..2D

*TEM,T=3.1,GREEN

 1
68110-52080

NCP12..2D

*TEM,T=3.1,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-52080

NCP12..2D

*TEM,T=3.1,GREEN

 1
68120-52080

NCP12..2D

*TEM,T=3.1,GREEN

 1
68141B - CLIP, DOOR GLASS RUN
90467-06084

NCP12..2D

 2
90467-06084

NCP12..2D

 2
68141C - RUN, FRONT DOOR GLASS, RH
68141-52020

NCP12..2D

 1
68141-52021

NCP12..2D

 1
68141-52021

NCP12..2D

 1
68147E - STOP, FRONT DOOR GLASS, UPPER
68147-52010

NCP12

 2
68147-52010

NCP12

 2
68151C - RUN, FRONT DOOR GLASS, LH
68151-52021

NCP12..2D

 1
68151-52020

NCP12..2D

 1
68151-52021

NCP12..2D

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52020

NCP12..2D

 1
68160-52020

NCP12..2D

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52020

NCP12..2D

 1
68210-52020

NCP12..2D

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52010

NCP12

 1
68610-52010

NCP12

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-52010

NCP12

 1
68620-52010

NCP12

 1
Common parts
90109-08295
90159-40271
90159-60550
90333-30009
90467-06084
90541-09117
91553-80612

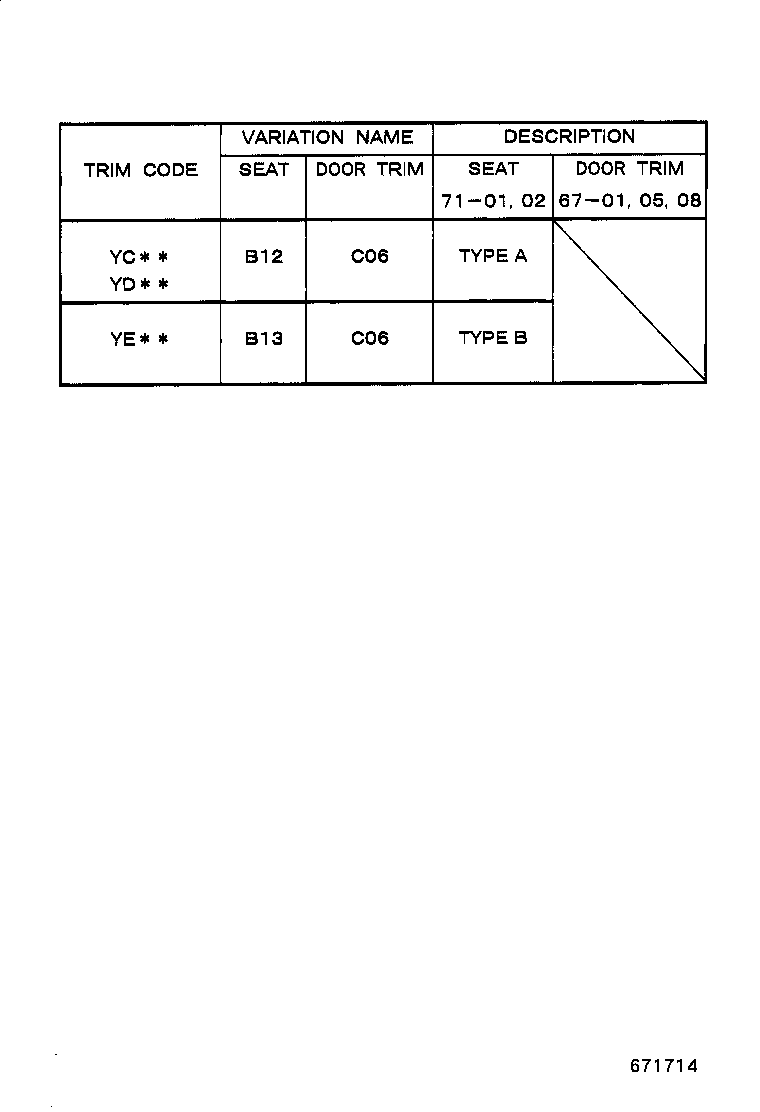

ILLUST NO. 3 OF 3(9908- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
