NCP12L-BDMRKA (1999)
Toyota Echo
ILLUST NO. 2 OF 2(9908- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

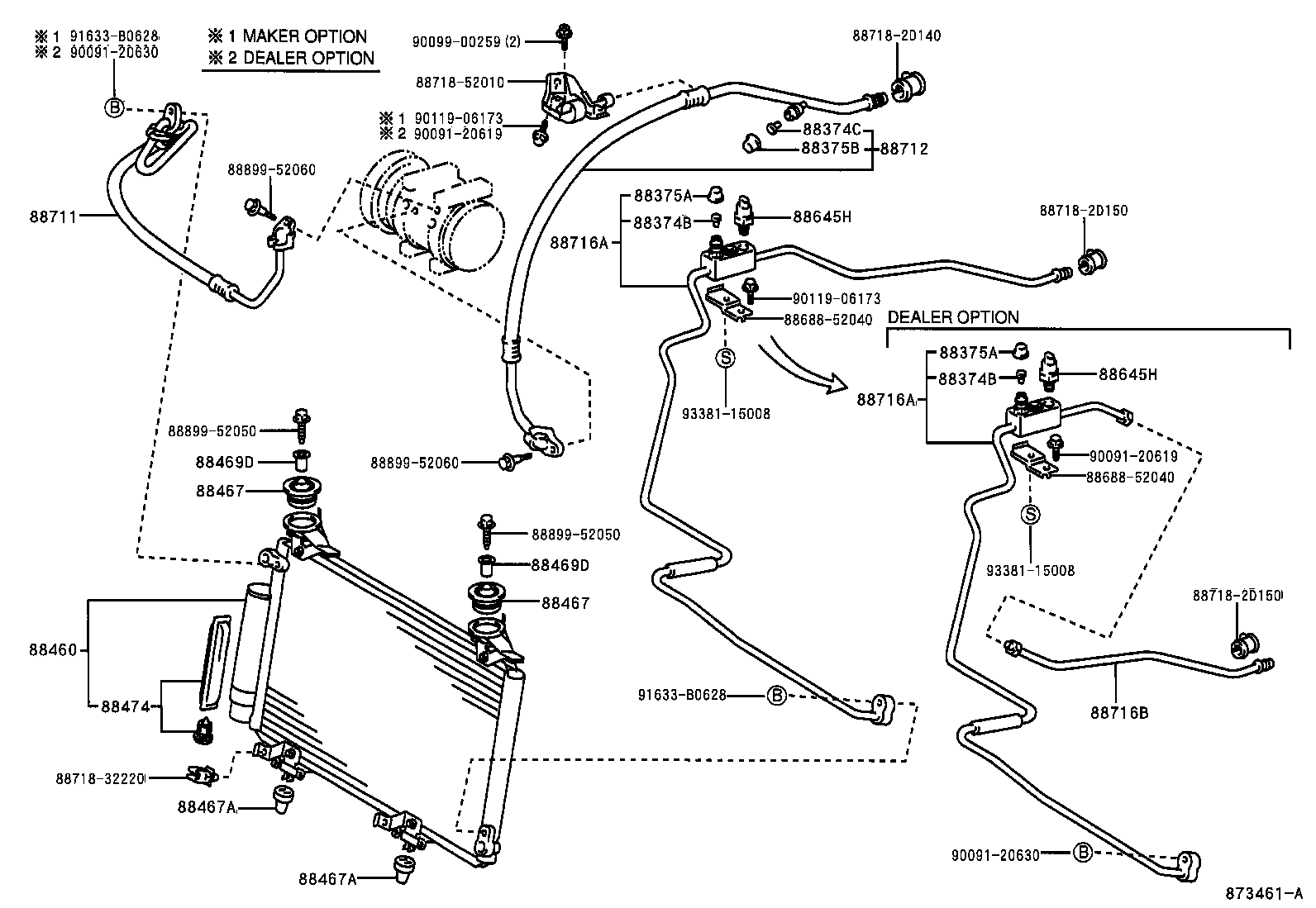

ILLUST NO. 1 OF 2(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP12 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP12 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP12 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP12 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP12 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NCP12 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52040 |
NCP12 |
1 | ||
| 88450-52140 |
NCP12 |
1 | ||
| 88450-52141 |
NCP12 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP12 |
2 | ||
| 88467-12180 |
NCP12 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP12 |
2 | ||
| 88467-12180 |
NCP12 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP12 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP12 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP12 |
2 | ||
| 88469-52010 |
NCP12 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP12 |
2 | ||
| 88469-52010 |
NCP12 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
NCP12 DEALER OPTION |
1 | ||
| 88474-17010 |
NCP12 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP12 MAKER OPTION |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP12 |
1 | ||
| 88645-60030 |
NCP12 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP12 |
1 | ||
| 88645-60030 |
NCP12 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP12 MAKER OPTION |
1 | ||
| 88711-52030 |
NCP12 DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52050 |
NCP12 |
1 | ||
| 88704-52060 |
NCP12 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-52260 |
NCP12 MAKER OPTION |
1 | ||
| 88716-52130 |
NCP12 DEALER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716-52100 |
NCP12 MAKER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-52260 |
NCP12 MAKER OPTION |
1 | ||
| 88716-52130 |
NCP12 DEALER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716-52100 |
NCP12 MAKER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52380 |
NCP12 |
1 | ||
| 88716-52140 |
NCP12 |
1 | ||
| 88716-52380 |
NCP12 |
1 | ||
| Common parts | ||||
| 88688-52040 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-52010 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90099-00259 | ||||
| 90119-06173 | ||||
| 91633-B0628 | ||||
| 93381-15008 | ||||

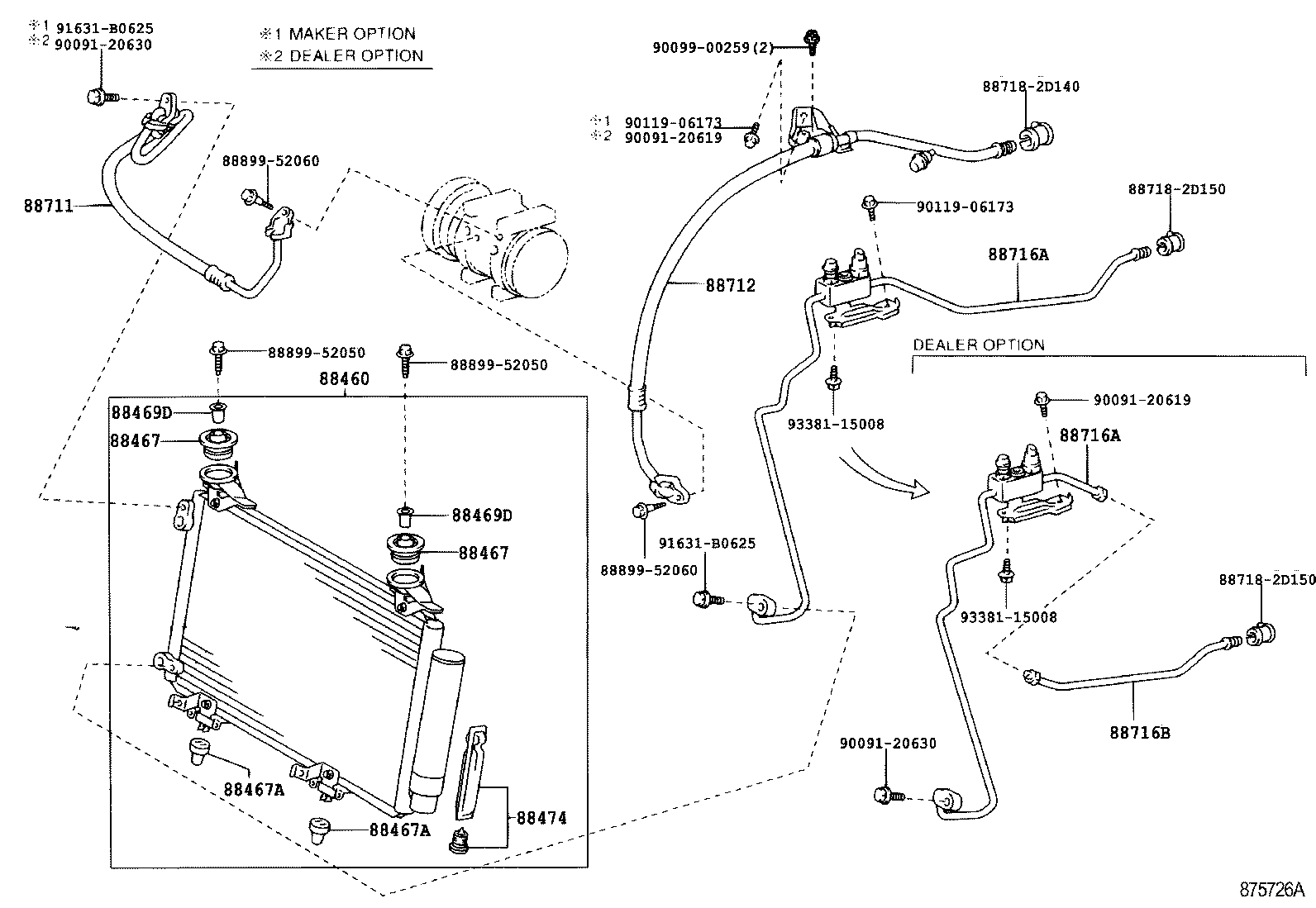

ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52040 |
NCP12 |
1 | ||
| 88450-52140 |
NCP12 |
1 | ||
| 88450-52141 |
NCP12 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP12 |
2 | ||
| 88467-12180 |
NCP12 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP12 |
2 | ||
| 88467-12180 |
NCP12 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP12 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP12 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP12 |
2 | ||
| 88469-52010 |
NCP12 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP12 |
2 | ||
| 88469-52010 |
NCP12 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
NCP12 DEALER OPTION |
1 | ||
| 88474-17010 |
NCP12 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP12 MAKER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP12 MAKER OPTION |
1 | ||
| 88711-52030 |
NCP12 DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52050 |
NCP12 |
1 | ||
| 88704-52060 |
NCP12 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-52260 |
NCP12 MAKER OPTION |
1 | ||
| 88716-52130 |
NCP12 DEALER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716-52100 |
NCP12 MAKER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-52260 |
NCP12 MAKER OPTION |
1 | ||
| 88716-52130 |
NCP12 DEALER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716-52100 |
NCP12 MAKER OPTION |
1 | ||
| 88706-52310 |
NCP12 DEALER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52380 |
NCP12 |
1 | ||
| 88716-52140 |
NCP12 |
1 | ||
| 88716-52380 |
NCP12 |
1 | ||
| Common parts | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90099-00259 | ||||
| 90119-06173 | ||||
| 91631-B0625 | ||||
| 93381-15008 | ||||
