NCP12L-BDMRKA (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

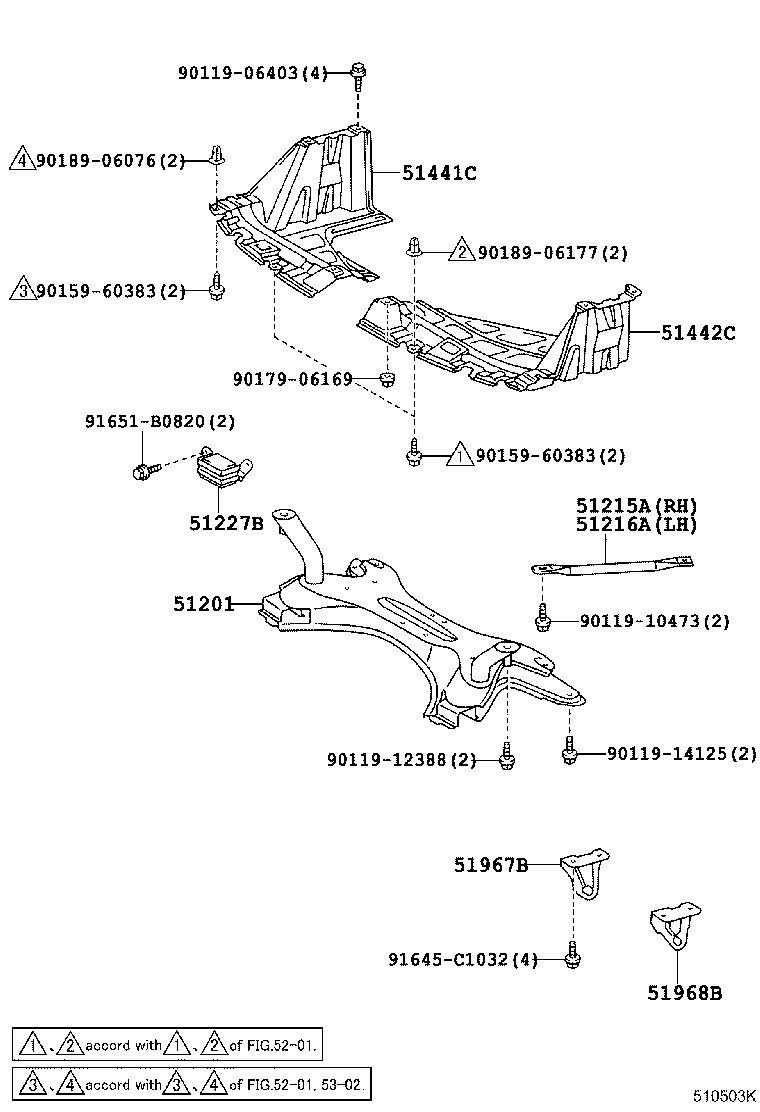

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52012 |
NCP12 |
1 | ||
| 51201-52014 |
NCP12 |
1 | ||
| 51201-52013 |
NCP12 |
1 | ||
| 51201-52011 |
NCP12 |
1 | ||
| 51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51215-52010 |
NCP12 |
1 | ||
| 51215-52010 |
NCP12 |
1 | ||
| 51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51215-52010 |
NCP12 |
1 | ||
| 51215-52010 |
NCP12 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-52010 |
NCP12 |
1 | ||
| 51227-52010 |
NCP12 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-52010 |
NCP12 |
1 | ||
| 51441-52010 |
NCP12 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-52030 |
NCP12..MTM |
1 | ||
| 51442-52030 |
NCP12..MTM |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-10100 |
NCP12 |
1 | ||
| 51967-10100 |
NCP12 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51967-10090 |
NCP12 |
1 | ||
| 51967-10090 |
NCP12 |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-10473 | ||||
| 90119-12388 | ||||
| 90119-14125 | ||||
| 90159-60383 | ||||
| 90179-06169 | ||||
| 90189-06076 | ||||
| 90189-06177 | ||||
| 91645-C1032 | ||||
| 91651-B0820 | ||||
