NCP12L-BDMRKA (1999)
Toyota Echo
Production
Aug 1999
-
Feb 2006
Engine
1NZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

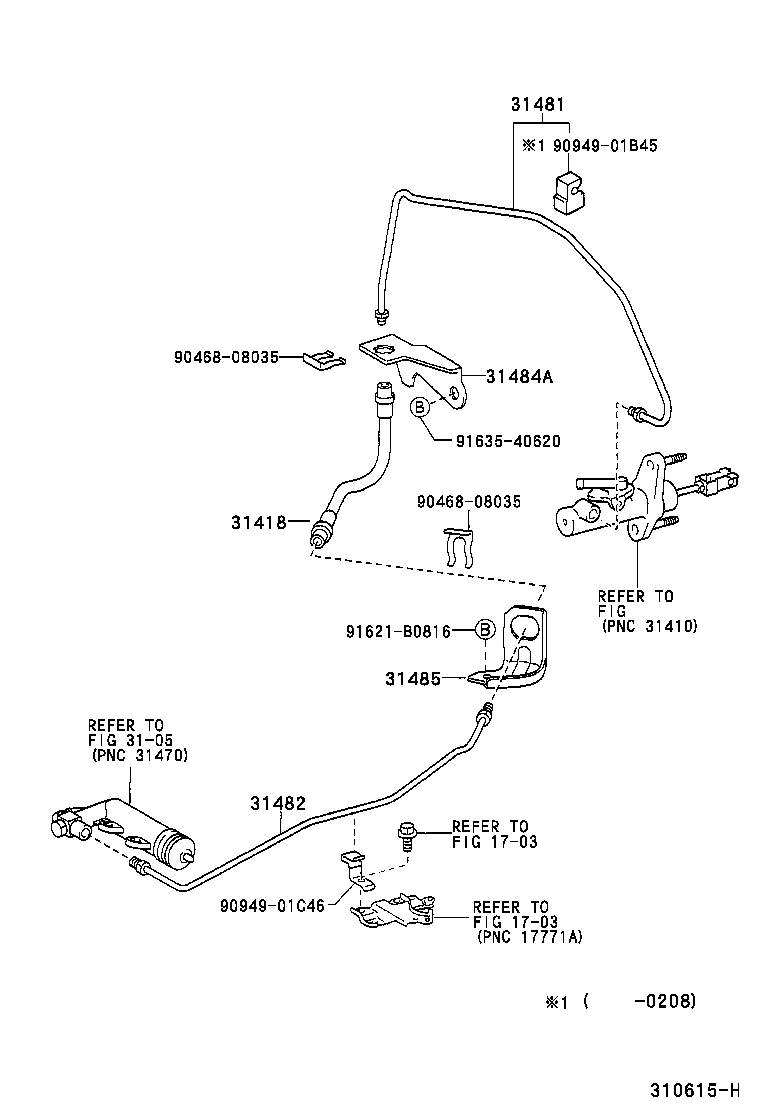

ILLUST NO. 2 OF 2(9908- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01137 |
NCP12..MTM |
1 | ||
| 90931-01137 |
NCP12..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-52030 |
NCP12..MTM |
1 | ||
| 31481-52030 |
NCP12..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-52020 |
NCP12..MTM W(ABS) |
1 | ||
| 31482-52020 |
NCP12..MTM W(ABS) |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-52010 |
NCP12..MTM |
1 | ||
| 31484-52010 |
NCP12..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-52020 |
NCP12..MTM |
1 | ||
| 31484-52020 |
NCP12..MTM |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90949-01B45 | ||||
| 90949-01C46 | ||||
| 91621-B0816 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 3105 | ||||

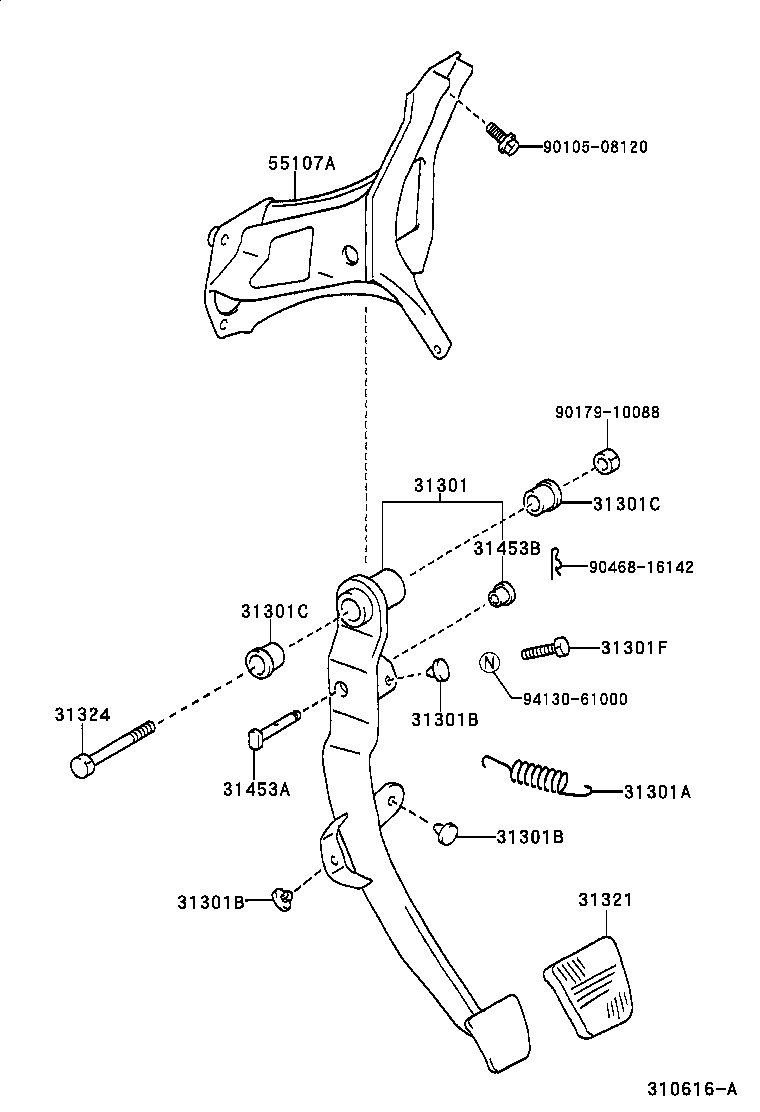

ILLUST NO. 1 OF 2(9908- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-52040 |
NCP12..MTM |
1 | ||
| 31301-52040 |
NCP12..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14047 |
NCP12..MTM |
1 | ||
| 90507-14047 |
NCP12..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 90541-06036 |
NCP12..MTM |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NCP12..MTM |
2 | ||
| 90386-13015 |
NCP12..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NCP12..MTM |
2 | ||
| 90386-13015 |
NCP12..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
NCP12..MTM |
1 | ||
| 90101-10369 |
NCP12..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
NCP12..MTM |
1 | ||
| 31321-52010 |
NCP12..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
NCP12..MTM |
1 | ||
| 90109-10167 |
NCP12..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08294 |
NCP12..MTM L=48.5 |
1 | ||
| 90249-08294 |
NCP12..MTM L=48.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
NCP12..MTM |
1 | ||
| 90386-08002 |
NCP12..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-52021 |
NCP12..MTM |
1 | ||
| 55107-52040 |
NCP12..MTM |
1 | ||
| 55107-52040 |
NCP12..MTM |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
