MX83L-AEPQFK (1988)

Toyota Cressida

Production Aug 1988 - Jul 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9207)CND

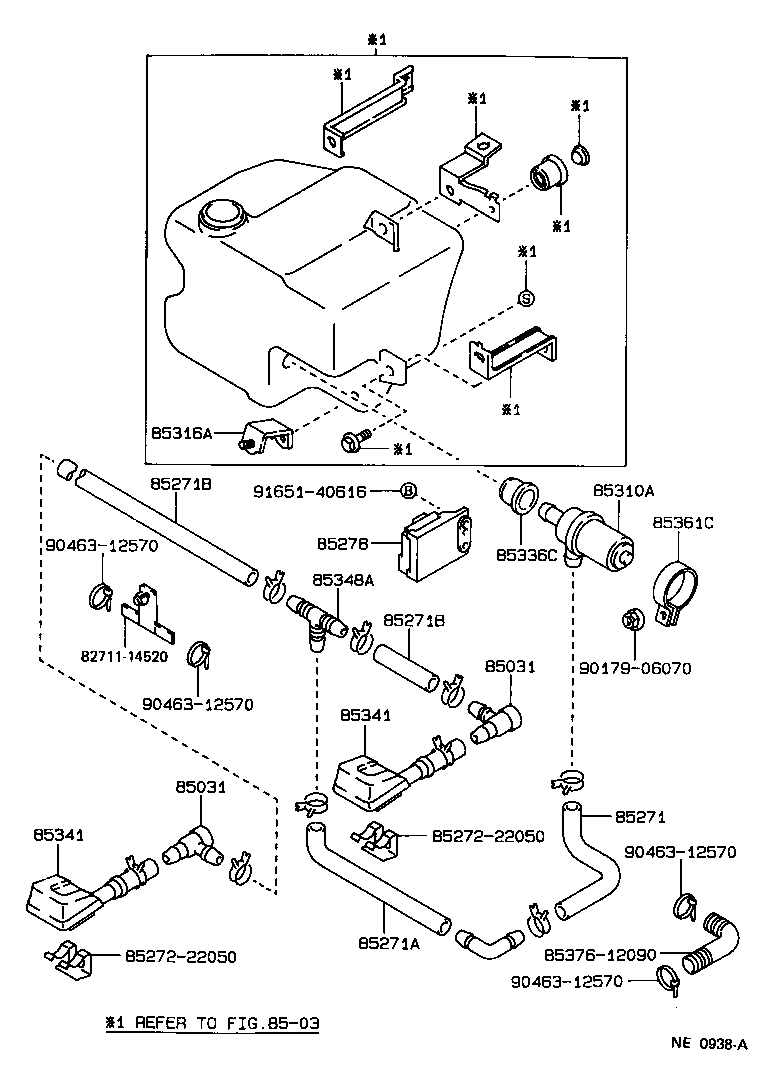

Click highlighted areas on diagram

diagram 8271114520 8503 85031 85031 85271 85271A 85271B 85271B 8527222050 8527222050 85278 85310A 85316A 85336C 85341 85341 85348A 85361C 8537612090 9017906070 9046312570 9046312570 9046312570 9046312570 9165140616
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

MX83..CND

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

MX83..CND

 2
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-22480

MX83..CND

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-12510

MX83..CND

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14072

MX83..CND

L=1320,RH

 1
85376-14301

MX83..CND

L=75,LH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14072

MX83..CND

L=1320,RH

 1
85376-14301

MX83..CND

L=75,LH

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-22070

MX83..CND

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22140

MX83..CND

 1
85316A - HOLDER, WASHER
85316-22480

MX83..CND

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
85336-10010

MX83..CND

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12131

MX83..CND

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12131

MX83..CND

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

MX83..CND

 1
85361C - BRACKET, WASHER
85361-90K02

MX83..CND

 1
Common parts
82711-14520
85272-22050
85376-12090
90179-06070
90463-12570
91651-40616
Linked diagrams
8503
