MX83L-AEPQFA (1988)
Toyota Cressida
Production
Aug 1988
-
Jul 1992
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

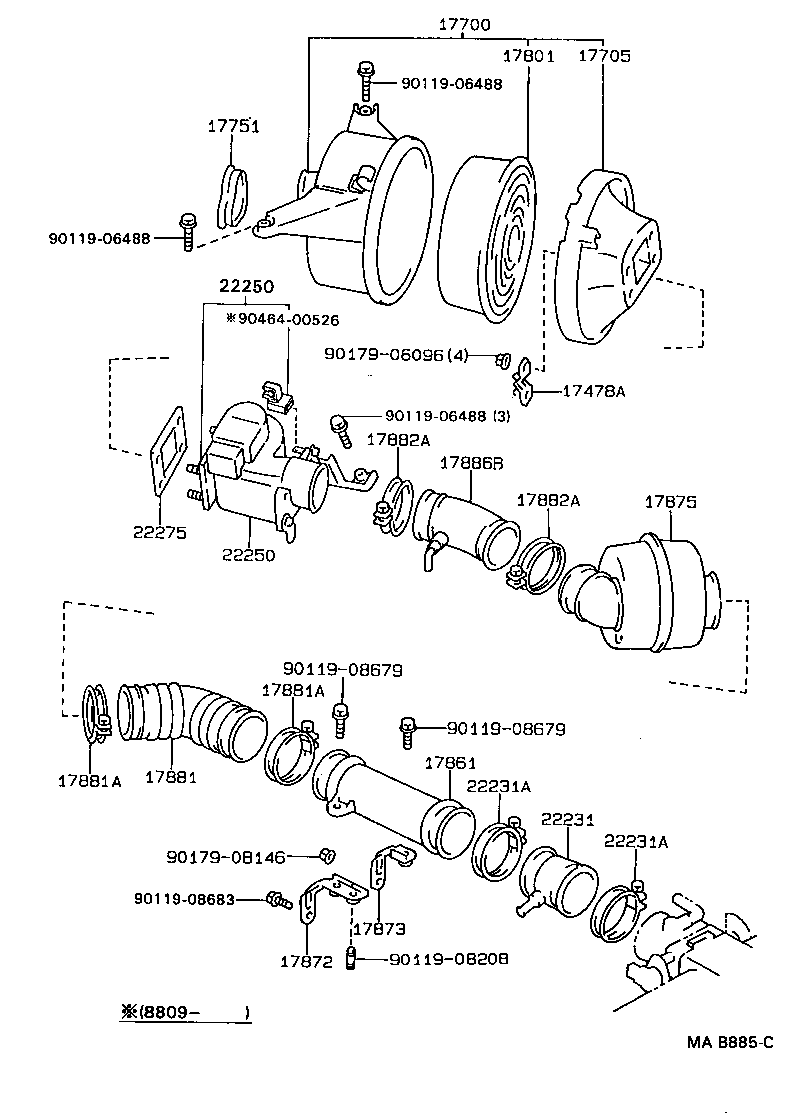

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17478A - PLATE, LOCK | ||||
| 17478-43010 |
7MGE..MX83 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70130 |
7MGE..MX83 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-70070 |
7MGE..MX83 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-70020 |
7MGE..MX83 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
7MGE..MX83 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-42030 |
7MGE..MX83 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-42080 |
7MGE..MX83 |
1 | ||
| 17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17873-42030 |
7MGE..MX83 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-42060 |
7MGE..MX83 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42050 |
7MGE..MX83 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
7MGE..MX83 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
7MGE..MX83 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
7MGE..MX83 AIR FLOW METER SIDE |
1 | ||
| 96111-10900 |
7MGE..MX83 AFM SIDE |
1 | ||
| 96111-10830 |
7MGE..MX83 PIPE SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
7MGE..MX83 AIR FLOW METER SIDE |
1 | ||
| 96111-10900 |
7MGE..MX83 AFM SIDE |
1 | ||
| 96111-10830 |
7MGE..MX83 PIPE SIDE |
1 | ||
| 17886B - HOSE, AIR CLEANER, NO.7 | ||||
| 17882-42040 |
7MGE..MX83 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-42010 |
7MGE..MX83 |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90460-80001 |
7MGE..MX83 |
2 | ||
| 96111-10800 |
7MGE..MX83 |
2 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90460-80001 |
7MGE..MX83 |
2 | ||
| 96111-10800 |
7MGE..MX83 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-42080 |
7MGE..MX83 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-42080 |
7MGE..MX83 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
7MGE..MX83 |
1 | ||
| Common parts | ||||
| 90119-06488 | ||||
| 90119-08208 | ||||
| 90119-08679 | ||||
| 90119-08683 | ||||
| 90179-06096 | ||||
| 90179-08146 | ||||
| 90464-00526 | ||||
