MX73L-XEPGFK (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 5MGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

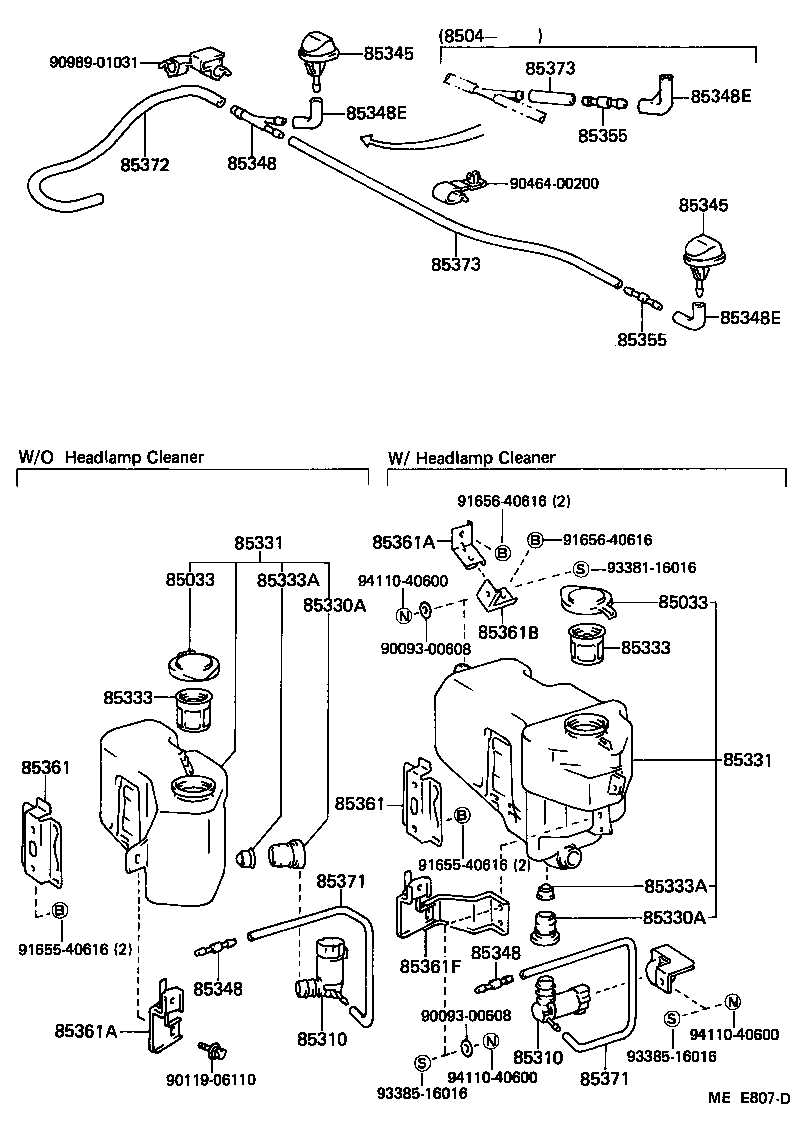

Click highlighted areas on diagram

diagram 85033 85033 85310 85310 85330A 85330A 85331 85331 85333 85333 85333A 85333A 85345 85345 85348 85348 85348 85348E 85348E 85348E 85355 85355 85361 85361 85361A 85361A 85361B 85361F 85371 85371 85372 85373 85373 9009300608 9009300608 9011906110 9046400200 9098901031 9165540616 9165540616 9165640616 9165640616 9338116016 9338516016 9338516016 9411040600 9411040600 9411040600
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-12320

MX7#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-12320

MX7#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22110

MX7#

 1
85310-22111

MX7#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22110

MX7#

 1
85310-22111

MX7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

MX7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

MX7#

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22230

MX73

W/*HC

 1
85331-22230

MX7#

W/*HC

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22230

MX73

W/*HC

 1
85331-22230

MX7#

W/*HC

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

MX7#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

MX7#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

MX7#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

MX7#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-2220001

MX7#

BLACK,BLACK

 2
85035-2220008

MX7#

WHITE,SUPER WHITE 2

 2
85035-22090

MX7#

 2
85035-2220005

MX7#

BEIGE-M,BEIGE METALLIC

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-2220001

MX7#

BLACK,BLACK

 2
85035-2220008

MX7#

WHITE,SUPER WHITE 2

 2
85035-22090

MX7#

 2
85035-2220005

MX7#

BEIGE-M,BEIGE METALLIC

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

MX7#

3 WAY

 1
85349-14010

MX7#

2 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

MX7#

3 WAY

 1
85349-14010

MX7#

2 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

MX7#

3 WAY

 1
85349-14010

MX7#

2 WAY

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

MX7#

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

MX7#

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

MX7#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

MX7#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

MX7#

 1
85361 - HOLDER, WINDSHIELD WASHER
16611-22010

MX7#

 1
85361 - HOLDER, WINDSHIELD WASHER
16611-22010

MX7#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-22300

MX73

W/*HC

 1
85361-22300

MX7#

W/*HC

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-22300

MX73

W/*HC

 1
85361-22300

MX7#

W/*HC

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-22230

MX7#

 1
85361-22230

MX73

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85362-22230

MX73

 1
85362-22230

MX7#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

MX7#

*H,L=400,W/*HC

 1
90099-33075

MX73

*H,L=400,W/*HC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

MX7#

*H,L=400,W/*HC

 1
90099-33075

MX73

*H,L=400,W/*HC

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33077

MX7#

L=450

 1
90099-33080

MX7#

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MX7#

*H,L=35

 1
90099-33089

MX7#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MX7#

*H,L=35

 1
90099-33089

MX7#

 1
Common parts
90093-00608
90119-06110
90464-00200
90989-01031
91655-40616
91656-40616
93381-16016
93385-16016
94110-40600
