MX73L-XEPGFK (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 5MGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

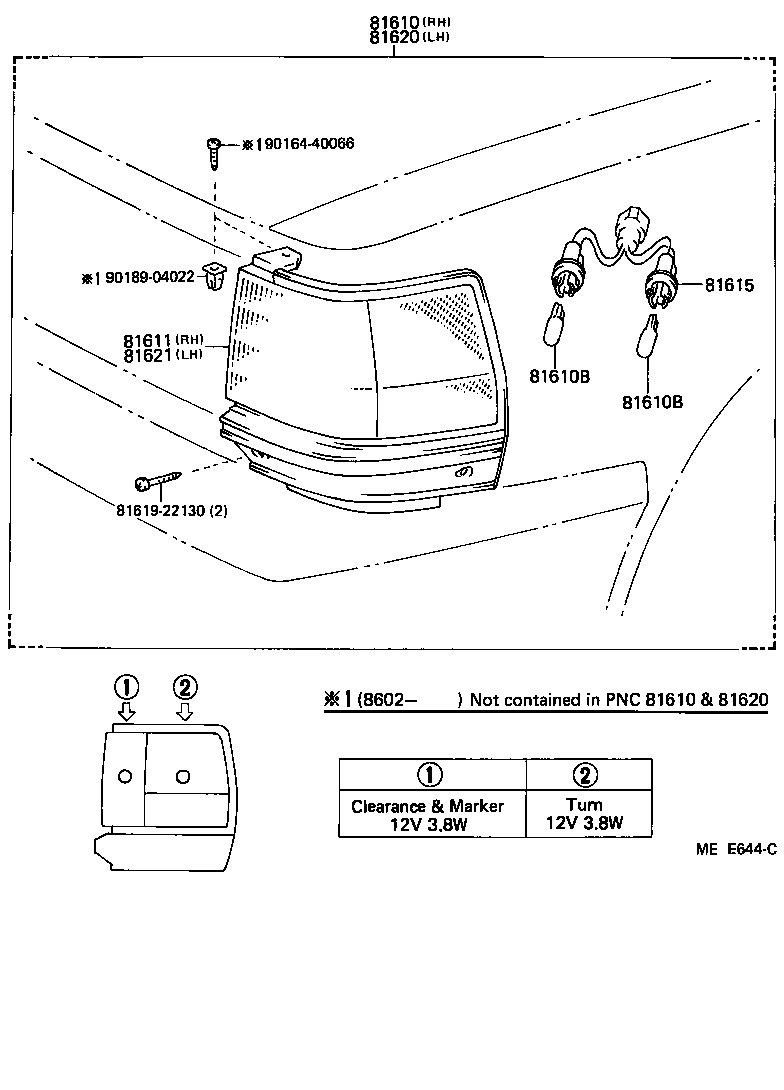

(8408-8608)

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81615 8161922130 81620 81621 9016440066 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29445

MX7#

 1
81610-22150

MX7#

 1
81610-22151

MX7#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-11020

MX7#

12V 3.8W,12V 3.8W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-11020

MX7#

12V 3.8W,12V 3.8W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-22150

MX7#

 1
81611-22151

MX7#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-22151

MX7#

 2
81615-22150

MX7#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-22150

MX7#

 1
81620-29435

MX7#

 1
81620-22151

MX7#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-22150

MX7#

 1
81621-22151

MX7#

 1
Common parts
81619-22130
90164-40066
90189-04022

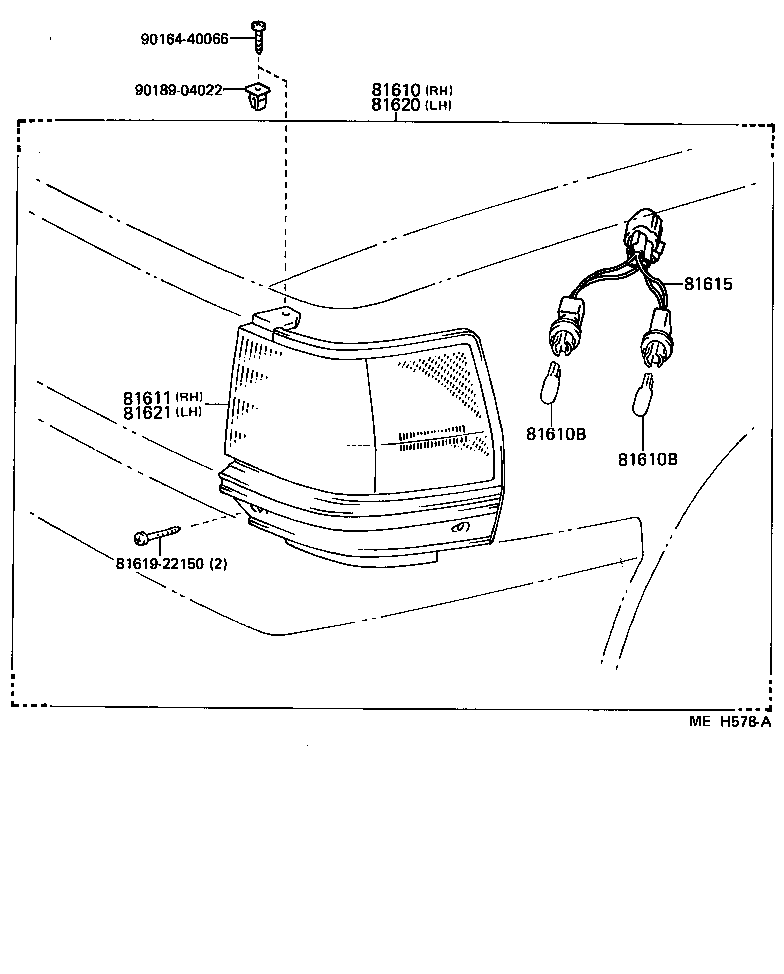

(8608- )

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81615 8161922150 81620 81621 9016440066 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29445

MX7#

 1
81610-22150

MX7#

 1
81610-22151

MX7#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-11020

MX7#

12V 3.8W,12V 3.8W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-11020

MX7#

12V 3.8W,12V 3.8W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-22150

MX7#

 1
81611-22151

MX7#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-22151

MX7#

 2
81615-22150

MX7#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-22150

MX7#

 1
81620-29435

MX7#

 1
81620-22151

MX7#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-22150

MX7#

 1
81621-22151

MX7#

 1
Common parts
81619-22150
90164-40066
90189-04022
