MX73L-XEPGFK (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
5MGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

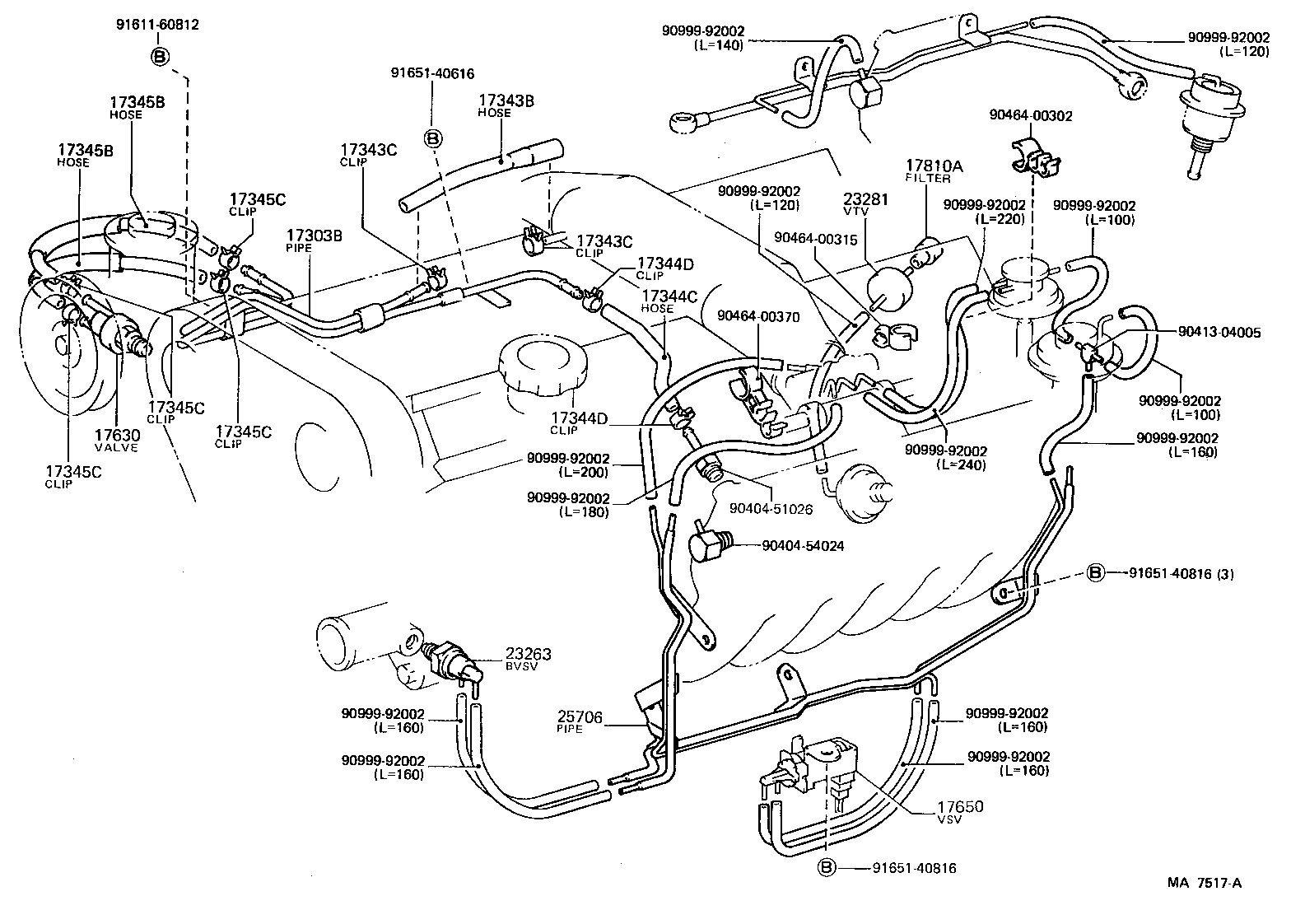

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-43050 |
5MGE..MX7# |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-43020 |
5MGE..MX7# |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# PIPE SIDE |
1 | ||
| 96132-30800 |
5MGE..MX7# CONNECTOR SIDE |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# PIPE SIDE |
1 | ||
| 96132-30800 |
5MGE..MX7# CONNECTOR SIDE |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-43030 |
5MGE..MX7# |
1 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
2 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
2 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17345-43020 |
5MGE..MX7# |
2 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17345-43020 |
5MGE..MX7# |
2 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
4 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
4 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
4 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
5MGE..MX7# |
4 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
5MGE..MX7# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22120 |
5MGE..MX7# |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
5MGE..MX7# |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05068 |
5MGE..MX7# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
5MGE..MX7#..ATM |
1 | ||
| 90925-01014 |
5MGE..MX7# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-43070 |
5MGE..MX7# |
1 | ||
| Common parts | ||||
| 90404-51026 | ||||
| 90404-54024 | ||||
| 90413-04005 | ||||
| 90464-00302 | ||||
| 90464-00315 | ||||
| 90464-00370 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
