MX73L-XEPGFA (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 5MGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )MX73

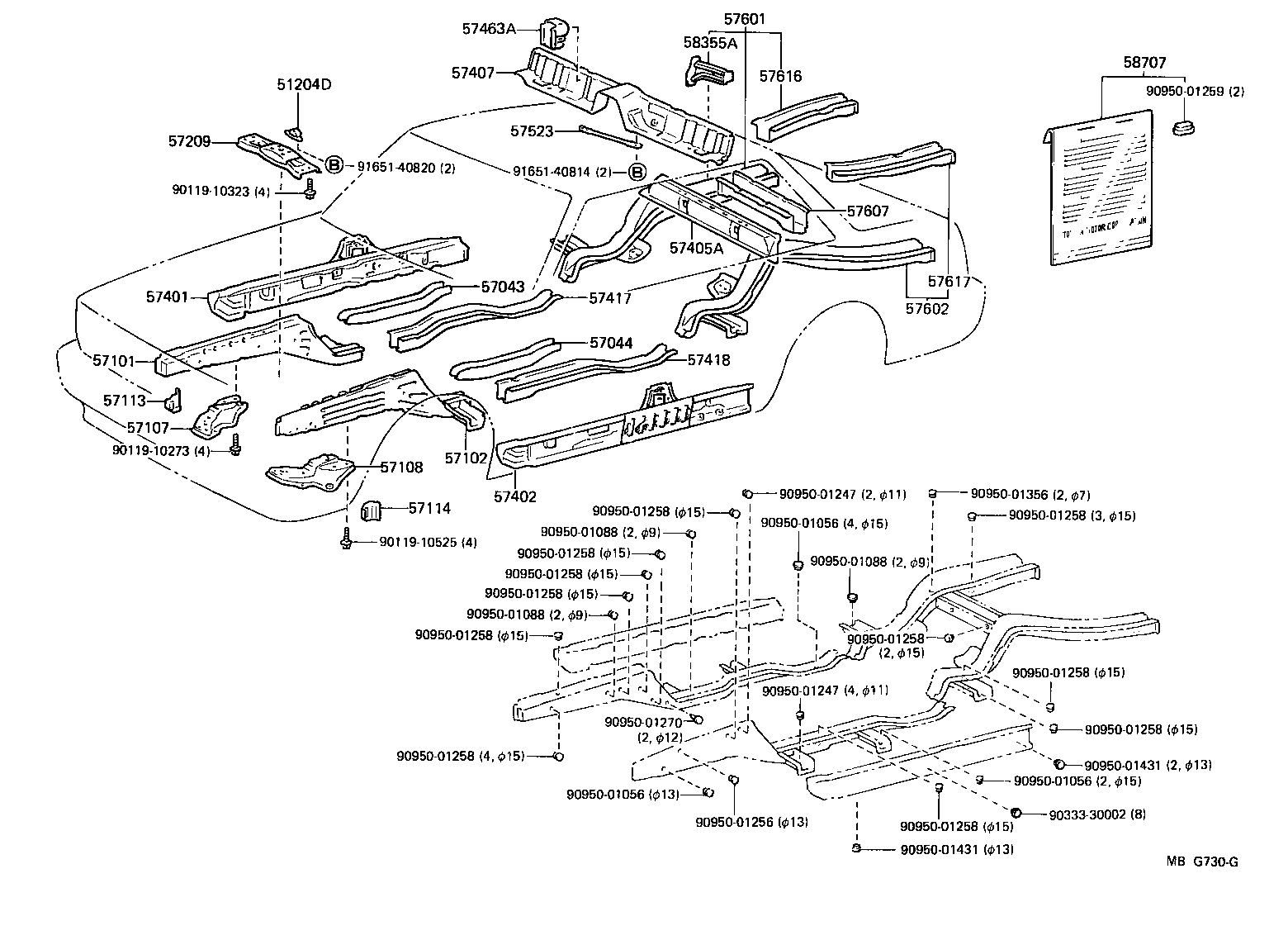

Click highlighted areas on diagram

diagram 51204D 57043 57044 57101 57102 57107 57108 57113 57114 57209 57401 57402 57405A 57407 57417 57418 57463A 57523 57601 57602 57607 57616 57617 58355A 58707 9011910273 9011910323 9011910525 9033330002 9095001056 9095001056 9095001056 9095001088 9095001088 9095001088 9095001247 9095001247 9095001256 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001259 9095001270 9095001356 9095001431 9095001431 9165140814 9165140820
Part # Description Qty Price
51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51204-22050

MX73..ATM

 1
57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-22030

MX7#

 1
57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-22010

MX7#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-22260

MX7#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-22300

MX7#

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22070

MX7#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22140

MX7#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22070

MX7#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22070

MX7#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22200

MX7#..ATM

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22100

MX7#..USA

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22100

MX7#..USA

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-22010

MX73

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22050

MX73

 1
57407-22070

MX73

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-22050

MX7#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-22050

MX7#

 1
57463A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER
57463-22020

MX73

 2
57523 - BRACE, CENTER FLOOR CROSSMEMBER
57523-22010

MX73

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22250

MX73

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22250

MX73

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22060

MX73

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22902

MX73

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22902

MX73

 1
58355A - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-22030

MX73

 1
58707 - PLUG SET, HOLE
58707-22020

MX73

 1
Common parts
90119-10273
90119-10323
90119-10525
90333-30002
90950-01056
90950-01088
90950-01247
90950-01256
90950-01258
90950-01259
90950-01270
90950-01356
90950-01431
91651-40814
91651-40820
