MX73L-XEMGFA (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1987
Engine
5MGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8608)

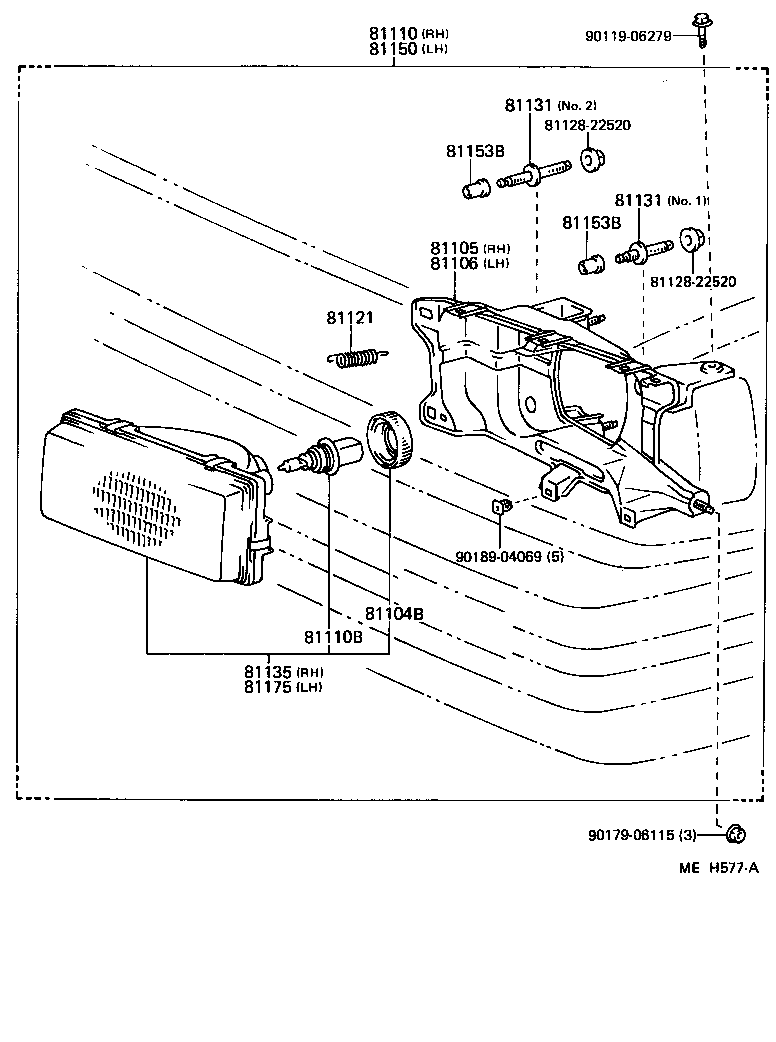

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81104B - LOCKING CAP, HEADLAMP | ||||
| 81104-22520 |
MX7# |
2 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-22520 |
MX7# |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-22520 |
MX7# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80417 |
MX7# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
MX7# 12V 65/45W,*HAL,*WH,12V 65/45W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
MX7# 12V 65/45W,*HAL,*WH,12V 65/45W |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-22520 |
MX7# |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81156-22520 |
MX7# NO.1 |
2 | ||
| 81171-22520 |
MX7# NO.2 |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81156-22520 |
MX7# NO.1 |
2 | ||
| 81171-22520 |
MX7# NO.2 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81135-22520 |
MX7# |
1 | ||
| 81148 - ATTCHMENT, HEADLAMP AIMER, RH | ||||
| 81148-22010 |
MX7# |
1 | ||
| 81149 - ATTCHMENT, HEADLAMP AIMER, LH | ||||
| 81149-22010 |
MX7# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80409 |
MX7# |
1 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81153-22520 |
MX7# |
4 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81153-22520 |
MX7# |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81175-22520 |
MX7# |
1 | ||
| Common parts | ||||
| 81128-22520 | ||||
| 90119-06279 | ||||
| 90179-06115 | ||||
| 90189-04069 | ||||
(8608- )

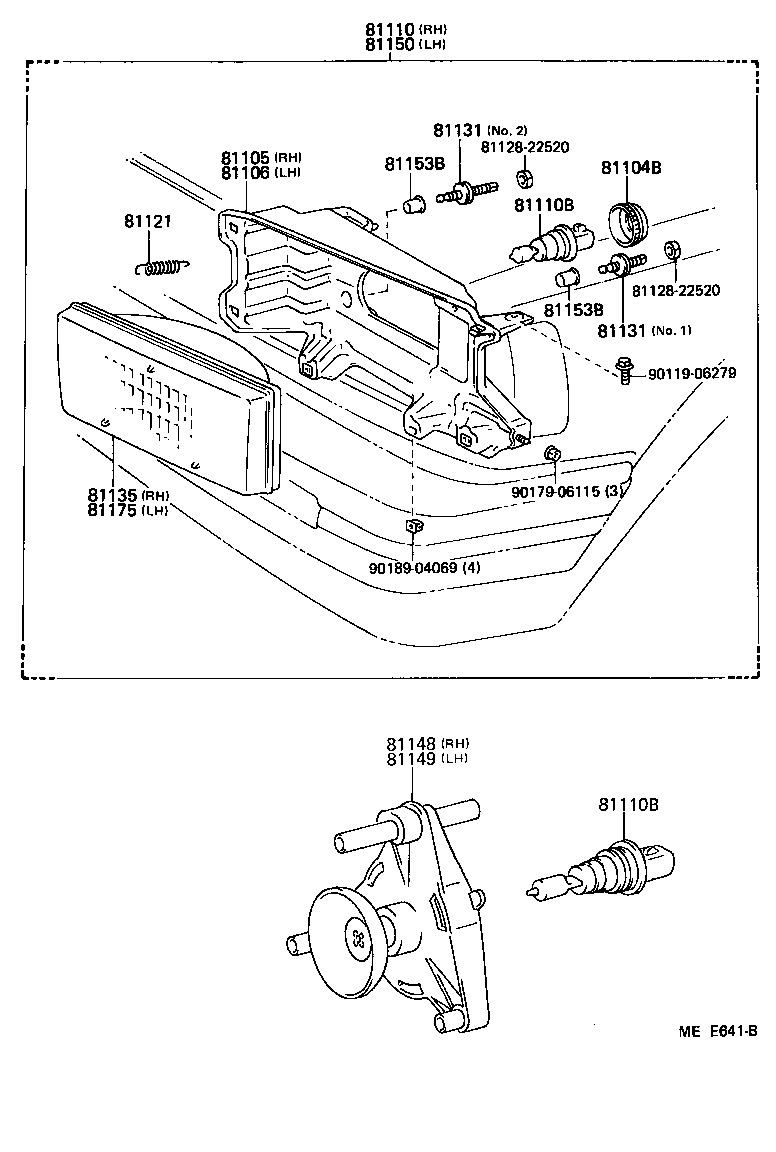

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81104B - LOCKING CAP, HEADLAMP | ||||
| 81104-22520 |
MX7# |
2 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-22520 |
MX7# |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-22520 |
MX7# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80417 |
MX7# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
MX7# 12V 65/45W,*HAL,*WH,12V 65/45W |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-22520 |
MX7# |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81156-22520 |
MX7# NO.1 |
2 | ||
| 81171-22520 |
MX7# NO.2 |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81156-22520 |
MX7# NO.1 |
2 | ||
| 81171-22520 |
MX7# NO.2 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81135-22520 |
MX7# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80409 |
MX7# |
1 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81153-22520 |
MX7# |
4 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81153-22520 |
MX7# |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81175-22520 |
MX7# |
1 | ||
| Common parts | ||||
| 81128-22520 | ||||
| 81128-22550 | ||||
| 90119-06279 | ||||
| 90179-06115 | ||||
| 90189-04069 | ||||
