MX73L-XEMGFA (1984)

Toyota Cressida

Production Aug 1984 - Aug 1987
Engine 5MGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

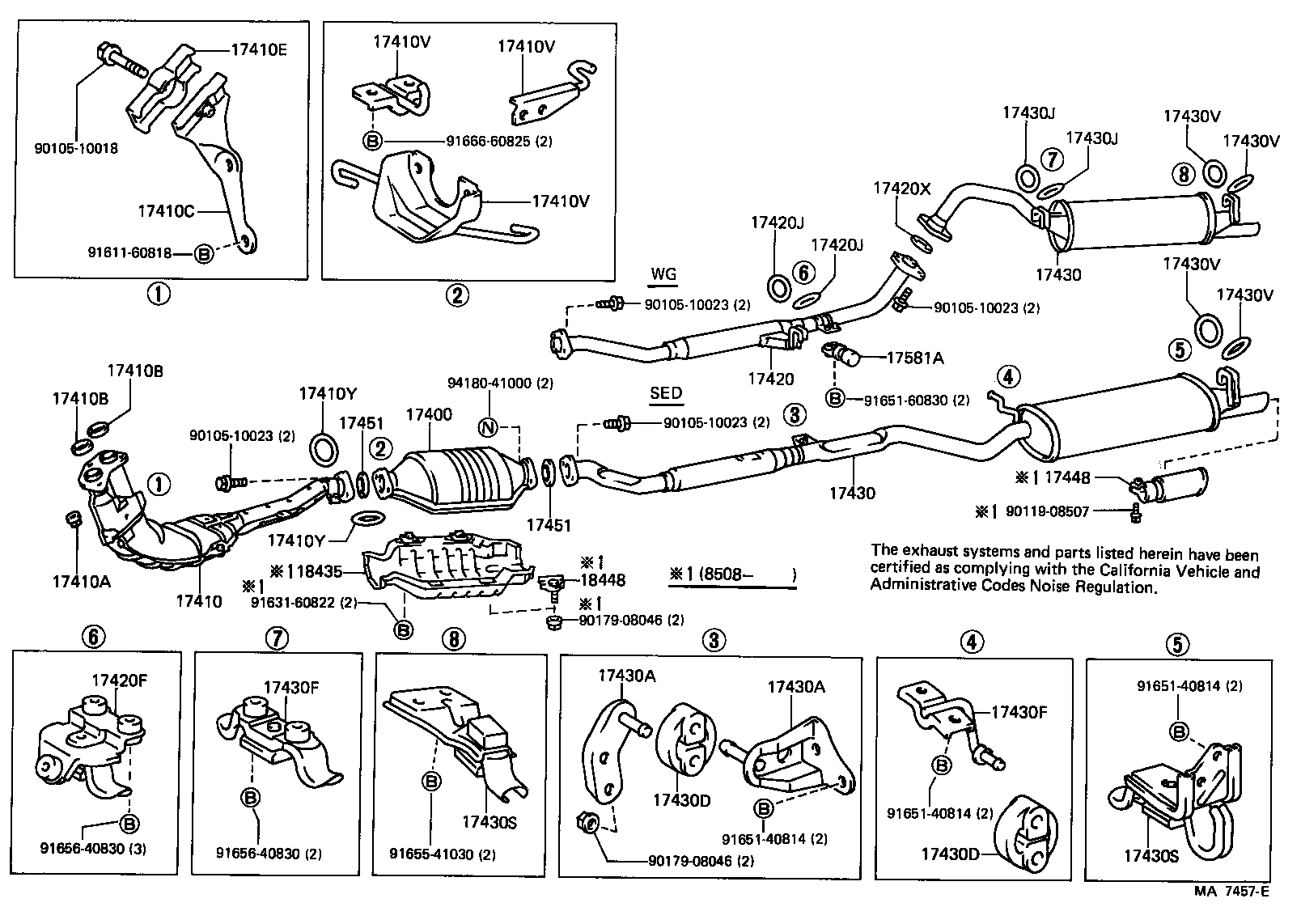

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410V 17410V 17410Y 17410Y 17420 17420F 17420J 17420J 17420X 17430 17430 17430A 17430A 17430D 17430D 17430F 17430F 17430J 17430J 17430S 17430S 17430V 17430V 17430V 17430V 17448 17451 17451 17581A 18435 18448 9010510018 9010510023 9010510023 9010510023 9010510023 9011908507 9017908046 9017908046 9161160818 9163160822 9165140814 9165140814 9165140814 9165160830 9165541030 9165640830 9165640830 9166660825 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-43030

5MGE..MX7#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43140

5MGE..MX7#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5MGE..MX7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

5MGE..MX7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

5MGE..MX7#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41080

5MGE..MX7#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

5MGE..MX7#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-70050

5MGE..MX7#

CCO SUPPORT

 1
17503-70060

5MGE..MX73..MTM

ENGINE REAR MOUNTING

 1
17504-70020

5MGE..MX7#

SIDE MEMBER

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-70050

5MGE..MX7#

CCO SUPPORT

 1
17503-70060

5MGE..MX73..MTM

ENGINE REAR MOUNTING

 1
17504-70020

5MGE..MX7#

SIDE MEMBER

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-70050

5MGE..MX7#

CCO SUPPORT

 1
17503-70060

5MGE..MX73..MTM

ENGINE REAR MOUNTING

 1
17504-70020

5MGE..MX7#

SIDE MEMBER

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-01001

5MGE..MX7#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-01001

5MGE..MX7#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-43010

5MGE..MX73

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-43010

5MGE..MX73

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-28010

5MGE..MX73

UPR

 1
17506-70020

5MGE..MX73

LWR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-28010

5MGE..MX73

UPR

 1
17506-70020

5MGE..MX73

LWR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

5MGE..MX73

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

5MGE..MX73

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-70030

5MGE..MX73

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-70030

5MGE..MX73

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17507-70010

5MGE..MX73

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17507-70010

5MGE..MX73

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

5MGE..MX7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

5MGE..MX7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

5MGE..MX7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

5MGE..MX7#

 2
17448 - BAFFLE, TAIL PIPE
17406-70020

5MGE..MX7#

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

5MGE..MX7#

FRONT

 1
90917-06012

5MGE..MX7#

REAR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

5MGE..MX7#

FRONT

 1
90917-06012

5MGE..MX7#

REAR

 1
Common parts
90105-10018
90105-10023
90119-08507
90179-08046
91611-60818
91631-60822
91651-40814
91651-60830
91655-41030
91656-40830
91666-60825
94180-41000
