MX73L-XEMGFA (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1987
Engine
5MGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

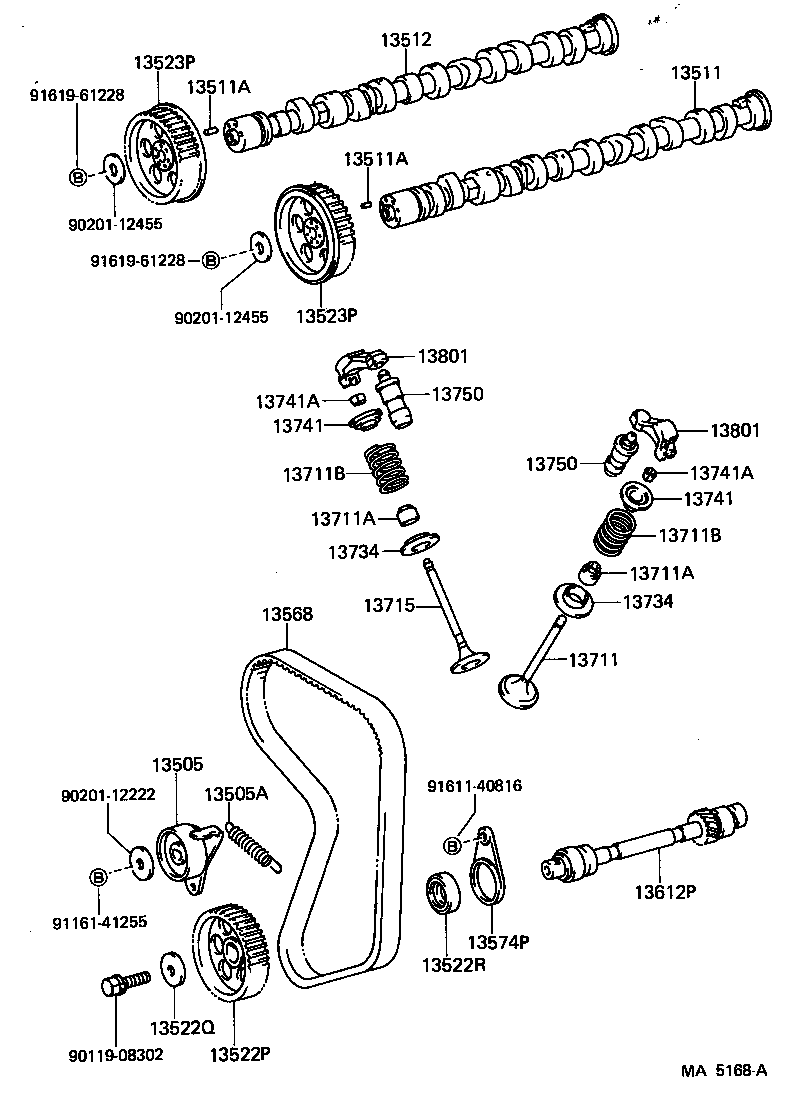

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-43010 |
5MGE..MX7# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-18008 |
5MGE..MX7# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-43010 |
5MGE..MX7# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
5MGE..MX7# L=15,OD=5 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
5MGE..MX7# L=15,OD=5 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-43010 |
5MGE..MX7# |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-43020 |
5MGE..MX7# |
1 | ||
| 13522Q - WASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90201-08020 |
5MGE..MX7# |
1 | ||
| 13522R - COLLAR(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90387-26001 |
5MGE..MX7# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-43040 |
5MGE..MX7# |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-43040 |
5MGE..MX7# |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-43030 |
5MGE..MX7# |
1 | ||
| 13574P - PLATE, PUMP DRIVE SHAFT THRUST | ||||
| 13574-41010 |
5MGE..MX7# |
1 | ||
| 13612P - SHAFT, PUMP DRIVE | ||||
| 13612-42010 |
5MGE..MX7# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-43030 |
5MGE..MX7# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
5MGE..MX7# |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
5MGE..MX7# |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45020 |
5MGE..MX7# EXHAUST |
6 | ||
| 90501-45017 |
5MGE..MX7# INTAKE |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45020 |
5MGE..MX7# EXHAUST |
6 | ||
| 90501-45017 |
5MGE..MX7# INTAKE |
6 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-43010 |
5MGE..MX7# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-43010 |
5MGE..MX7# |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-43010 |
5MGE..MX7# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE..MX7# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE..MX7# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5MGE..MX7# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5MGE..MX7# |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70010 |
5MGE..MX7# |
12 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70010 |
5MGE..MX7# |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43010 |
5MGE..MX7# |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43010 |
5MGE..MX7# |
12 | ||
| Common parts | ||||
| 90119-08302 | ||||
| 90201-12222 | ||||
| 90201-12455 | ||||
| 91161-41255 | ||||
| 91611-40816 | ||||
| 91619-61228 | ||||
