MX72LG-XWPGFK (1984)
Toyota Cressida
Production
Nov 1984
-
Aug 1986
Engine
5MGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8502- )

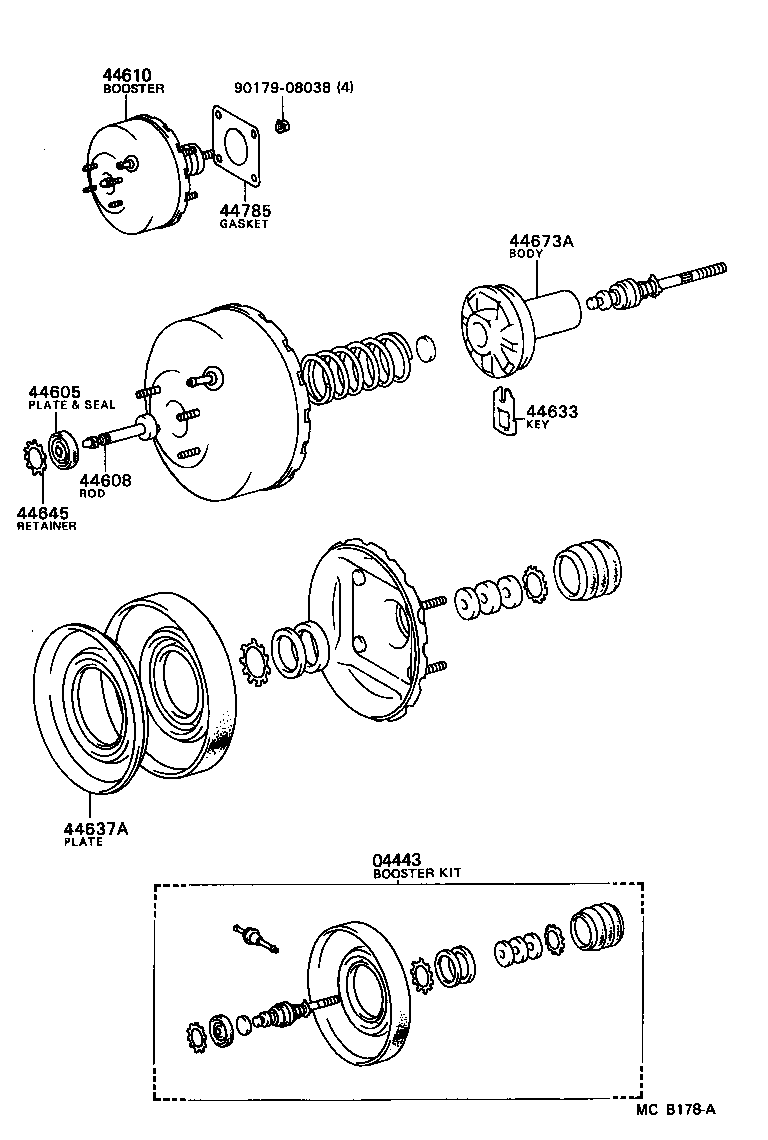

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20360 |
MX7# JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
MX7# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22530 |
MX7# JKC,9INCH |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
MX7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8408-8502)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20360 |
MX7# JKC |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
MX7# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
MX7# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22530 |
MX7# JKC,9INCH |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
MX7# |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
MX7# |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
MX7# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
MX7# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
MX7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
