MX72LG-XWPGFA (1984)
Toyota Cressida
Production
Nov 1984
-
Aug 1987
Engine
5MGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

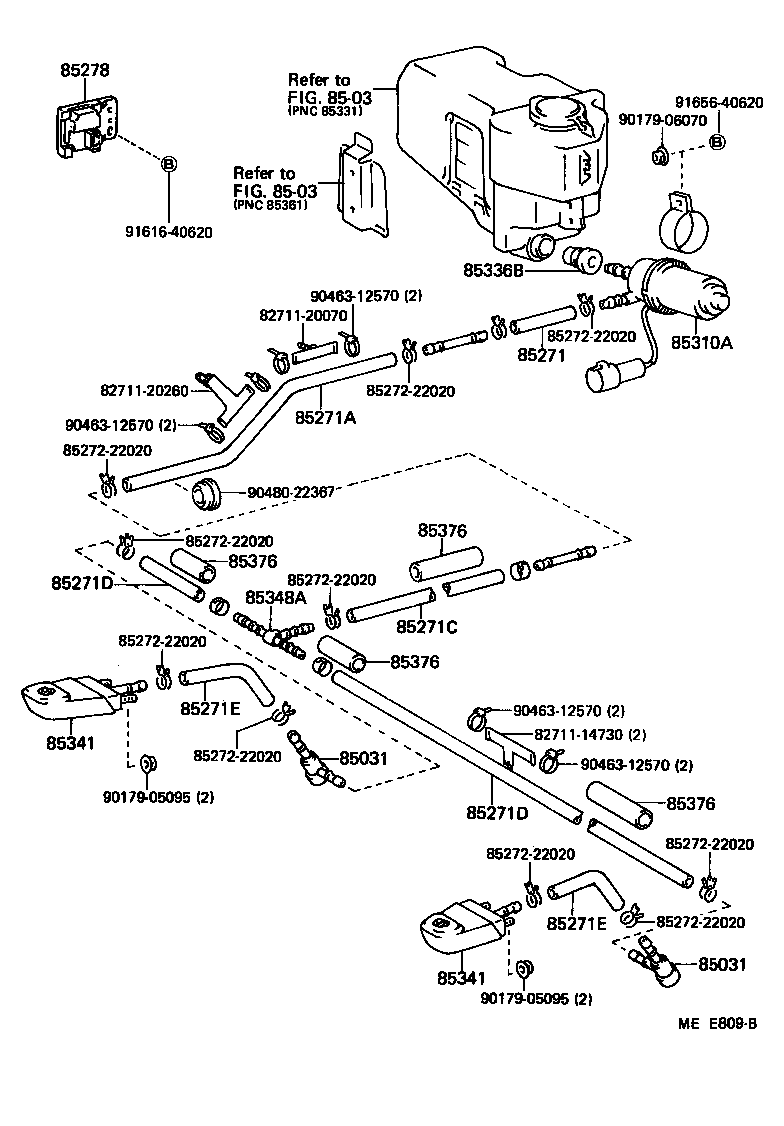

(8408-8608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
MX7# |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
MX7# |
2 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-20190 |
MX7# L=90 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85375-22080 |
MX7# |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85375-22150 |
MX7# L=300 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90445-14037 |
MX7# *H,L=940 |
1 | ||
| 90445-14055 |
MX7# *H,L=60 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90445-14037 |
MX7# *H,L=940 |
1 | ||
| 90445-14055 |
MX7# *H,L=60 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85271-22020 |
MX7# |
2 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85271-22020 |
MX7# |
2 | ||
| 85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-22070 |
MX7# |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85310-22100 |
MX7# |
1 | ||
| 85336B - PACKING, HEADLAMP CLEANER WASHER | ||||
| 85336-10010 |
MX7# |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22130 |
MX7# |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22130 |
MX7# |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
MX7# |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85377-22150 |
MX7# L=200 |
1 | ||
| 85376-22150 |
MX7# L=70 |
1 | ||
| 85376-22140 |
MX7# L=120 |
1 | ||
| 85378-22150 |
MX7# L=30 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85377-22150 |
MX7# L=200 |
1 | ||
| 85376-22150 |
MX7# L=70 |
1 | ||
| 85376-22140 |
MX7# L=120 |
1 | ||
| 85378-22150 |
MX7# L=30 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85377-22150 |
MX7# L=200 |
1 | ||
| 85376-22150 |
MX7# L=70 |
1 | ||
| 85376-22140 |
MX7# L=120 |
1 | ||
| 85378-22150 |
MX7# L=30 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85377-22150 |
MX7# L=200 |
1 | ||
| 85376-22150 |
MX7# L=70 |
1 | ||
| 85376-22140 |
MX7# L=120 |
1 | ||
| 85378-22150 |
MX7# L=30 |
1 | ||
| Common parts | ||||
| 82711-14730 | ||||
| 82711-20070 | ||||
| 82711-20260 | ||||
| 85272-22020 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90463-12570 | ||||
| 90480-22367 | ||||
| 91616-40620 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8503 | ||||

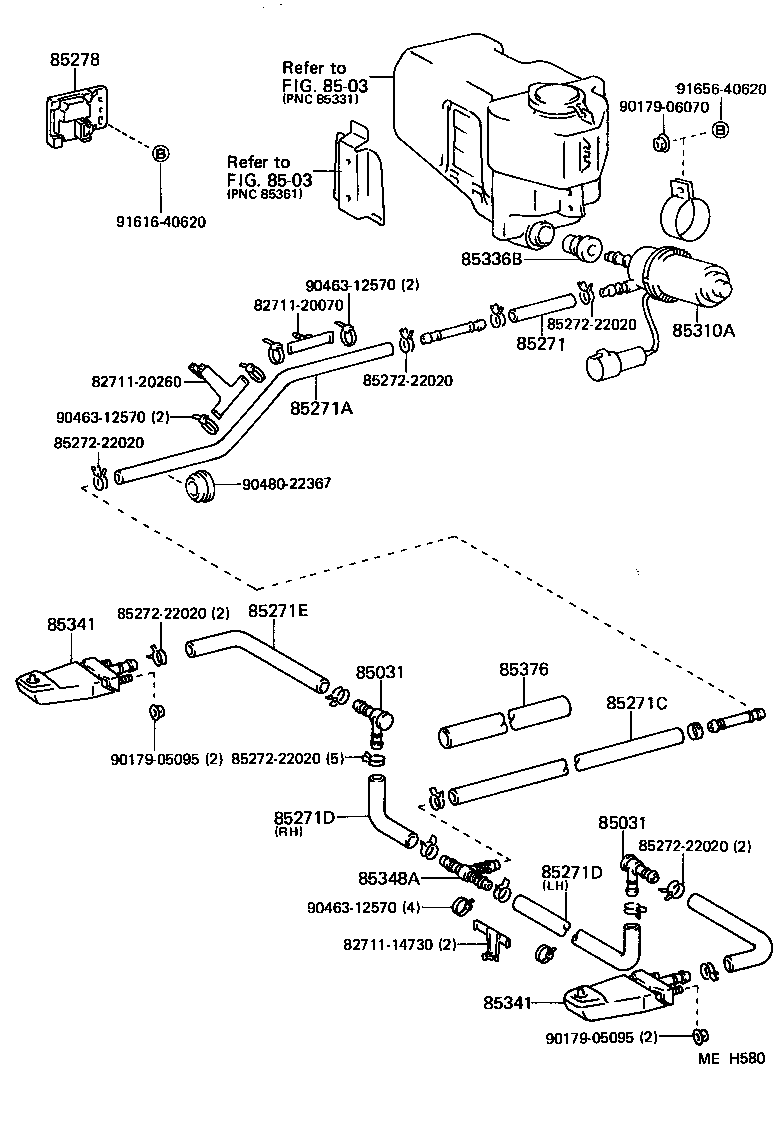

(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
MX7# |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
MX7# |
2 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-20190 |
MX7# L=90 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85375-22080 |
MX7# |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85375-22150 |
MX7# L=300 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90445-14037 |
MX7# *H,L=940 |
1 | ||
| 90445-14055 |
MX7# *H,L=60 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90445-14037 |
MX7# *H,L=940 |
1 | ||
| 90445-14055 |
MX7# *H,L=60 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85271-22020 |
MX7# |
2 | ||
| 85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-22070 |
MX7# |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85310-22100 |
MX7# |
1 | ||
| 85336B - PACKING, HEADLAMP CLEANER WASHER | ||||
| 85336-10010 |
MX7# |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22130 |
MX7# |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22130 |
MX7# |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
MX7# |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85377-22150 |
MX7# L=200 |
1 | ||
| 85376-22150 |
MX7# L=70 |
1 | ||
| 85376-22140 |
MX7# L=120 |
1 | ||
| 85378-22150 |
MX7# L=30 |
1 | ||
| Common parts | ||||
| 82711-14730 | ||||
| 82711-20070 | ||||
| 82711-20260 | ||||
| 85272-22020 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90463-12570 | ||||
| 90480-22367 | ||||
| 91616-40620 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8503 | ||||
