MX62LG-XWPMEK (1981)

Toyota Cressida

Production Aug 1981 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

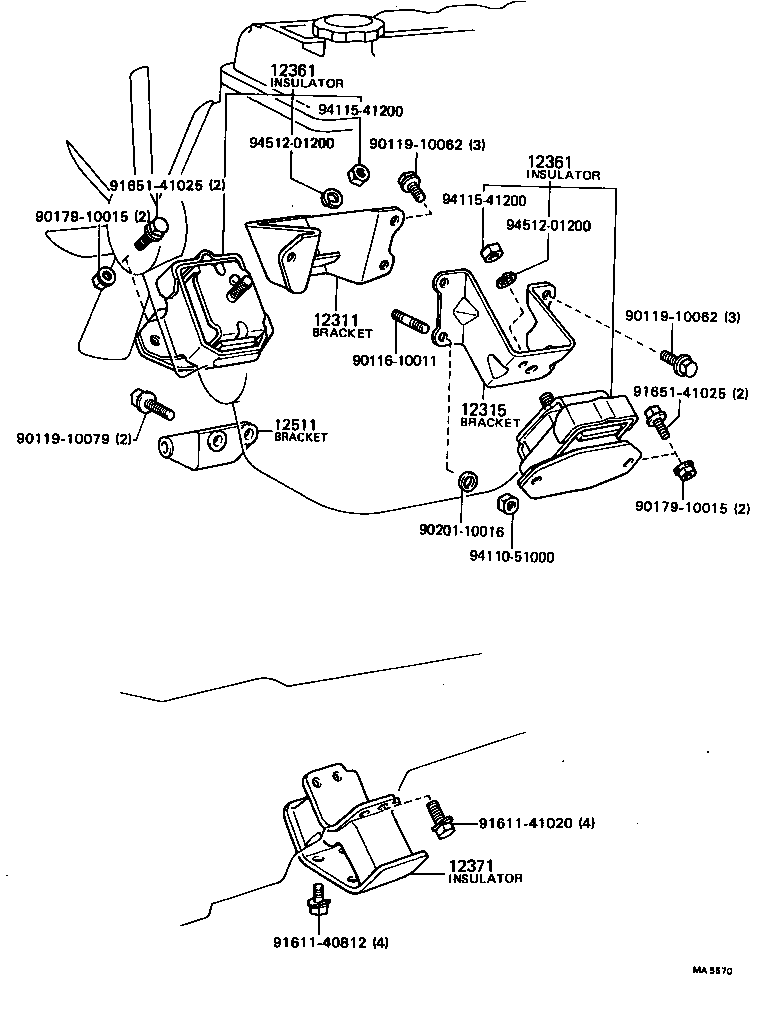

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011610011 9011910062 9011910062 9011910079 9017910015 9017910015 9020110016 9161140812 9161141020 9165141025 9165141025 9411051000 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41051

5M#..MX6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41070

5ME..MX62

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49125

5ME..MX62

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49125

5ME..MX62

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

5M#..MX6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41030

5M#..MX6#

 1
Common parts
90116-10011
90119-10062
90119-10079
90179-10015
90201-10016
91611-40812
91611-41020
91651-41025
94110-51000
94115-41200
94512-01200
