MX62LG-XWPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )WG

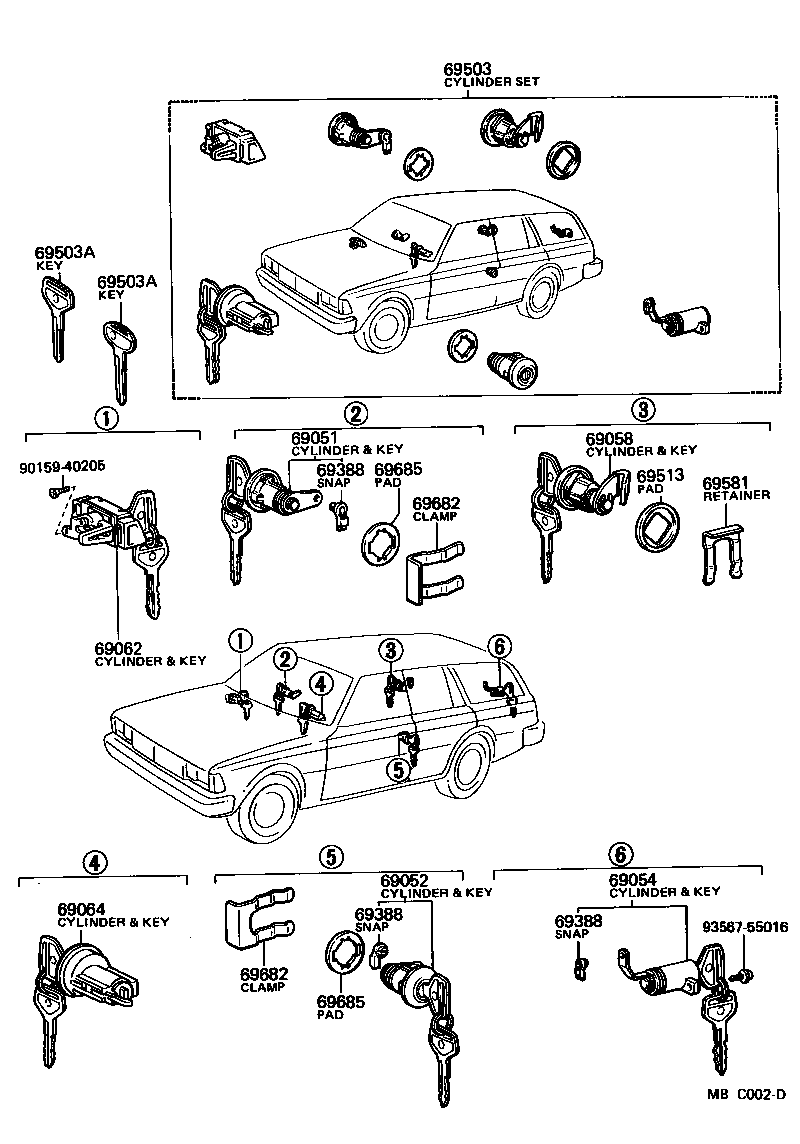

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-29266 |
MX62..WG |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-29266 |
MX62..WG |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-91602 |
MX62..WG |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-29085 |
MX62..WG |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-9160104 |
MX62..WG BLUE,BLUE |
1 | ||
| 69056-2203004 |
MX62 BLUE,BLUE |
1 | ||
| 69056-9160106 |
MX62..WG D-BROWN,BROWN |
1 | ||
| 69056-9160101 |
MX62..WG BLACK,BLACK |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-91600 |
MX62..WG |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-91601 |
MX62..WG BACK DOOR |
1 | ||
| 69759-22020 |
MX62 LH,FR DOOR |
1 | ||
| 69759-22010 |
MX62 RH,FR DOOR |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-91601 |
MX62..WG BACK DOOR |
1 | ||
| 69759-22020 |
MX62 LH,FR DOOR |
1 | ||
| 69759-22010 |
MX62 RH,FR DOOR |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-91601 |
MX62..WG BACK DOOR |
1 | ||
| 69759-22020 |
MX62 LH,FR DOOR |
1 | ||
| 69759-22010 |
MX62 RH,FR DOOR |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-9161004 |
MX62..WG BLUE,BLUE |
1 | ||
| 69005-9161001 |
MX62..WG BLACK,BLACK |
1 | ||
| 69005-2210004 |
MX62 BLUE,BLUE |
1 | ||
| 69005-9161006 |
MX62..WG D-BROWN,BROWN |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00067 |
MX62..WG MASTER KEY,MASTER,W/O PROTECTOR |
2 | ||
| 90999-00071 |
MX62..WG SUB KEY,SUB |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00067 |
MX62..WG MASTER KEY,MASTER,W/O PROTECTOR |
2 | ||
| 90999-00071 |
MX62..WG SUB KEY,SUB |
1 | ||
| 69513 - PAD, FUEL FILLER LID LOCK CYLINDER | ||||
| 69685-12010 |
MX62..WG |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69681-20040 |
MX62..WG |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-20040 |
MX62 |
2 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-20040 |
MX62 |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-12020 |
MX6# |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-12020 |
MX6# |
2 | ||
| Common parts | ||||
| 90159-40205 | ||||
| 93567-55016 | ||||
