MX62L-XEPMEK (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

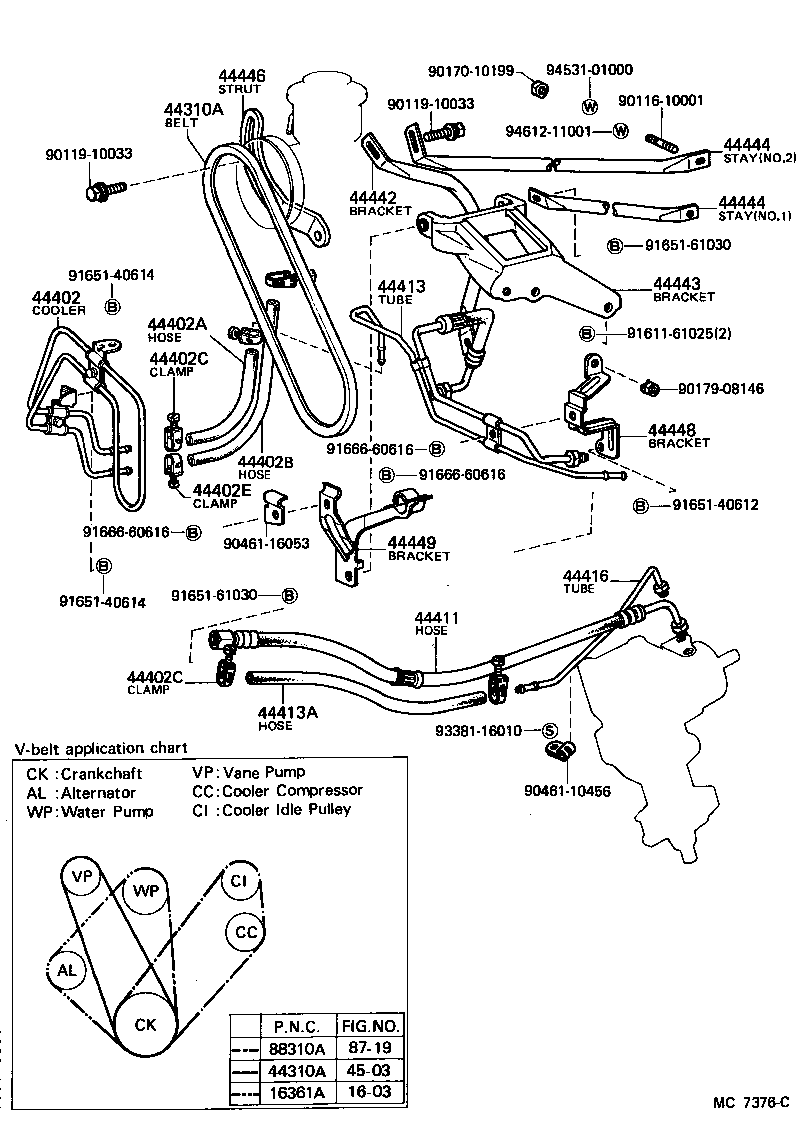

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02085 |
5M#..MX6# DOUBLE V BELTS,L=925 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02088 |
MX62 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02088 |
MX62 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-22060 |
MX62 |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 44412-22030 |
MX62 |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 44412-22030 |
MX62 |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
MX62 |
4 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
MX62 |
4 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
MX6# |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22200 |
MX62 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-22090 |
MX62 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18094 |
MX62 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-22031 |
MX62 |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-22030 |
MX62 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30051 |
MX62 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22030 |
MX62 NO.2 |
1 | ||
| 44444-30061 |
MX62 NO.1 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22030 |
MX62 NO.2 |
1 | ||
| 44444-30061 |
MX62 NO.1 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30040 |
MX62 |
1 | ||
| 44448 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1 | ||||
| 44447-30031 |
MX62 |
1 | ||
| 44449 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2 | ||||
| 44449-30040 |
MX62 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00910 |
MX62 |
1 | ||
| Common parts | ||||
| 90116-10001 | ||||
| 90119-10033 | ||||
| 90170-10199 | ||||
| 90179-08146 | ||||
| 90461-10456 | ||||
| 90461-16053 | ||||
| 91611-61025 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-61030 | ||||
| 91666-60616 | ||||
| 93381-16010 | ||||
| 94531-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
