MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

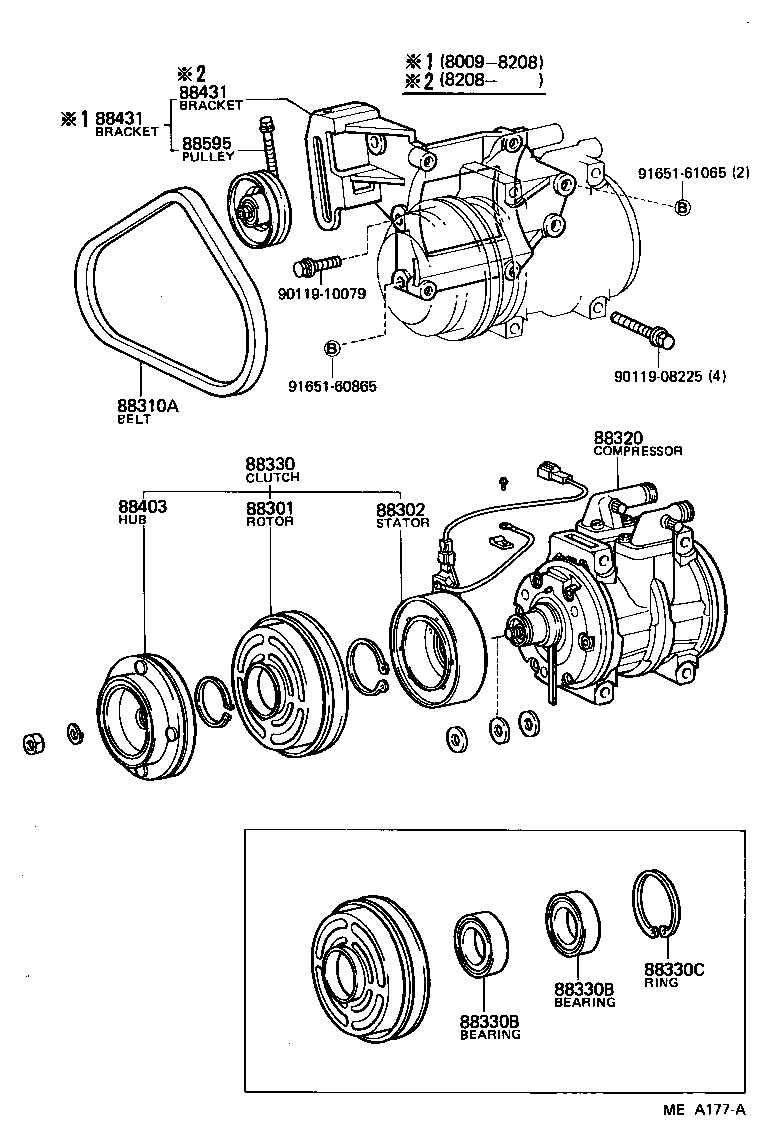

diagram 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88403 88431 88431 88595 9011908225 9011910079 9165160865 9165161065
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-26010

MX62

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22020

MX62

 1

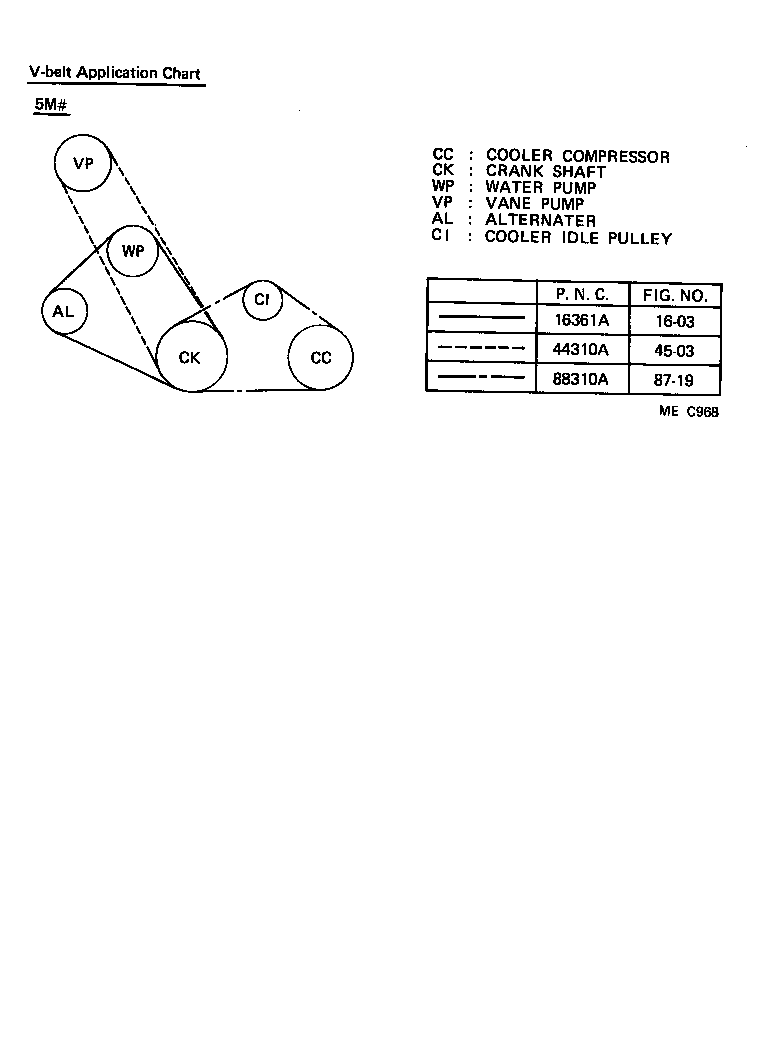

88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-00910

MX62

 1
88320 - COMPRESSOR ASSY, COOLER
88320-22250

MX62

 1
88320-22200

MX62

 1
88330 - CLUTCH ASSY, MAGNET
88410-22030

MX62

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

MX62

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

MX62

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113

MX62

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-22010

MX62

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22160

MX62

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22160

MX62

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

MX6#

 1
Common parts
90119-08225
90119-10079
91651-60865
91651-61065

(8009-8208)

Click highlighted areas on diagram

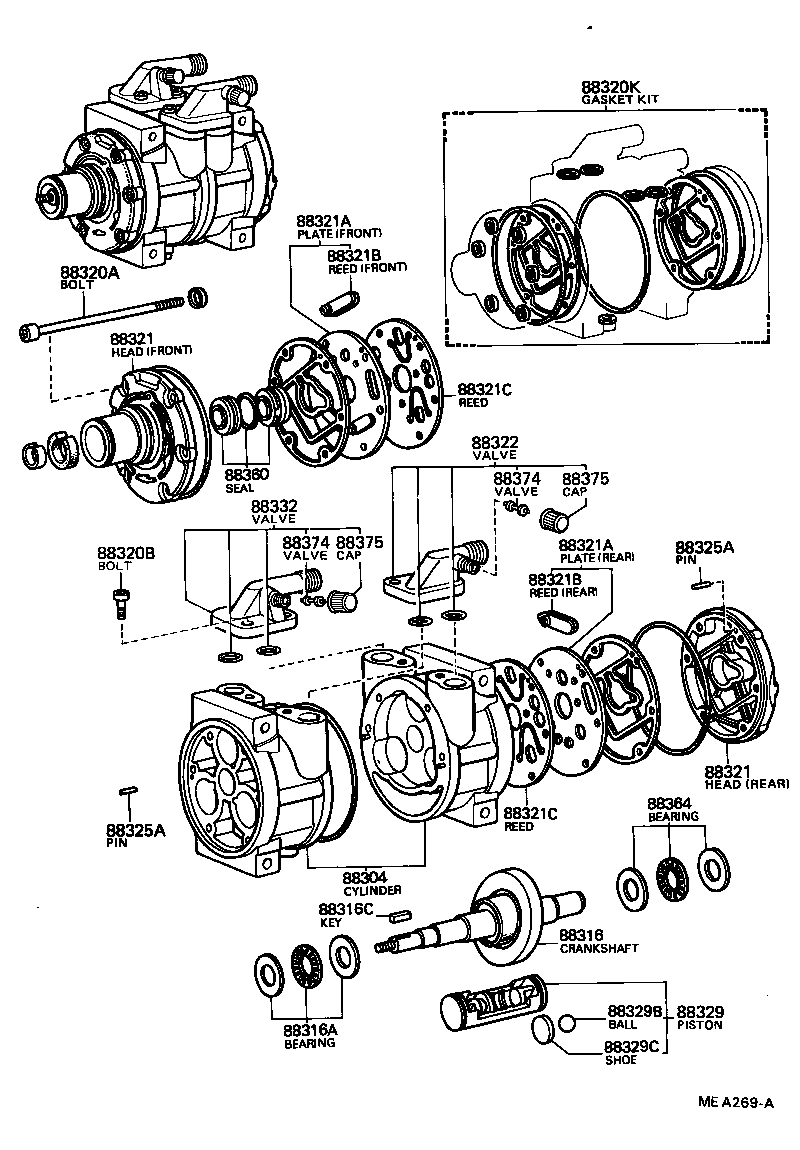

diagram 88304 88316 88316A 88316C 88320A 88320B 88320K 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329B 88329C 88332 88360 88364 88374 88374 88375 88375
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-30300

MX62

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-30270

MX62

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-30261

MX62

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011

MX6#

 1
88320A - BOLT, THROUGH
90099-04911

MX62

 6
88320B - BOLT, SERVICE VALVE
90099-04905

MX6#

 4
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-30040

MX62

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-30280

MX62

RR

 1
88321-30280

MX62

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-30280

MX62

RR

 1
88321-30280

MX62

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88306-30261

MX62

RR

 1
88305-30261

MX62

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88306-30261

MX62

RR

 1
88305-30261

MX62

FR

 1
88321B - REED SUB-ASSY, VALVE
88307-22010

MX62

 6
88321B - REED SUB-ASSY, VALVE
88307-22010

MX62

 6
88321C - REED, SUCTION VALVE
88343-30270

MX62

 2
88321C - REED, SUCTION VALVE
88343-30270

MX62

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-22110

MX62

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

MX6#

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

MX6#

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-30270

MX62

 3
88329B - BALL, PISTON
88312-30250

MX62

 6
88329C - SHOE, PISTON
88313-20070

MX62

 6
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-30300

MX62

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-30270

MX62

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-30261

MX62

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

MX6#

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

MX6#

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

MX6#

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

MX6#

 2

(8009- )

Click highlighted areas on diagram

diagram 1603 16361A 44310A 4503 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02085

5M#..MX6#

DOUBLE V BELTS,L=925

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02088

MX62

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-00910

MX62

 1
Linked diagrams
1603
4503
8719
