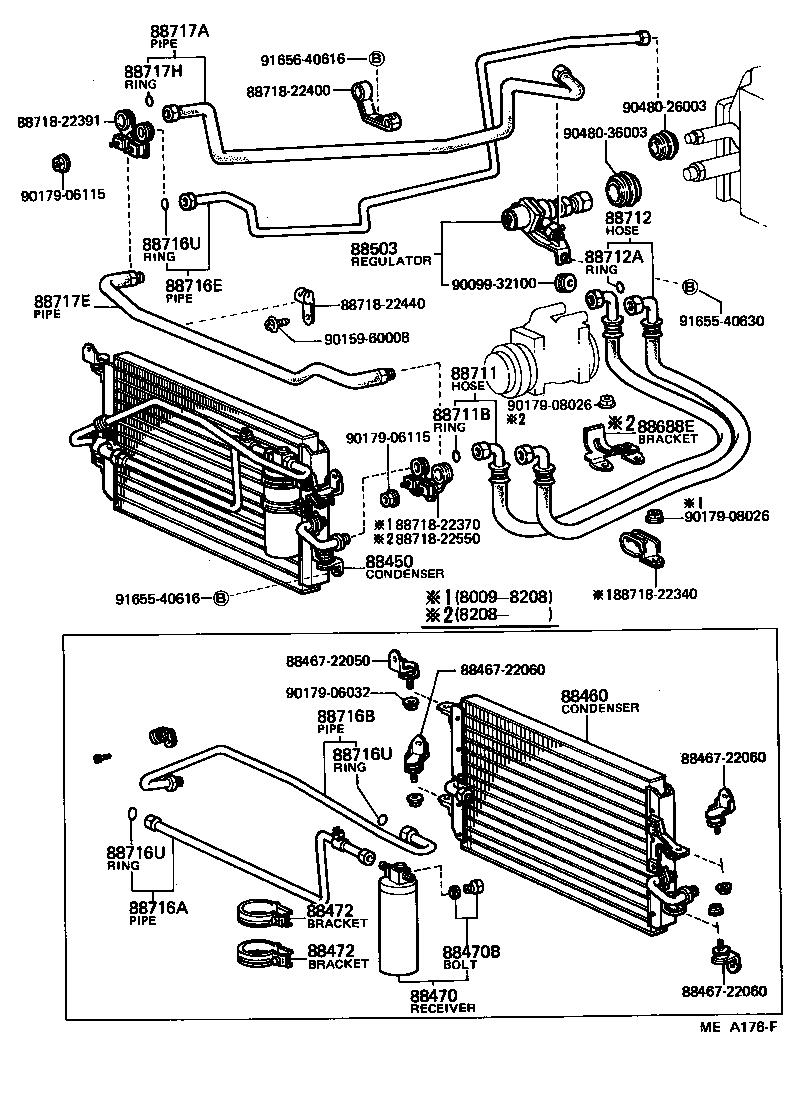

Toyota Cressida MX62 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88460-22180	MX62	09/1980 - 08/1982	1
88460 - CONDENSER ASSY, COOLER
88460-22170	MX62	09/1980 - 08/1982	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	MX6#	09/1980 - 07/1984	1
88470B - BOLT, FUSE
90099-04579	MX6#	09/1980 - 07/1984	1
88503 - REGULATOR ASSY, PRESSURE
88503-22090	MX62	09/1980 - 08/1982	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22220	MX62	09/1980 - 08/1982	1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046	MX6#	09/1980 - 07/1984	2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22260	MX62	09/1980 - 08/1982	1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14045	MX6#	09/1980 - 07/1984	2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22360	MX62	09/1980 - 07/1984	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22380	MX62	09/1980 - 08/1982	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22370	MX62	09/1980 - 08/1982	1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	MX6#	09/1980 - 07/1984	5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	MX6#	09/1980 - 07/1984	5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	MX6#	09/1980 - 07/1984	5
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22180	MX62	09/1980 - 08/1982	1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-22190	MX6#	09/1980 - 07/1984	1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14045	MX6#	09/1980 - 07/1984	2
Common parts
88467-22050
88467-22060
88718-22340
88718-22370
88718-22391
88718-22400
88718-22440
88718-22550
90099-32100
90159-60008
90179-06032
90179-06115
90179-08026
90480-26003
90480-36003
91655-40616
91655-40630
91656-40616

MX62L-XEPMEA (1980)

(8009- )
