MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

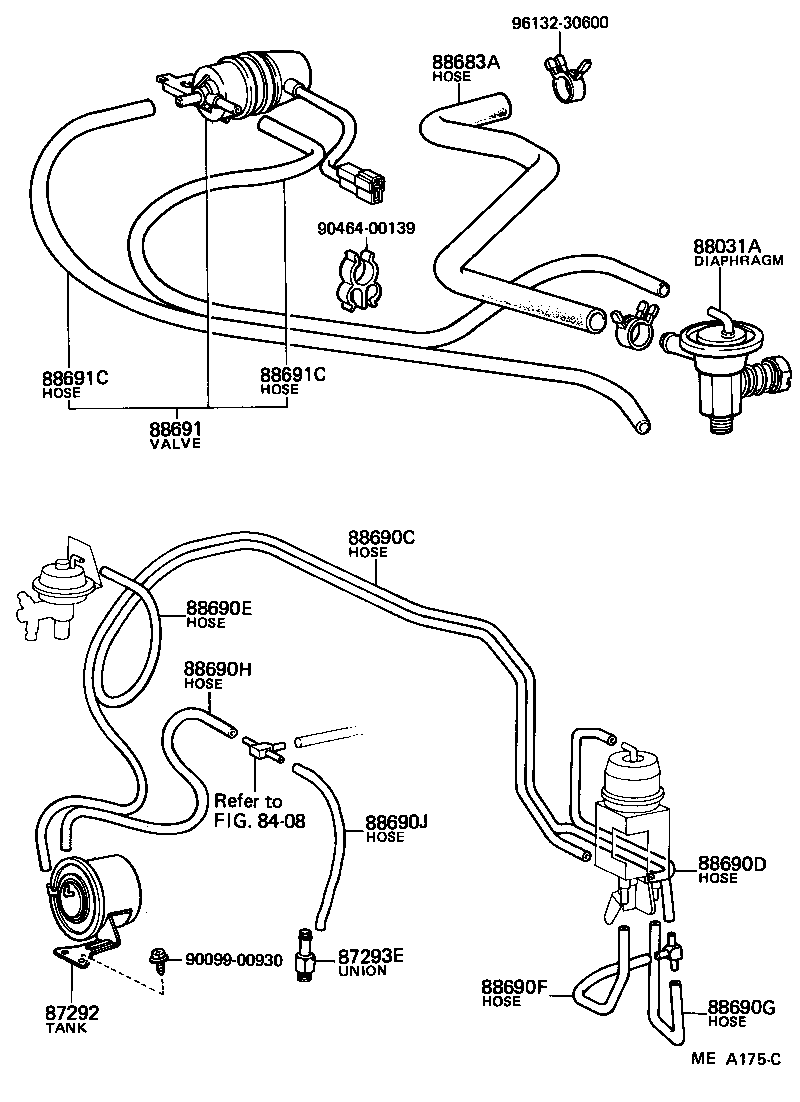

Click highlighted areas on diagram

diagram 8408 87292 87293E 88031A 88683A 88690C 88690D 88690E 88690F 88690G 88690H 88690J 88691 88691C 88691C 9009900930 9046400139 9613230600
Part # Description Qty Price
87292 - TANK, VACUUM
87292-22030

MX6#

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MX62

 1
88683A - HOSE (ENGINE TO MAGNET VALVE)
88689-22020

MX62

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
95411-10295

MX62

*H,L=800,MARK=#2

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
90445-06024

MX62

L=240,MARK=#4

 1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
90445-06023

MX62

L=850,MARK=#3

 1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
90445-06021

MX62

L=160,MARK=#2

 1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
90445-06022

MX62

L=100,MARK=#3

 1
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
95411-10160

MX62

*H,L=540,MARK=#1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MX62

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MX62

*H,L=330,MARK=#0

 1
95411-19960

MX62

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MX62

*H,L=330,MARK=#0

 1
95411-19960

MX62

*H,L=330,MARK=#*

 1
Common parts
90099-00930
90464-00139
96132-30600
Linked diagrams
8408
