MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

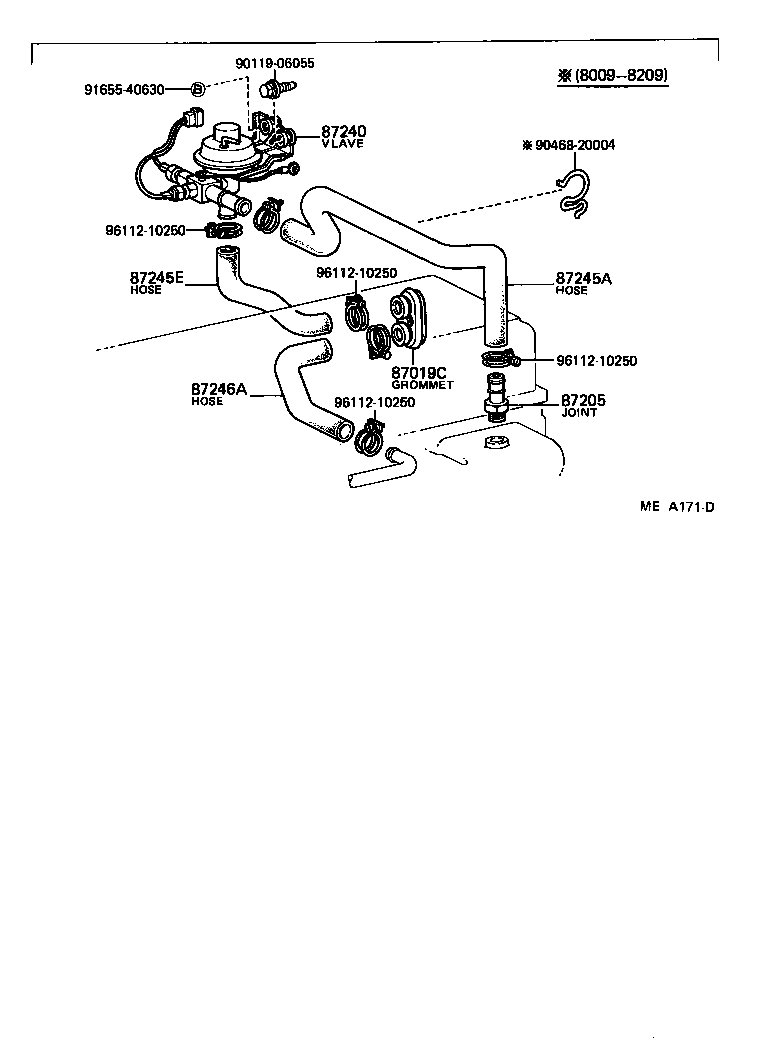

Click highlighted areas on diagram

diagram 87019C 87205 87240 87245A 87245E 87246A 9011906055 9046820004 9165540630 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01078

MX6#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

MX6#

 1
87240 - VALVE ASSY, HEATER WATER
87240-22170

MX6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22430

MX62

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22280

MX62

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22290

MX6#

 1
Common parts
90119-06055
90468-20004
91655-40630
96112-10250
