MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

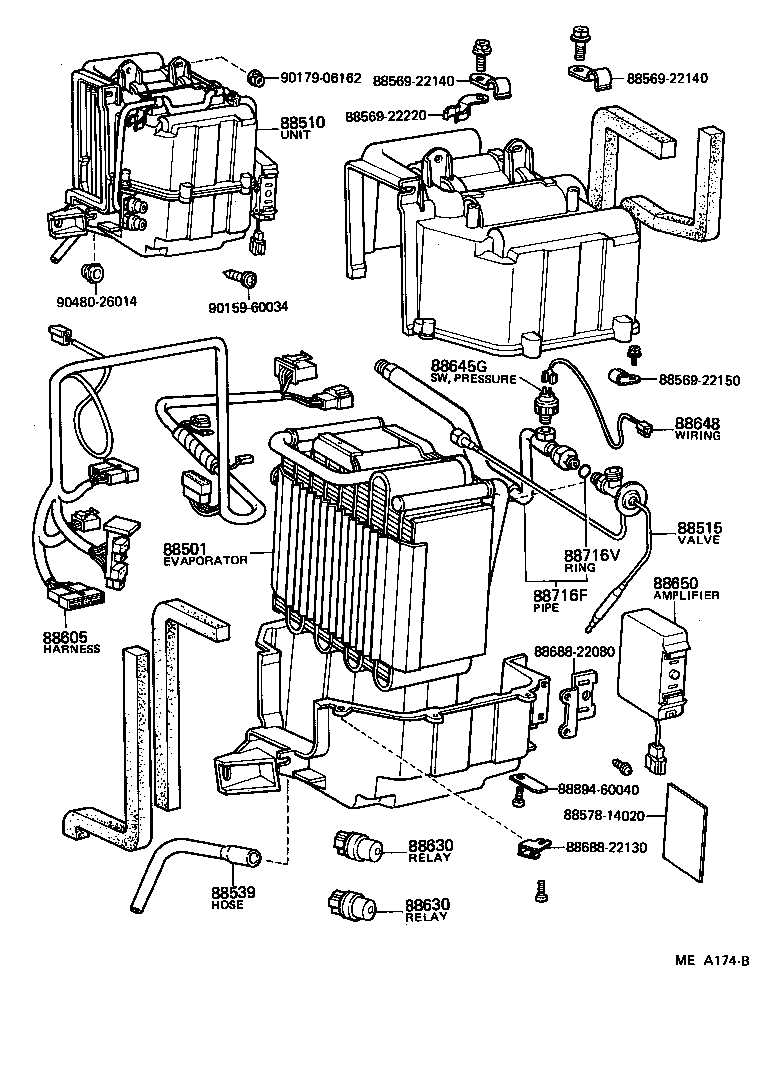

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22140 |
MX6# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-22190 |
MX62 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22070 |
MX6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22080 |
MX6# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22210 |
MX62 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MX6# |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MX6# |
2 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
MX6# DENSO |
1 | ||
| 88645-22020 |
MX6# TOKAIRIKA |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-22060 |
MX62 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22090 |
MX62 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-22390 |
MX62 |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 90099-14044 |
MX6# |
1 | ||
| Common parts | ||||
| 88569-22140 | ||||
| 88569-22150 | ||||
| 88569-22220 | ||||
| 88578-14020 | ||||
| 88688-22080 | ||||
| 88688-22130 | ||||
| 88894-60040 | ||||
| 90159-60034 | ||||
| 90179-06162 | ||||
| 90480-26014 | ||||
