MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

diagram 87019A 87019A 87107 87116 8715 87150 8717 8717 8717 8717 87660 8856922140 8856922210 88690B 9017906162 9017906162
Part # Description Qty Price
87019A - ATTACHMENT, HEATER
87019-32010

MX6#

 2
87019A - ATTACHMENT, HEATER
87019-32010

MX6#

 2
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22100

MX6#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MX6#

 6
87150 - RADIATOR ASSY, HEATER
87150-22111

MX6#

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22060

MX6#

 1
88690B - VALVE ASSY, COOLER MAGNET
88690-22220

MX6#

 1
Common parts
88569-22140
88569-22210
90179-06162
Linked diagrams
8715
8717

(8009- )

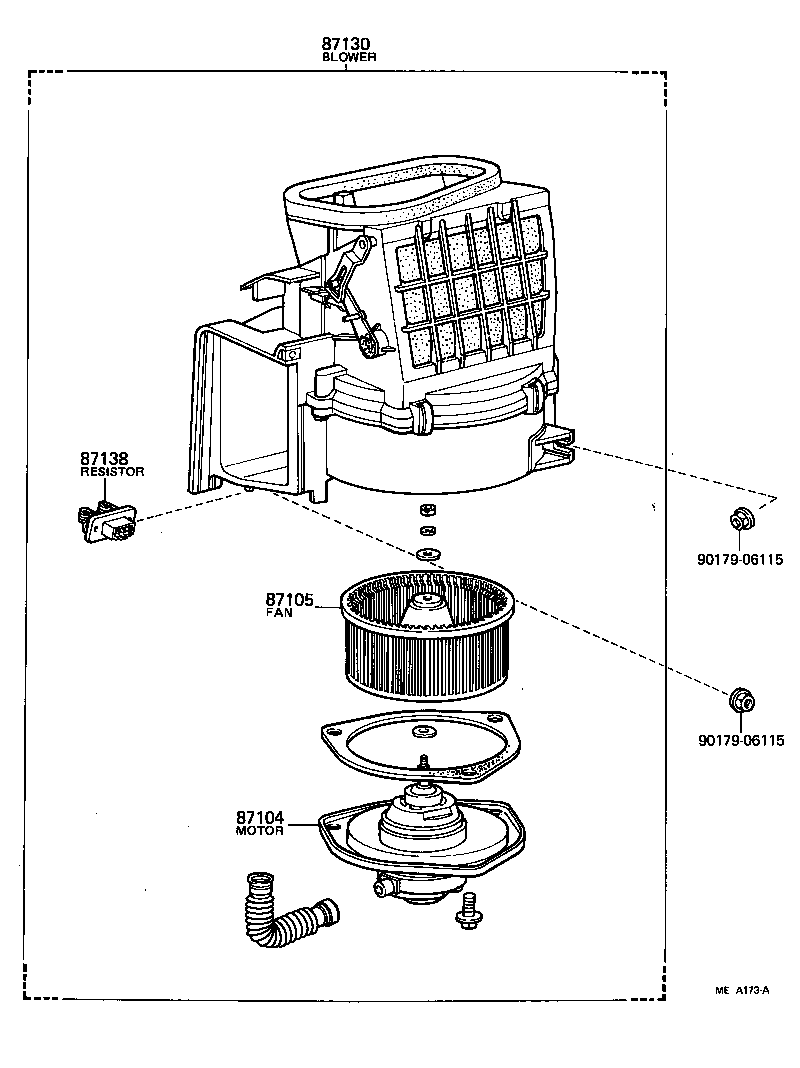

Click highlighted areas on diagram

diagram 87104 87105 87130 87138 9017906115 9017906115
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22110

MX6#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020

MX6#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22070

MX6#

 1
87138 - RESISTOR, HEATER BLOWER
88635-22020

MX6#

 1
Common parts
90179-06115
