MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 9015950016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2217001

MX62

BLACK,BLACK

 1
87810-2217006

MX6#

DARK BROWN,BROWN

 1
87810-2217004

MX62

BLUE,BLUE

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

MX6#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-23010

MX6#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008004

MX62

BLUE,BLUE

 1
87834-2008008

MX6#

IVORY,IVORY

 1
Common parts
90159-50016

(8009-8208)

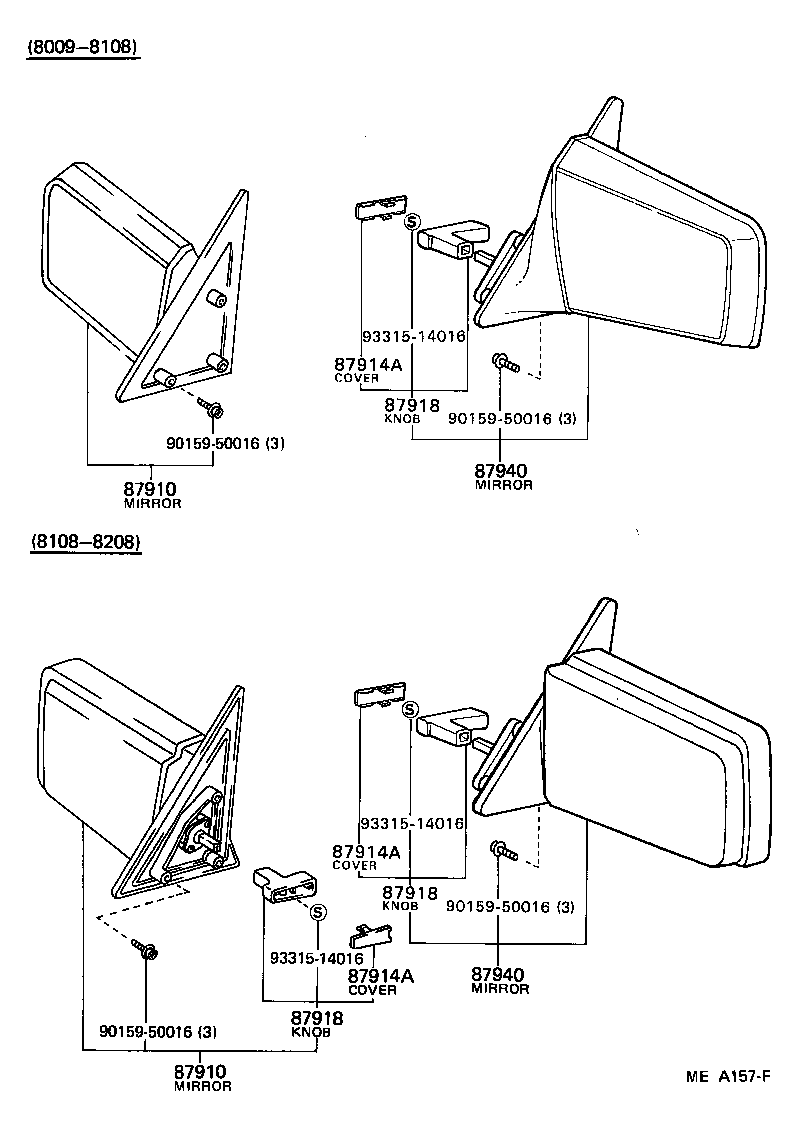

Click highlighted areas on diagram

diagram 87910 87910 87914A 87914A 87914A 87918 87918 87918 87940 87940 9015950016 9015950016 9015950016 9015950016 9331514016 9331514016 9331514016
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29615

MX62

 1
87910-22260

MX62

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29615

MX62

 1
87910-22260

MX62

 1
87914A - COVER, OUTER MIRROR KNOB
87914-30010

MX62

 1
87914-14010

MX62

 2
87914A - COVER, OUTER MIRROR KNOB
87914-30010

MX62

 1
87914-14010

MX62

 2
87914A - COVER, OUTER MIRROR KNOB
87914-30010

MX62

 1
87914-14010

MX62

 2
87918 - KNOB, CONTROL OUTER MIRROR
87918-39015

MX62

 1
87918-19015

MX62

 2
87918 - KNOB, CONTROL OUTER MIRROR
87918-39015

MX62

 1
87918-19015

MX62

 2
87918 - KNOB, CONTROL OUTER MIRROR
87918-39015

MX62

 1
87918-19015

MX62

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-22310

MX62

 1
87940-29685

MX62

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-22310

MX62

 1
87940-29685

MX62

 1
Common parts
90159-50016
93315-14016
