MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )SED

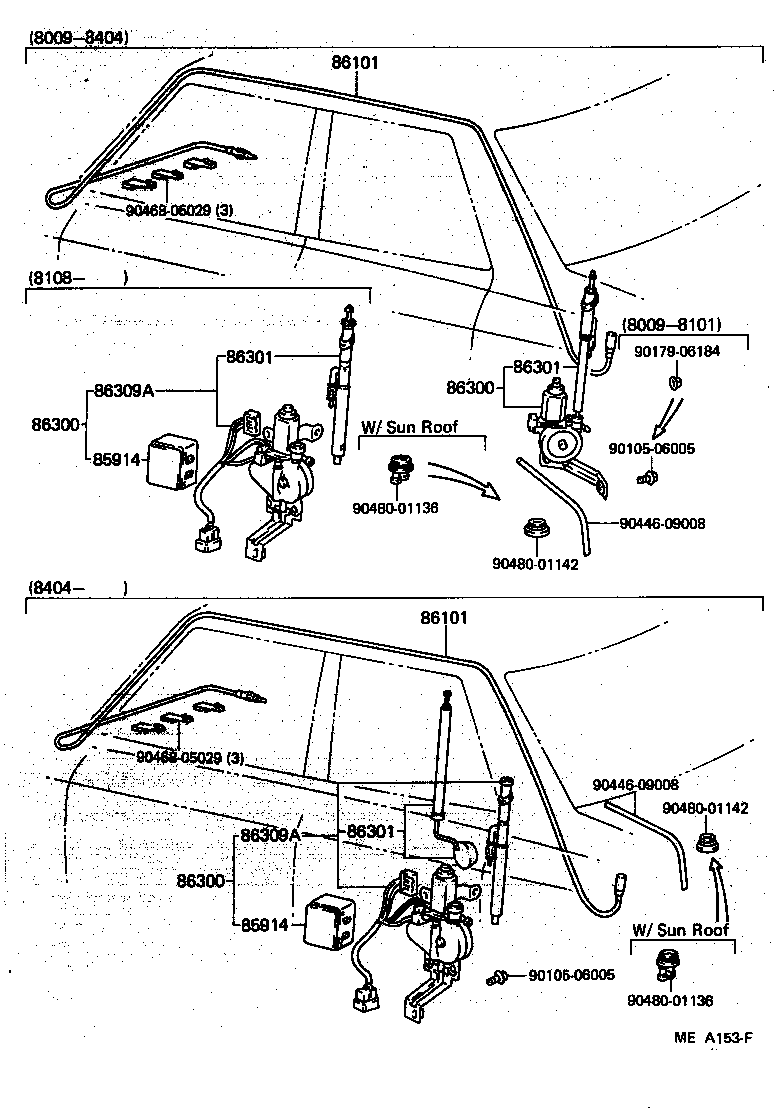

Click highlighted areas on diagram

diagram 85914 85914 86101 86101 86300 86300 86300 86301 86301 86301 86309A 86309A 9010506005 9010506005 9017906184 9044609008 9044609008 9046805029 9046805029 9048001136 9048001136 9048001142 9048001142
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-22130

MX6#..SED

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-22130

MX6#..SED

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22150

MX62..SED

 1
86300-22180

MX62..SED

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22150

MX62..SED

 1
86300-22180

MX62..SED

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22150

MX62..SED

 1
86300-22180

MX62..SED

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-22150

MX62..SED

 1
86301-22180

MX62..SED

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-22150

MX62..SED

 1
86301-22180

MX62..SED

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-22150

MX62..SED

 1
86301-22180

MX62..SED

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-22040

MX62..SED

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-22040

MX62..SED

 1
Common parts
90105-06005
90179-06184
90446-09008
90468-05029
90480-01136
90480-01142
