MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

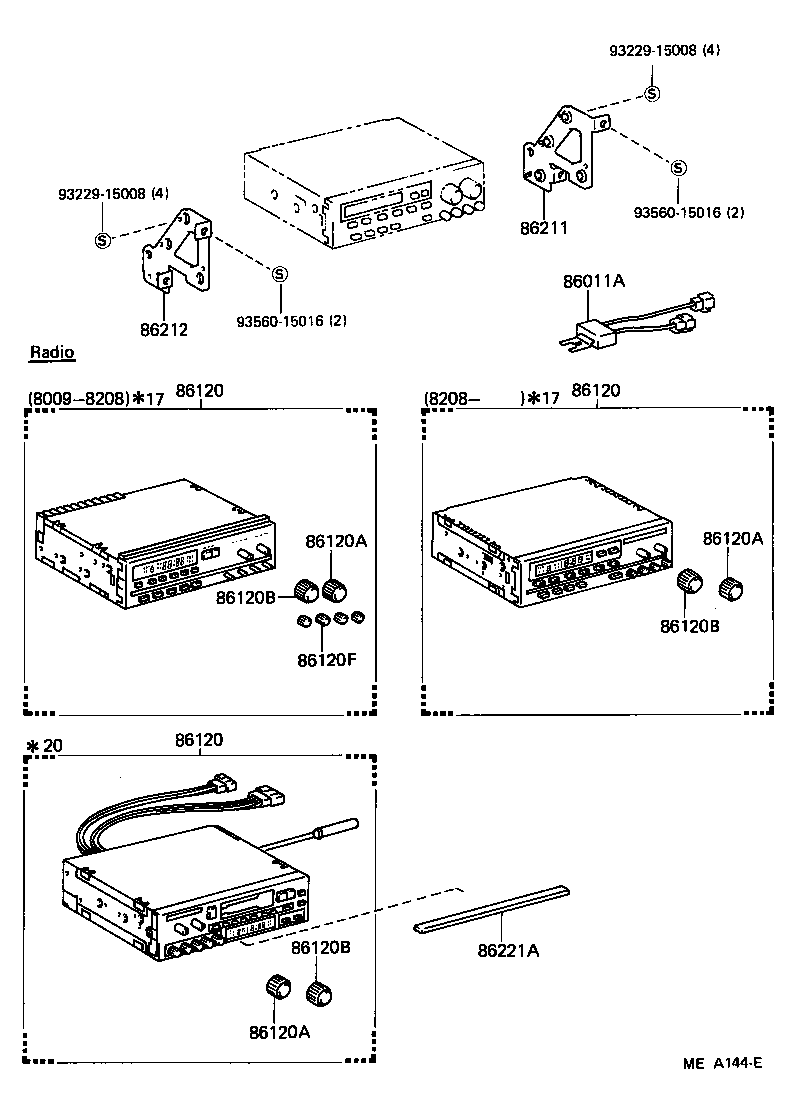

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04036 |
MX6# |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-22370 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22290 |
MX62 *17 |
1 | ||
| 86120-22300 |
MX62 *20 |
1 | ||
| 86120-22430 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22420 |
MX62 *20 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-22370 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22290 |
MX62 *17 |
1 | ||
| 86120-22300 |
MX62 *20 |
1 | ||
| 86120-22430 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22420 |
MX62 *20 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-22370 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22290 |
MX62 *17 |
1 | ||
| 86120-22300 |
MX62 *20 |
1 | ||
| 86120-22430 |
MX62..USA *20,GUAM,SAIPAN,SAMOA SPEC |
1 | ||
| 86120-22420 |
MX62 *20 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-22010 |
MX62 *20 |
1 | ||
| 86128-22010 |
MX62 *17 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-22010 |
MX62 *20 |
1 | ||
| 86128-22010 |
MX62 *17 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-22010 |
MX62 *20 |
1 | ||
| 86128-22010 |
MX62 *17 |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-22130 |
MX6# *20 |
1 | ||
| 86128-22090 |
MX6# *17 |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-22130 |
MX6# *20 |
1 | ||
| 86128-22090 |
MX6# *17 |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-22130 |
MX6# *20 |
1 | ||
| 86128-22090 |
MX6# *17 |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-22150 |
MX62 *17 |
4 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-22050 |
MX62..USA *17 |
1 | ||
| 86211-22050 |
MX62..USA |
1 | ||
| 86211-22090 |
MX62..USA *20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-22030 |
MX62..USA |
1 | ||
| 86212-22030 |
MX62..USA *17 |
1 | ||
| 86212-22070 |
MX62..USA *20 |
1 | ||
| Common parts | ||||
| 93229-15008 | ||||
| 93560-15016 | ||||
(8009- )

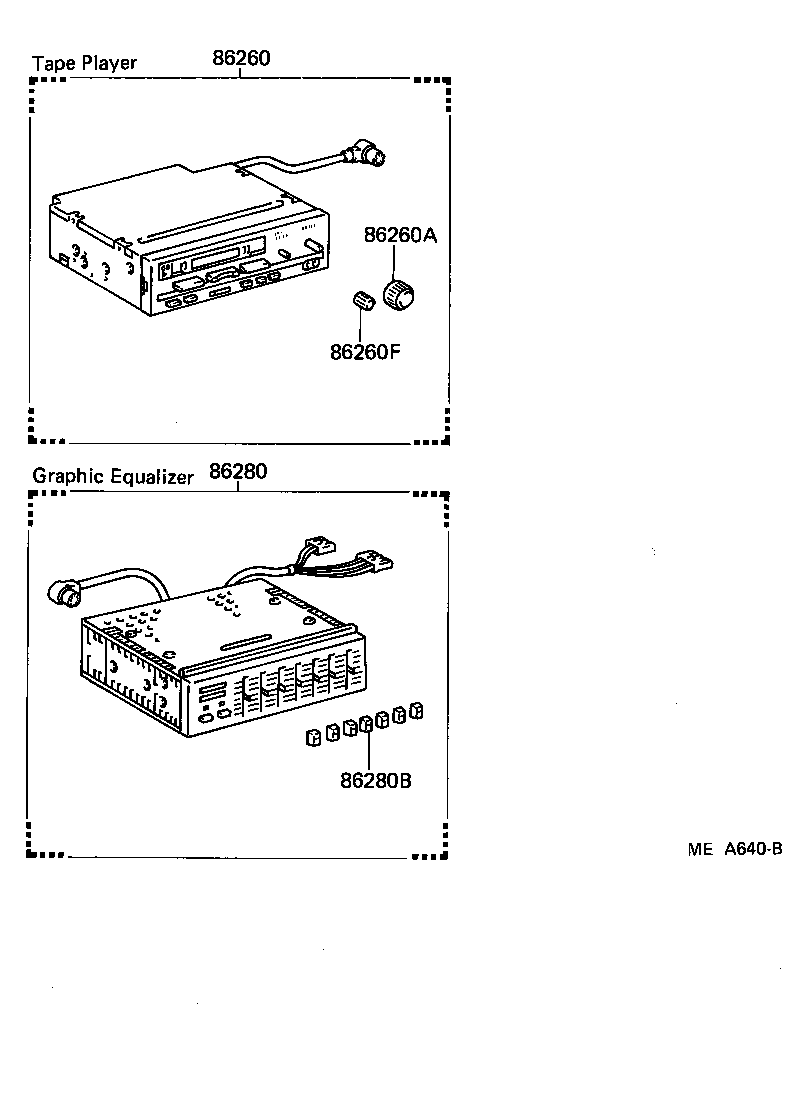

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-22111 |
MX62 |
1 | ||
| 86260A - KNOB, TAPE PLAYER VOLUME | ||||
| 86128-22010 |
MX62 |
1 | ||
| 86260F - KNOB, TAPE PLAYER MICROPHONE VOLUME | ||||
| 86128-22190 |
MX62 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-29015 |
MX62 |
1 | ||
| 86280B - KNOB, AMPLIFIER GRAPHIC EQUALIZER | ||||
| 86128-22170 |
MX62 |
7 | ||
