MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

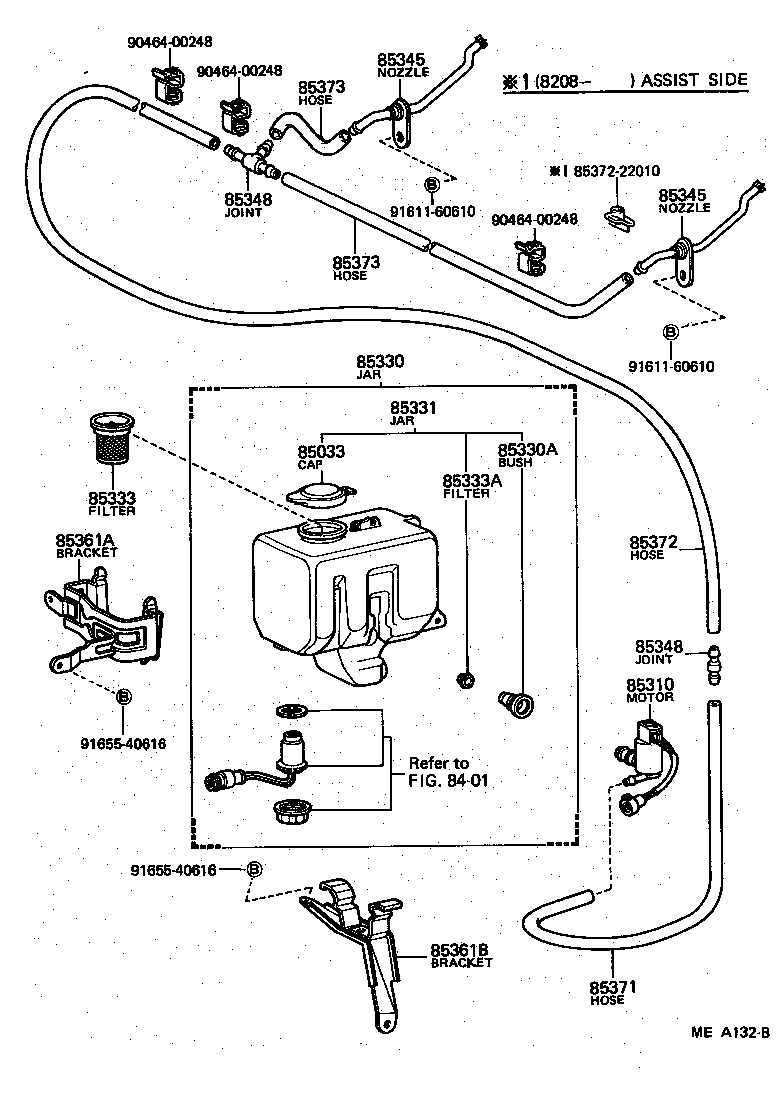

Click highlighted areas on diagram

diagram 8401 85033 85310 85330 85330A 85331 85333 85333A 85345 85345 85348 85348 85361A 85361B 85371 85372 8537222010 85373 85373 9046400248 9046400248 9046400248 9161160610 9161160610 9165540616 9165540616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20060

MX6#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20130

MX62

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-22160

MX62

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

MX62

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22040

MX62

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

MX6#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

MX62

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-22140

MX62

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22140

MX62

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-20010

MX62

2 WAY

 1
85348-22010

MX62

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-20010

MX62

2 WAY

 1
85348-22010

MX62

3 WAY

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85036-22010

MX6#

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-22180

MX62

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90445-09003

MX62

L=280

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33332

MX62

*H,L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33332

MX62

*H,L=680

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33332

MX62

*H,L=680

 1
Common parts
85372-22010
90464-00248
91611-60610
91655-40616
Linked diagrams
8401
